Coriolis Mass Flow Meters - ATEX Certified

CG range of high performance ATEX approved Coriolis flow meters for Liquids and Gases. Available with flanged, threaded and hygienic connections, in sizes 3mm up to 250mm and flow rates of 0.01 - 2,500,000 kg/hr.

Renowned for their outstanding accuracy and versatility in measuring challenging flow applications, coriolis flow meters have been employed in a wide variety of industries. They can measure multiple process variables from one sensor, including; mass flow, volume flow, temperature, density and pressure, giving an unrivalled measurement result.

A Coriolis flow meter works on the principle that the inertia created by fluid flowing through an oscillating tube causes the tube to twist in proportion to mass flow rate.

Flow Meter Guide

Sort by: Recommended

Drop items here to shop

Product has been added

Checkout

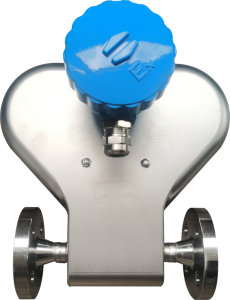

DN3 Coriolis Mass Flow Meter
SKU: CG-03

Max Flow rate 6 Kg/min (20:1 Turndown)
Liquid Accuracy +/- 0.1% (See options)
Gas Accuracy +/- 0.5%
Repeatability +/- 0.05%
Tube Material 316 Stainless Steel
40 Bar Max W.P (Subject to connections)
DN15 Flanges PN40 (See options)
Process Temp -70 to 160 Deg. C (See Options)
Remote Display 24V DC or 85~265V AC, 50/60 Hz
Cable Length 5m (See options)
4-20mA, pulse ,Modbus RTU RS485 (HART optional)

ATEX (Flow Sensor) - II 2G Ex db IIC T6...T1 Gb
ATEX (Transmitter) - II 2G Ex db [ib] IIC T6...T1 Gb

$7476.25
$8971.50 inc VAT

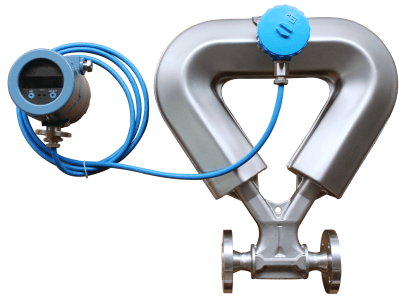

DN6 Coriolis Mass Flow Meter
SKU: CG-06

Max Flow rate 20 Kg/min (20:1 Turndown)
Liquid Accuracy +/- 0.1% (See options)
Gas Accuracy +/- 0.5%
Repeatability +/- 0.05%
Tube Material 316 Stainless Steel
40 Bar Max W.P (Subject to connections)
DN15 Flanges PN40 (See options)
Process Temp -70 to 160 Deg. C (See Options)
Remote Display 24V DC or 85~265V AC, 50/60 Hz
Cable Length 5m (See options)
4-20mA, pulse ,Modbus RTU RS485 (HART optional)

ATEX (Flow Sensor) - II 2G Ex db IIC T6...T1 Gb
ATEX (Transmitter) - II 2G Ex db [ib] IIC T6...T1 Gb

$5508.75
$6610.50 inc VAT
DN15 Coriolis Mass Flow Meter
SKU: CG-15

Max Flow rate 50 Kg/min (20:1 Turndown)
Liquid Accuracy +/- 0.1% (See options)
Gas Accuracy +/- 0.5%
Repeatability +/- 0.05%
Tube Material 316 Stainless Steel
40 Bar Max W.P (Subject to connections)
DN15 Flanges PN40 (See options)
Process Temp -70 to 160 Deg. C (See Options)
Remote Display 24V DC or 85~265V AC, 50/60 Hz
Cable Length 5m (See options)
4-20mA, pulse ,Modbus RTU RS485 (HART optional)

ATEX (Flow Sensor) - II 2G Ex db IIC T6...T1 Gb
ATEX (Transmitter) - II 2G Ex db [ib] IIC T6...T1 Gb

$4543.75
$5452.50 inc VAT
DN20 Coriolis Mass Flow Meter
SKU: CG-20

Max Flow rate 120 Kg/min (20:1 Turndown)
Liquid Accuracy +/- 0.1% (See options)
Gas Accuracy +/- 0.5%
Repeatability +/- 0.05%
Tube Material 316 Stainless Steel
40 Bar Max W.P (Subject to connections)
DN20 Flanges PN40 (See options)
Process Temp -70 to 160 Deg. C (See Options)
Remote Display 24V DC or 85~265V AC, 50/60 Hz
Cable Length 5m (See options)
4-20mA, pulse ,Modbus RTU RS485 (HART optional)

ATEX (Flow Sensor) - II 2G Ex db IIC T6...T1 Gb
ATEX (Transmitter) - II 2G Ex db [ib] IIC T6...T1 Gb

$5541.25
$6649.50 inc VAT
DN25 Coriolis Mass Flow Meter
SKU: CG-25

Max Flow rate 200 Kg/min (20:1 Turndown)
Liquid Accuracy +/- 0.1% (See options)
Gas Accuracy +/- 0.5%
Repeatability +/- 0.05%
Tube Material 316 Stainless Steel
40 Bar Max W.P (Subject to connections)
DN25 Flanges PN40 (See options)
Process Temp -70 to 160 Deg. C (See Options)
Remote Display 24V DC or 85~265V AC, 50/60 Hz
Cable Length 5m (See options)
4-20mA, pulse ,Modbus RTU RS485 (HART optional)

ATEX (Flow Sensor) - II 2G Ex db IIC T6...T1 Gb
ATEX (Transmitter) - II 2G Ex db [ib] IIC T6...T1 Gb

$6718.75
$8062.50 inc VAT

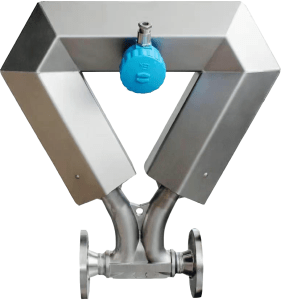

DN40 Coriolis Mass Flow Meter
SKU: CG-40

Max Flow rate 500 Kg/min (20:1 Turndown)
Liquid Accuracy +/- 0.1% (See options)
Gas Accuracy +/- 0.5%
Repeatability +/- 0.05%
Tube Material 316 Stainless Steel
40 Bar Max W.P (Subject to connections)
DN40 Flanges PN40 (See options)
Process Temp -70 to 160 Deg. C (See Options)
Remote Display 24V DC or 85~265V AC, 50/60 Hz
Cable Length 5m (See options)
4-20mA, pulse ,Modbus RTU RS485 (HART optional)

ATEX (Flow Sensor) - II 2G Ex db IIC T6...T1 Gb
ATEX (Transmitter) - II 2G Ex db [ib] IIC T6...T1 Gb

$7303.75
$8764.50 inc VAT

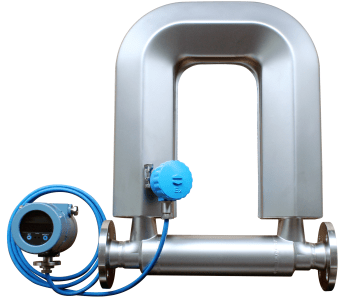

DN50 Coriolis Mass Flow Meter
SKU: CG-50

Max Flow rate 1000 Kg/min (20:1 Turndown)
Liquid Accuracy +/- 0.1% (See options)
Gas Accuracy +/- 0.5%
Repeatability +/- 0.05%
Tube Material 316 Stainless Steel
40 Bar Max W.P (Subject to connections)
DN50 Flanges PN40 (See options)
Process Temp -70 to 160 Deg. C (See Options)
Remote Display 24V DC or 85~265V AC, 50/60 Hz
Cable Length 5m (See options)
4-20mA, pulse ,Modbus RTU RS485 (HART optional)

ATEX (Flow Sensor) - II 2G Ex db IIC T6...T1 Gb
ATEX (Transmitter) - II 2G Ex db [ib] IIC T6...T1 Gb

$9066.25
$10879.50 inc VAT
DN80 Coriolis Mass Flow Meter
SKU: CG-80

Max Flow rate 3000 Kg/min (20:1 Turndown)
Liquid Accuracy +/- 0.1% (See options)
Gas Accuracy +/- 0.5%
Repeatability +/- 0.05%
Tube Material 316 Stainless Steel
40 Bar Max W.P (Subject to connections)
DN80 Flanges PN40 (See options)
Process Temp -70 to 160 Deg. C (See Options)
Remote Display 24V DC or 85~265V AC, 50/60 Hz
Cable Length 5m (See options)
4-20mA, pulse ,Modbus RTU RS485 (HART optional)

ATEX (Flow Sensor) - II 2G Ex db IIC T6...T1 Gb
ATEX (Transmitter) - II 2G Ex db [ib] IIC T6...T1 Gb

$11371.25
$13645.50 inc VAT
DN100 Coriolis Mass Flow Meter
SKU: CG-100

Max Flow rate 5000 Kg/min (20:1 Turndown)
Liquid Accuracy +/- 0.1% (See options)
Gas Accuracy +/- 0.5%
Repeatability +/- 0.05%
Tube Material 316 Stainless Steel
40 Bar Max W.P (Subject to connections)
DN100 Flanges PN40 (See options)
Process Temp -70 to 160 Deg. C (See Options)
Remote Display 24V DC or 85~265V AC, 50/60 Hz
Cable Length 5m (See options)
4-20mA, pulse ,Modbus RTU RS485 (HART optional)

ATEX (Flow Sensor) - II 2G Ex db IIC T6...T1 Gb
ATEX (Transmitter) - II 2G Ex db [ib] IIC T6...T1 Gb

$15801.25
$18961.50 inc VAT

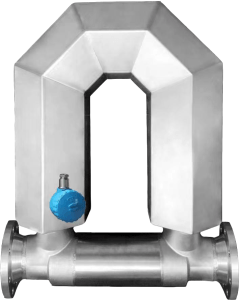

DN150 Coriolis Mass Flow Meter
SKU: CG-150

Max Flow rate 10,000 Kg/min (20:1 Turndown)
Liquid Accuracy +/- 0.1% (See options)
Gas Accuracy +/- 0.5%
Repeatability +/- 0.05%
Tube Material 316 Stainless Steel
40 Bar Max W.P (Subject to connections)
DN150 Flanges PN40 (See options)
Process Temp -70 to 160 Deg. C (See Options)
Remote Display 24V DC or 85~265V AC, 50/60 Hz
Cable Length 5m (See options)
4-20mA, pulse ,Modbus RTU RS485 (HART optional)

ATEX (Flow Sensor) - II 2G Ex db IIC T6...T1 Gb
ATEX (Transmitter) - II 2G Ex db [ib] IIC T6...T1 Gb

$22196.25
$26635.50 inc VAT
DN200 Coriolis Mass Flow Meter
SKU: CG-200

Max Flow rate 20,000 Kg/min (20:1 Turndown)
Liquid Accuracy +/- 0.1% (See options)
Gas Accuracy +/- 0.5%
Repeatability +/- 0.05%
Tube Material 316 Stainless Steel
40 Bar Max W.P (Subject to connections)
DN200 Flanges PN40 (See options)
Process Temp -70 to 160 Deg. C (See Options)
Remote Display 24V DC or 85~265V AC, 50/60 Hz
Cable Length 5m (See options)
4-20mA, pulse ,Modbus RTU RS485 (HART optional)

ATEX (Flow Sensor) - II 2G Ex db IIC T6...T1 Gb
ATEX (Transmitter) - II 2G Ex db [ib] IIC T6...T1 Gb

$32241.25
$38689.50 inc VAT
