"Delta" Differential Fuel Flow Meter (up to 500 litres/hour) with Display, Normalised Pulse Output and Additional Interface Options

SKU: -DELTA
Delta Differential Fuel flow meter
up to 500 litres/hour
Pulse Output with Built-in Display + Additional Interface Options
10-50v Supply
  • Sensor
  • Flow Range
  • Display
  • $614.93
  • $737.92 inc VAT
Qty:

Description

  • SKU
    -DELTA

Delta Differential Fuel flow meter

up to 500 litres/hour
Pulse Output with Built-in Display + Additional Interface Options
10-50v Supply

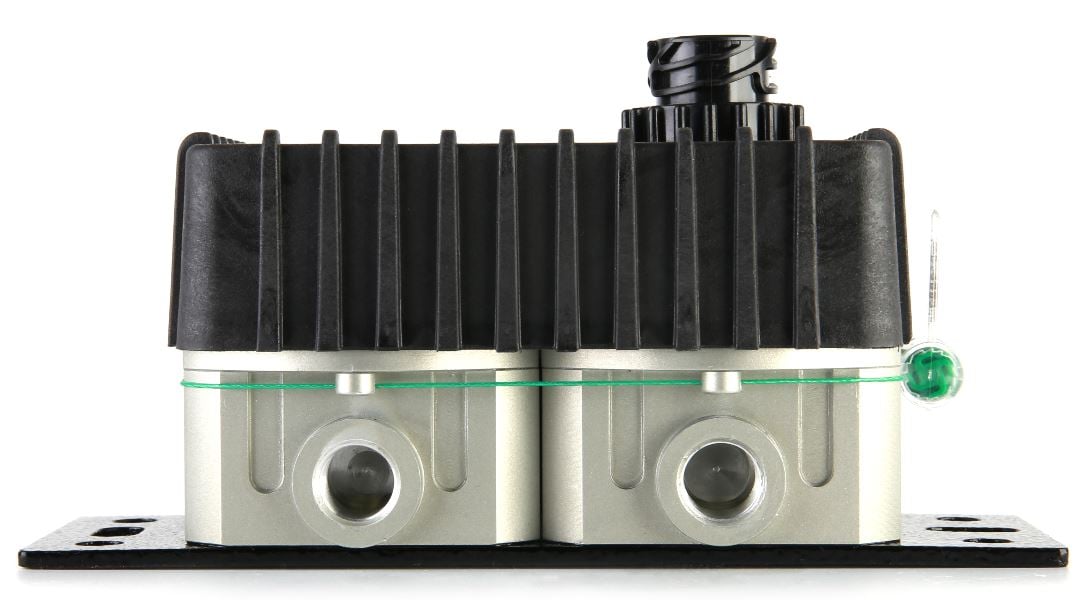

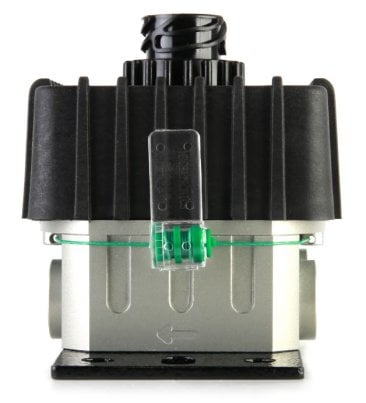

Differential fuel flow meter "Delta" is used for the fuel consumption measurement of diesel engines.
Most engines have supply and return flow. To obtain the fuel consumption data of the engine, it is necessary to measure both fuel flows and calculate the difference.
With the "Delta" you can receive accurate results immediately after installation without any calibration.

  • High-precision measurement
  • High corrosion resistance
  • Strong electronic circuit protection
  • Sealed automobile connector on sensor body
  • Indication lights means the user can easily see the state of device

Specification


    • Connection M14 x 1.5
    • Max pressure 2.5MPa
    • Power 10-50v
    • Reverse polarity protection
    • Accuracy ±1.2% (up to 250 L/Hr) / ±1.5% (500 L/Hr max model)
    • Temperature range -40°C to 85°C
    • Flow range up to 500 L/Hour (in each chamber) depending on model
    • IP67 protection
    • Scaled pulse output
    • With Built-in Display + Other (additional) Outputs available
