Fluidwell F114 Ratio monitor flow computer/totaliser
  • Fluidwell F114 Ratio monitor flow computer/totaliser
  • Fluidwell F114 Ratio monitor flow computer/totaliser
  • Fluidwell F114 Ratio monitor flow computer/totaliser

Fluidwell F114 Ratio monitor flow computer/totaliser

SKU: F114-P-AP-CX-HD-OT-PB-PX-XX-ZX

Fluidwell F114-P
Ratio monitor flow computer
High/low alarm
Field mount IP67 GRP enclosure
Battery or 8-30v DC Power supply
Pulse input
  • £709.29
  • £851.15 inc VAT


Description


Fluidwell F114-P
Ratio monitor flow computer
High/low alarm
Field mount
IP67 GRP enclosure
Battery or 8-30v DC Power supply
Pulse input

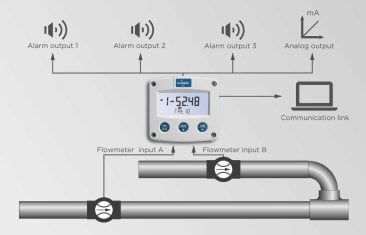

The F114 flow computer calculates the actual ratio between two separate flows. It offers the ability to set one low ratio and one high ratio alarm value.
Special precautions are taken to allow start-up problems and incorrect ratio readings for a certain period of time.
Based on the location of the flowmeters, a selection can be made out of six different formulas.
The display shows the ratio, alarm values, flow rate A, total A and flow rate B, total B. On-screen engineering units are easily configured from a comprehensive selection.
The ratio can be displayed as 1:__ or as a percentage.

Specification


    Fluidwell F114-P
    Ratio monitor flow computer
    High/low alarm
    Field mount
    IP67 GRP enclosure
    Battery or 8-30v DC Power supply
    Pulse input

    Features

      • Calculates ratio between flow A and B.
      • Displays ratio, flow rate A and B and total A and B.
      • Ratio monitoring: two alarm values can be set: low and high ratio alarm.
      • Alarm values can be changed by the operator or they can be password protected.
      • Six ratio calculation formulas.
      • Ratio: seven 17mm (0.67") digits, displayed as 1:__ or percentage.
      • Flow rate A and B: seven 17mm (0.67") digits.
      • Total A and B - resettable: seven 17mm (0.67") digits.
      • Separate engineering units for flow rate and total on the display.
      • Up to three configurable alarm outputs.
      • Displays clear alarm messages.
      • GRP enclosure.
      • Auto backup of settings and running totals in EEPROM memory.
      • Ambient temperature: -40°C to +80°C (-40°F to 176°F).

    Flowmeter Inputs

    • Pulse type inputs:
      Reed-switch, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal.
      Different pulse signal types are allowed for input A and B.
