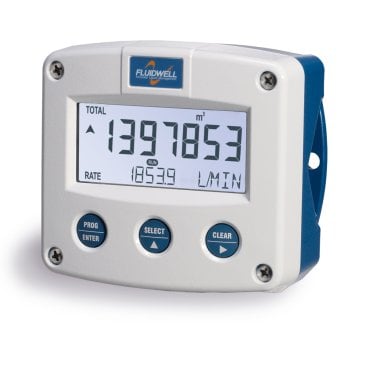

Fluidwell F116 Differential/Sum flow computer
SKU: F116-P-AP-CX-HD-OT-PD-XX-ZXFluidwell F116-P
Differential/consumption sum flow computer
Field mount IP67 GRP enclosure
8-24v AC/DC Power supply
Pulse input
Description
Fluidwell F116-P
Differential/consumption sum flow computer
Field mount IP67 GRP enclosure
8-24v AC/DC Power supply
Pulse input
The Fluidwell F116 is a field mount indicator designed to calculate the differential (consumption) flow A minus flow B, total, and accumulated total of flow A and flow B, or the sum.
7 digit resettable total, 11 digit accumulated total
User-selectable engineering units.
Displays flow rate and total simultaneously
Pulse input model which accepts; Reed switch, NAMUR, NPN, PNP, Sine wave (coil), active pulse signal.
8-24v AC/DC power supply
Specification
- Calculates differential flow rate (consumption), total and accumulated total of flow A and B.
- Calculates the sum flow rate, total and accumulated total of flow A and B.
- Precautions for pulsating flows and very low consumption readings.
- Analog and pulse outputs.
- Displays total and flow rate simultaneously.
- Large digit selection for flow rate or total.
- Flow rate: seven 17mm (0.67") or 8mm (0.31") digits.
- Total - resettable: seven 17mm (0.67") digits.
- Accumulated total - not resettable: eleven 8mm (0.31") digits.
- Separate engineering units for flow rate and total on the display.
- Auto backup of settings and running totals in EEPROM memory.
- Ambient temperature: -40°C to +80°C (-40°F to 176°F).
- Pulse type inputs:
Reed-switch, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal.
Different pulse signal types are allowed for input A and B.
Fluidwell F116-P
Differential/consumption sum flow computer
Field mount IP67 GRP enclosure
8-24v AC/DC Power supply
Pulse input
Features
Flowmeter Inputs
