AquaLink AQ4 Data Loggers
Aqualink GPRS, GSM, IOT, LoRaWan or Wi-Fi capable data logging system
Remote telemetry system featuring local data logger(s) accessed via secure M2M server and your very own website. Here you can set alarms and configure the logging parameters of units anywhere in the world. View current and
historical meter & sensor readings plus capture events in tabular or graphical format as well as downloading to .csv
file for export to spread sheet programs or third party software.

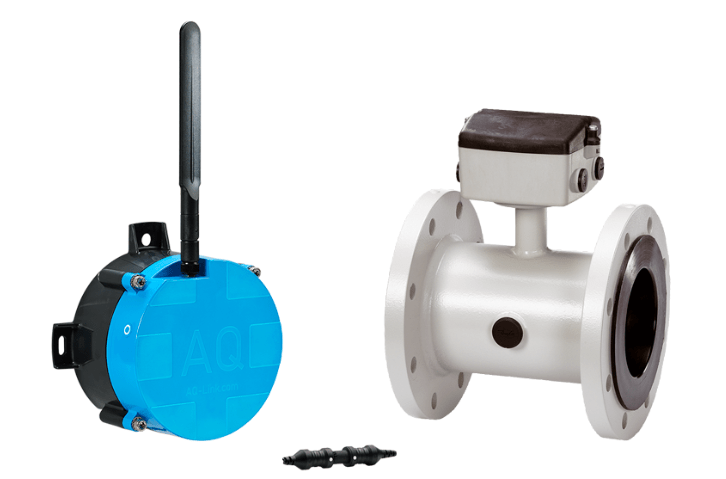

AQ4 Logger Shown with Mag Flow Meter
» 2x solenoid/relay pulse output with programmable voltage output 3,3V-20V, reverse polarity support and up to 20W pulse
»Real-time data and 24 hour surveillance
» State or sensor readings based alarms sent via e-mail or SMS(option)
» 2-way communication via dual band antennae
» Quad-band modem - globally network compatible (via local SIM card supplied either by us or the user)
» IP68 ABS enclosure
» Solar power options on request
» Simple installation, economical system
- AQ4 IoT Data GSM 2-4G IP68 + 1 x Cable
SKU: AQ4GDA5Aqualink AQ4 Telemetry Data Logger
5x programmable inputs (4x Digital/Analog/4-20mA + 1x Analog/4-20mA) with programmable power output and "ON" times for each input
RS485/Modbus RTU
Two-way communication
Local USB and Bluetooth communication
Battery power for more than 7 years (2 batteries standard, 3 optional)
Battery exchange option
Mains / Solar power option
Internal antenna (External option)
Option of output relay for valve or switch control (on request)£1113.00
£1335.60 inc VAT
