AQ4 IoT Data GSM 2-4G IP68 + 1 x Cable

AQ4 IoT Data GSM 2-4G IP68 + 1 x Cable

SKU: AQ4GDA5

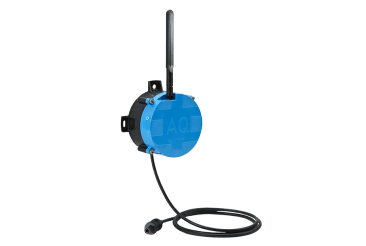

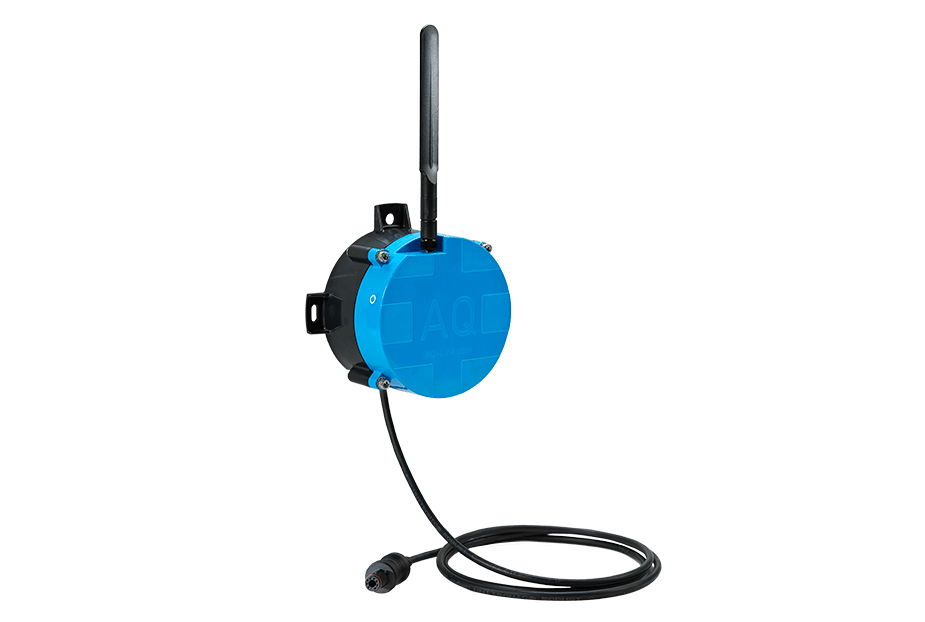

Aqualink AQ4 Telemetry Data Logger
5x programmable inputs (4x Digital/Analog/4-20mA  + 1x Analog/4-20mA) with programmable power output and "ON" times for each input
RS485/Modbus RTU
Two-way communication
Local USB and Bluetooth communication
Battery power for more than 7 years (2 batteries standard, 3 optional)
Battery exchange option
Mains / Solar power option
Internal antenna (External option)
Option of output relay for valve or switch control (on request)

  • SIM Card
  • WEB Access
  • Power
  • Antenna
  • £1113.00
  • £1335.60 inc VAT


Description

Supplied in a rugged IP68 enclosure, the AQ4 Logger is designed for use in harsh environments. The device has a built-in modem for bidirectional communication and battery power in the form of three D batteries which is sufficient to send data at intervals for more than 7 years.

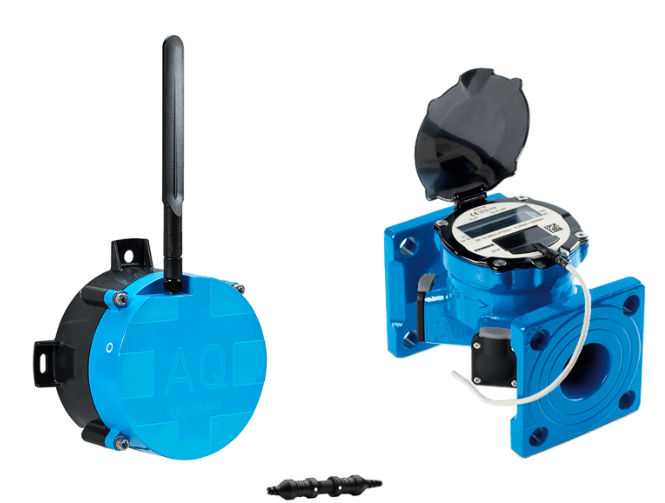

Shown with Ultrasonic Water Flow Meter

Secure Web Server Portal::

 ♦  Two-way communication
 ♦  Programmable Alarms
 ♦  Local USB and Bluetooth communication
 ♦  Battery power for more than 7 years (2 batteries standard, 3 optional)
 ♦  Battery exchange option
 ♦  Mains power option
 ♦  External or internal antenna
 ♦  4/5 x digital or analogue inputs (4-20 mA or 0-3 V) and RS485/Modbus
 ♦  Option with connectors for easy wiring
 ♦  Option of relay for valve or switch control (on request)
 ♦  For devices that need to be "online" permanently, mains or solar cell power options are available

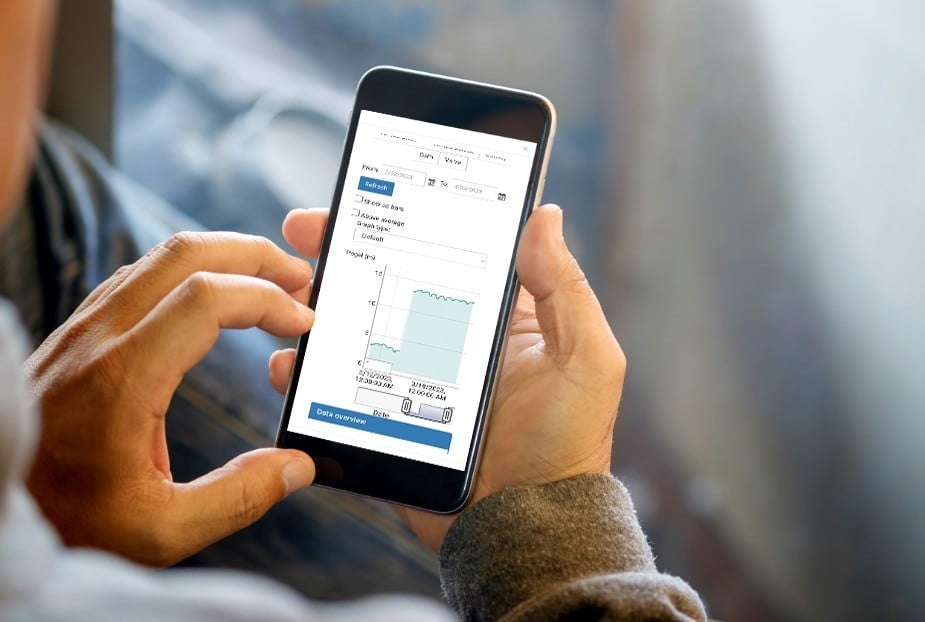

 Smartphone App

Specification

    AquaLink AQ4GDA5 technical specification
    Available with colour coded wires as standard or with mating connector on request

    Standard Package::

    Aqualink AQ4GDA5, AquaWeb Access for 1 year, External Antenna, 2x Internal Batteries, 3m cable 8x3m Scotchlok cable connectors (Connectors optional), Wall mount with screws

     Inputs:
         5x programmable inputs (4x Digital/Analog/4-20mA  + 1x Analog/4-20mA) with programmable power output for each input
         Dedicated AQPressure input
         Switch / alarm input
         RS-485 Modbus RTU
         Internal humidity and temperature sensor for detection of water intrusion inside housing

     Outputs: Optional
         2x solenoid/relay pulse output with programmable voltage output 3,3V-20V, reverse polarity support and up to 20W pulse

     Communication Options
         2G/3G/4G (SMS)
         NB-IoT (SMS)
         LoRaWan
         WiFi

     Device data Transmitted
         Input 1-5
         Battery status
         Communication signal status
         Internal power consumption
         Valve open or closed (ON/OFF switch)
         Temperature and humidity in the device
         Date and time (synchronized at each transmission)


     Communication protocol
         AQ Protocol
         MQTT

     Mechanical:
         Housing:                    IP68, Optionally Ip65
         Dimensions (mm):     160 x 80 mm
         Weight:                       800g (without cables)

     Power supply:
         Up to 3x 3,6V Li-SOCI2 internal batteries
         External power supply range from 3,6V to 15V, with auto fail-over to internal backup battery
         Standard battery life up to 10 years (depending on configuration)
         Batteries easily replaceable
         Optional mains / solar power supply / rechargeable batteries

     Uploading data:
         Standard to AquaLink Cloud
         Optionally via ODBC API to SCADA module
         Optionally HTTP open protocol
