Qbic 4 or 8 Channel Data Logger, Web Portal Access and Built-in Solar Charger

Qbic 4 or 8 Channel Data Logger, Web Portal Access and Built-in Solar Charger

SKU: Qbic

Qbic 4 or 8 Channel Data Logger
Various Input options: Pulse, 4-20mA, SDI12 etc
Remote Access Via Secure Web Portal
Android / IOS App available
IP67 Rated Ingress Protection
Over-heating protection
Integrated Solar Charger and Rechargeable Battery

  • Inputs
  • £1252.00
  • £1502.40 inc VAT


Description



Qbic 4 or 8 Channel Data Logger
Various Input options: Pulse, 4-20mA, SDI12 etc
Remote Access Via Secure Web Portal
Android / IOS App available
IP67 Rated Ingress Protection
Over-heating protection
Integrated Solar Charger and Rechargeable Battery

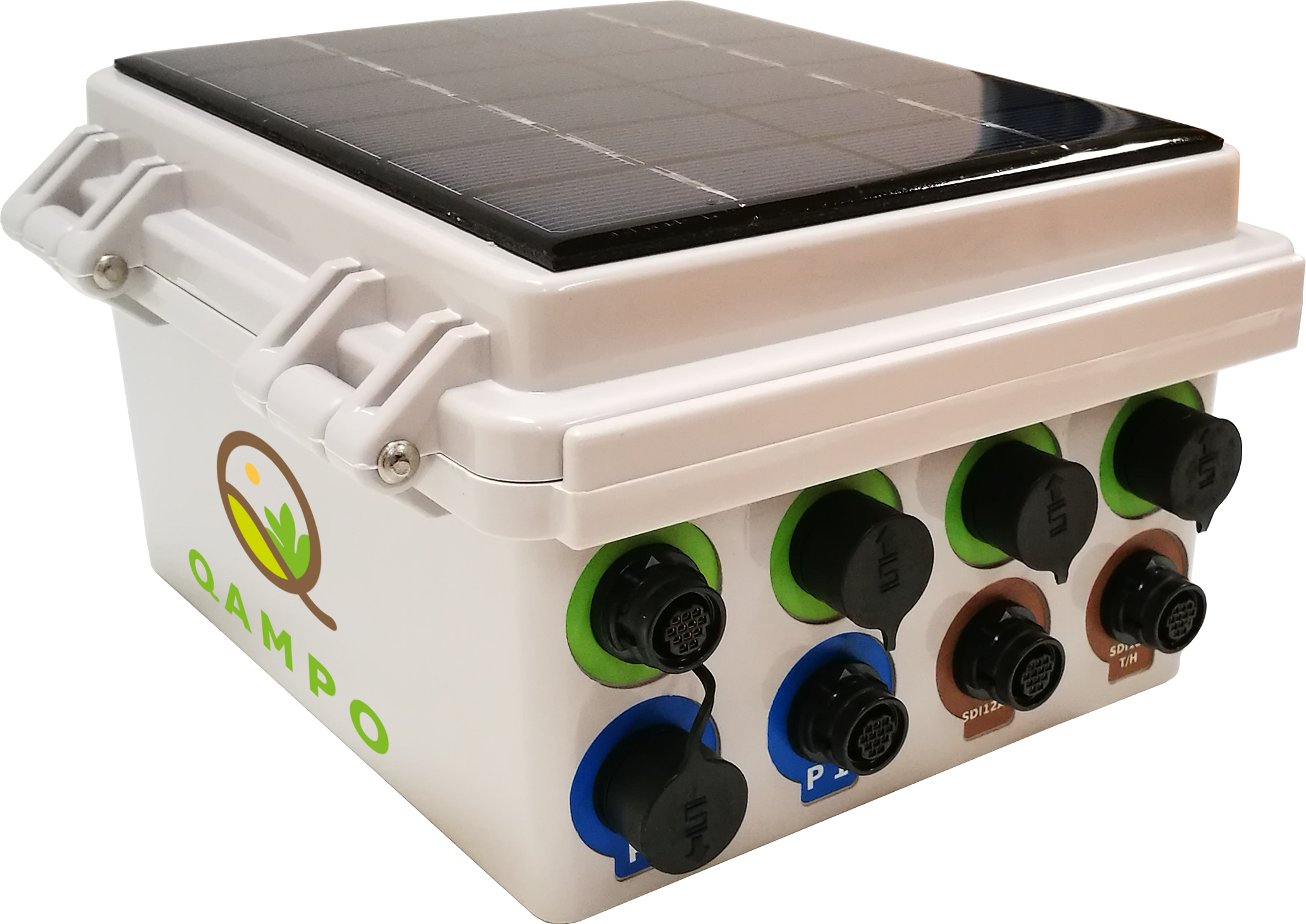

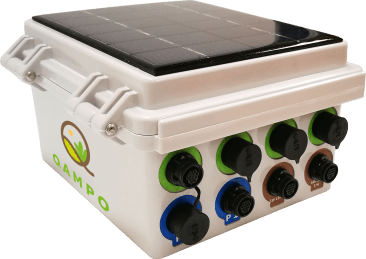

Qbic is a rugged device prepared for the most extreme temperature and humidity conditions, with IP67 Ingress protection, easy to install and with an integrated solar panel. It incorporates a lithium polymer battery that can power the unit without solar recharging for up to 4 months, thanks to the Qbic ultra low consumption measurement system. It recovers upto 100% battery power with only a few hours of sun light.

Specification

    Qbic 4 or 8 Channel Data Logger
    Various Input options: Pulse, 4-20mA, SDI12 etc
    Remote Access Via Secure Web Portal
    Android / IOS App available
    IP67 Rated Ingress Protection
    Over-heating protection
    Integrated Solar Charger and Rechargeable Battery



    Application Example: Qbic lite monitors the water that reaches the crop by connecting a soil moisture sensor and a water meter, or monitors solar radiation and ambient temperature / humidity to calculate evapotranspiration … with Qbic Lite you still have all the power of a professional datalogger but with a smaller number of inputs and outputs to adjust itself in price and adapt to very specific needs.





    Inputs

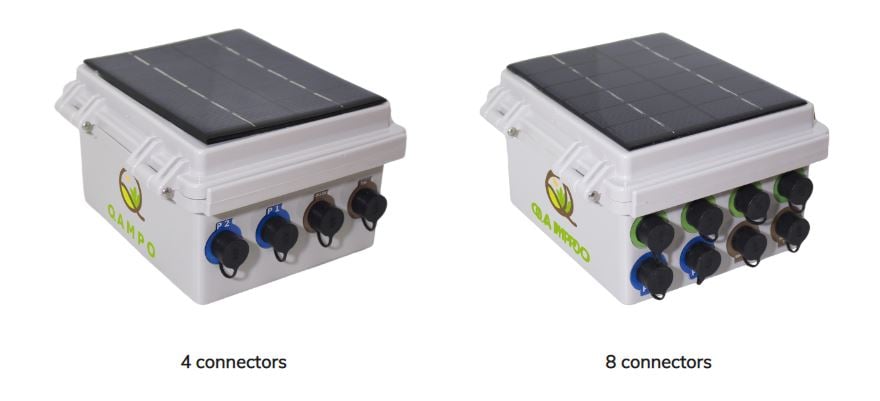

    4 connectors

    Maximum number of sensors connected at the same time: 4

    Up to 4 analog inputs.

    Up to 2 pulse inputs for connection with meters, pluviometer, anemometer and others.

    Up to 2 SDI12 sensors: Sentek Drill and Drop, Decagon: 5TE, GS3, 5TE and others.

    Input for ambient temperature / humidity sensor.



    8 connectors

    Maximum number of sensors connected at the same time: 8

    Up to 8 analog inputs.

    Up to 2 pulse inputs for connection with meters, pluviometer, anemometer and others.

    Up to 3 SDI12 sensors: Sentek Drill and Drop, Decagon: 5TE, GS3, 5TE and others.

    Input for ambient temperature / humidity sensor.



    Outputs



    Qbic Environmental data-loggers enable you to control other devices via their control outputs (available on request). Through their voltage outputs they can also feed active sensors that require power or even small hydraulic pumps.

    Voltage outputs:

    • 3 VDC
    • 5 VDC
    • 12 VDC

    Internal characteristics



    Internal temperature sensor

    Overheating protection system

    Lithium Polymer Battery

    Recharging battery by a solar panel integrated in the device

    Monitoring the battery status

    Accessories for easy installation on any diameter pole



    Wireless Communications



    Wireless communications based on the M2M network over GSM-GPRS and 3G.

    Global coverage (communications work in any country in the world *)

    Multi-operator. It automatically uses the network with the best coverage. (Multi-network SIM required for this purpose supplied by us or the user)



    Weight and
    dimensions



    165 x 155 x 95 mm

    Approximate weight: 700 g



    * Appropriate SIM Card required / Cell Signal coverage dependant
