F050 Field mount - Pressure Indicator
SKU: F050-A-HD-PD-XI-ZXF050-A Field mount pressure indicator
Basic pressure indicator with large digits
Field mount IP67 GRP enclosure
(0)4-20mA input
16-30vAC/DC powered with sensor supply
Intrinsically safe, ATEX, IECEx, CSA c-us and FM
Description
F050-A Field mount pressure indicator
Basic pressure indicator with large digits
Field mount IP67 GRP enclosure
(0)4-20mA input
16-30vAC/DC powered with sensor supply
Intrinsically safe, ATEX, IECEx, CSA c-us and FM

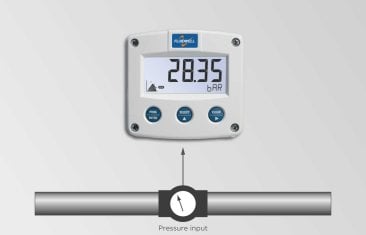

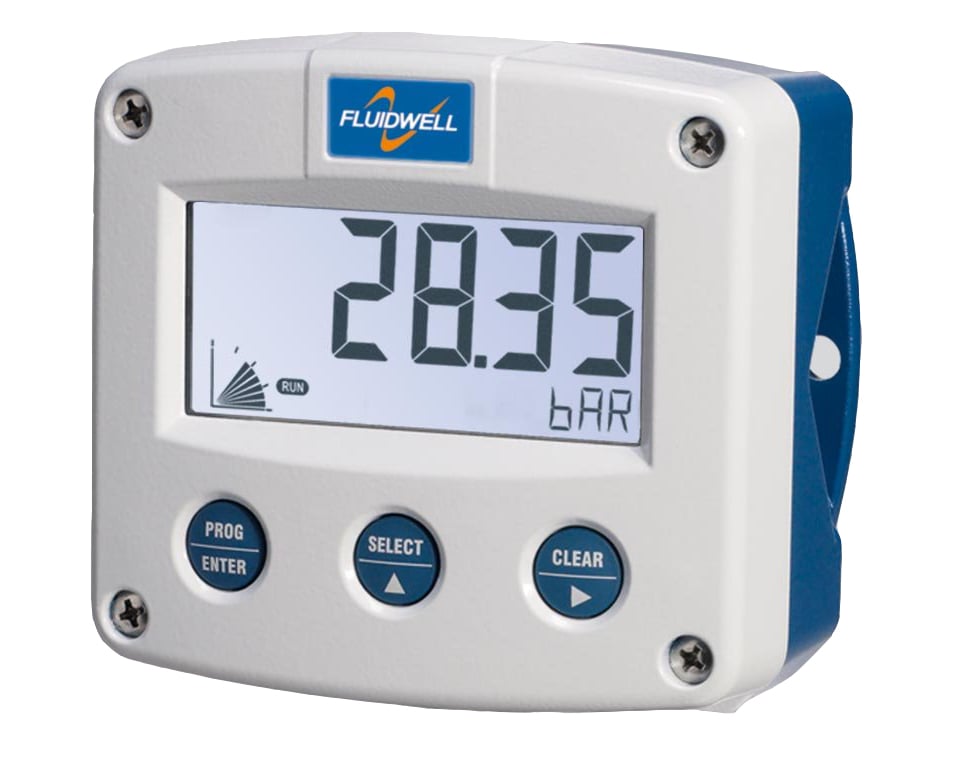

The F050 is a straight forward pressure indicator with large 26mm (1") high digits.
The measuring unit to be displayed below the pressure is simply selected through an alphanumeric configuration menu.
Features
- Displays actual pressure and measuring unit.
- Very large 26mm (1") high digits for pressure.
- Selectable on-screen engineering units: mBar - Bar - PSI.
- Number of digits for pressure: 5½.
- Piegraph indication: ten segments.
- Auto backup of settings in EEPROM memory.
- Easy configuration with clear alphanumerical display.
- Ambient temperature: -40°C to +80°C (-40°F to 176°F).
- Intrinsically safe, ATEX, IECEx, CSA c-us and FM
