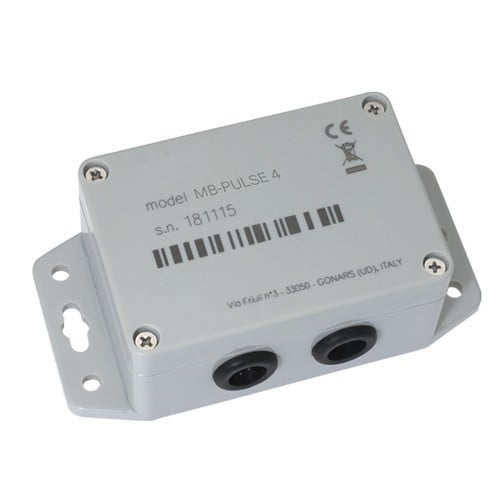

Pulse to Wired M-Bus converter module
SKU: MB-PULSE-4The MB-PULSE4 module can convert standard flow meter impulse signals (Reed Switch or Open Collector) to the Wired MBUS standard (EN13757-3).
Description
The MB-PULSE4 module can convert standard flow meter impulse signals (Reed Switch or Open Collector) to the Wired MBUS standard (EN13757-3).
It is possible to connect up to four pulse meters (water, gas, electricity, heat etc), any type, any manufacturer and any version. Each transmitted record is distinguished by four separate addresses, allowing easy reading of the unique consumption values.
Easy installation and configuration. It is possible to re-configure the factory set primary addresses by using the software type BMBUS and master mod.MB-MASTER.
Specification
Technical Features
| Dimensions (mm) | 89x74x40 (in mm) 122 g |
| Weight | 122 g |
| Temperature range | from +1°C to +55°C |
| Power supply | From BUS Network 3 V Lithium Battery (backup) |
| Battery life | 1 year* (if disconnected from BUS network) |
| Protection class | IP65 |
| Transmission protocol | MBUS Standard EN 13757-3 |
| Measurement sensibility | 1 – 10 – 100 – 1000 x / pulse |
| Measurement units available | L – Wh – KJ |
| Transmitted data | Consumption, Device Status |
| Inputs | 4x pulse inputs. Link-able to pulse systems (REED and Open Collector) |
| Max input frequency | 20 Hz |
| Output | 1x Wired MBUS output. |
* Battery life depends on the number of associated devices and the environmental conditions
