Blancett B3000 Series Flow Monitor :: Base Model
SKU: B30BB3000 Base Model
Flow Rate indicator and totaliser
Battery powered and loop powered
4-20mAand Pulse output
NEMA 4X / IP66 Enclosure Rating
Customer Selectable Engineering Units
Description
B30B
B3000 Base Model
Flow Rate indicator and totaliser
Battery powered and loop powered
4-20mAand Pulse output
NEMA 4X / IP66 Enclosure Rating
Customer Selectable Engineering Units
- 3.6V DC lithium D Cell battery gives 6 years service life
- Optional Meter Mount, Remote mount and Swivel Mount
- Can accept low-level frequency input signals from turbine meters
- Calcaultes flow rate and total flow
- User selsctrable rate units, total units and time unit
- Simultaneously show rate and total or alternating displays
- 6-digit Rate, 7-Digit Total
Meter Mount
- Designed to mount to Blancett Turbine flow meters.
- 1" NPT meter mount connection
Remote Mount
- Designed to locate away from flow meter
- Suitable foor high temperature, excessive noise or inaccessable areas
- Panel, DIN rail and pipe mounting hardware included

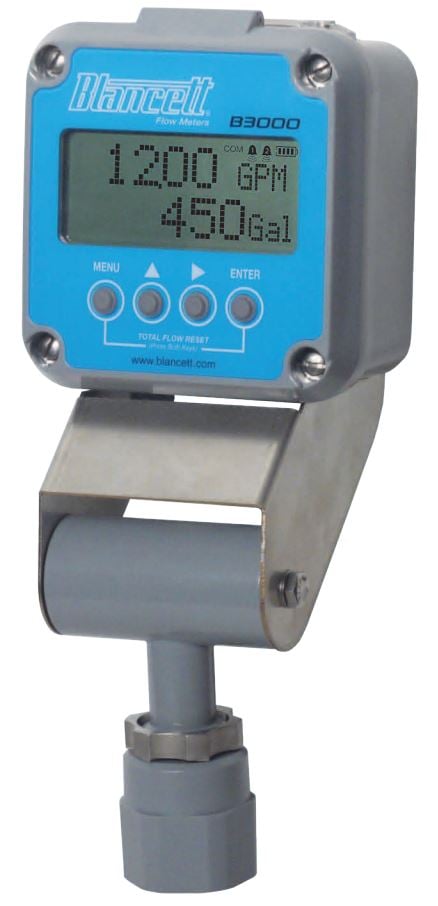

Swivel Mount
- Designed to mount to Blancett Turbine flow meters.
- 1" NPT meter mount connection
- Adjusts 180 degrees for ease of viewing
- Remote mount also available (please contact for more details)
Specification
