Cortex Flow Displays

Field mount LCD Flow display (Pulse Input Max Frequency 5 KHz)

The Cortex budget range of flow meter displays shows the actual flow rate and up to three totals on a high visibility LCD with scalable pulse and passive analogue outputs. With easy-to-use 3 button programming a wide range of engineering and time units are available which can be changed without needing to adjust the K-factor.

All common pulse inputs are accepted including reed switch, NAMUR, NPN/PNP, coil  etc as low as 1 pulse every 5 minutes with intelligent digital filtering to ensure stable readings. (Analogue input model also shown) Supplied in a compact ABS IP65 field housing

Products: 1–5 of 5
Show:20
Sort by:Recommended
  • Field mount LCD Flow display Battery Powered :: LF Pulse Input
    Field mount LCD Flow display Battery Powered :: LF Pulse Input
    SKU: XEF-NFC101E

    XEF-NFC101E Field mount LCD Flow display
    Low Frequency Pulse Input (Max Frequency 100 Hz)

    Scaleable 4-20mA & programmable digital output
    Casing: Economy (IP54 Rated)
    Function: Flow Rate / Totaliser with programmable outputs
    Model: Hi/Low rate Alarm or Pulse Output
    Input Type: Pulse Standard
    Power Options: Battery Powered 'AA' size (*5 Yrs Life)

    £195.00
    £234.00 inc VAT
  • Field mount LCD Flow display Battery Powered :: Pulse Input

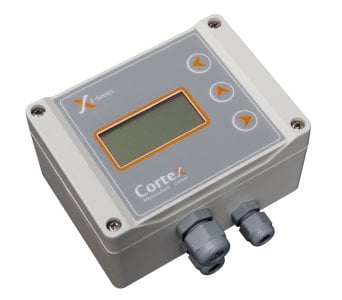

    Field mount LCD Flow display Battery Powered :: Pulse Input
    SKU: XEF-GFC101E

    XEF-GFC101E Field mount LCD Flow display
    Pulse Input (Max Frequency 5 KHz)

    Scaleable 4-20mA & programmable digital output
    Casing: Economy (IP54 Rated)
    Function: Flow Rate / Totaliser with Batch or Total Control Feature
    Model: 10 point Linearisation Feature
    Input Type: Pulse Standard
    Power Options: Battery Powered 'AA' size (*5 Yrs Life)

    £225.00
    £270.00 inc VAT
  • Field mount LCD Flow display 12-36V DC Powered :: Pulse Input
    Field mount LCD Flow display 12-36V DC Powered :: Pulse Input
    SKU: XEF-GFC111E

    XEF-GFC111E Field mount LCD Flow display
    Pulse Input (Max Frequency 5 KHz)

    Scaleable 4-20mA & programmable digital output
    Casing: Economy (IP54 Rated)
    Function: Flow Rate / Totaliser with Batch or Total Control Feature
    Model: 10 point Linearisation Feature
    Input Type: Pulse Standard
    Power Options: 12-36V DC Powered

    £245.00
    £294.00 inc VAT
  • Field mount LCD Flow display 12-36V DC Powered :: 4-20mA Input
    Field mount LCD Flow display 12-36V DC Powered :: 4-20mA Input
    SKU: XEF-GFC240E

    XEF-GFC240E Field mount LCD Flow display
    4-20mA Input

    Scaleable 4-20mA & programmable digital output
    Casing: Economy (IP54 Rated)
    Function: Flow Rate / Totaliser
    Input Type: 4-20mA Analogue Input (Linear or Square Root)
    Passive, Active or Loop power


    £245.00
    £294.00 inc VAT
  • Field mount LCD Flow display 12-36V DC Powered :: 2x Pulse Inputs (Calculated Value)
    Field mount LCD Flow display 12-36V DC Powered :: 2x Pulse Inputs (Calculated Value)
    SKU: XEF-GFC111E A-B

    XEF-GFC111E A-B Field mount LCD Flow display
    2x Pulse Input (Max Frequency 5 KHz)

    Scaleable 4-20mA & programmable digital output
    Casing: Economy (IP54 Rated)
    Function: Flow Rate / Totaliser A, B, A-B, A+B
    Typical uses: Fuel Consumption, Compound Measurement
    Input Type: Pulse (2 Channels)
    Power Options: 12-36V DC Powered

    £275.00
    £330.00 inc VAT
