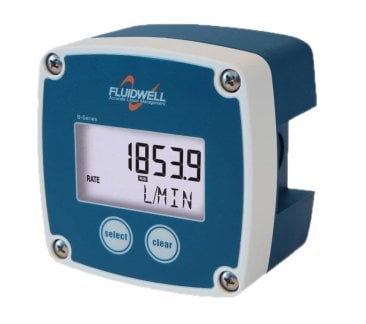

B-Connected Flow rate Indicator / Totalizer with Modbus & pulse and analogue outputs
  • B-Connected Flow rate Indicator / Totalizer with Modbus & pulse and analogue outputs
  • B-Connected Flow rate Indicator / Totalizer with Modbus & pulse and analogue outputs
  • B-Connected Flow rate Indicator / Totalizer with Modbus & pulse and analogue outputs

B-Connected Flow rate Indicator / Totalizer with Modbus & pulse and analogue outputs

SKU: B-Connected
Fluidwell B-Connected (Remote PC Software option)
Displays instantaneous flow rate, total and accumulated total.
IP65 GRP Field, wall, or meter mount enclosure
Battery powered or 10-30vDC
Modbus RS485 communication
4-20mA Signal Output & Scaleable Pulse Output

  • PC Connection
  • £494.59
  • £593.51 inc VAT


Description

Fluidwell B-Connected (Remote PC Software option)

Displays instantaneous flow rate, total and accumulated total.
IP65 GRP Field, wall, or meter mount enclosure
Battery powered or 10-30vDC
Modbus RS485 communication
4-20mA Signal Output & Scaleable Pulse Output

This local indicator displays the actual flow rate, total and accumulated total.
The total can be reset to zero by pressing the CLEAR button twice. The accumulated total can register up to 11 digits and is backed-up in EEPROM memory every minute, just as the running total.
On-screen engineering units are easily configured from a comprehensive selection.


Features

Compact design.
Displays instantaneous flow rate, total and accumulated total.
Durable IP65 (Type4) field, wall or meter mount enclosure.
One 20mm (0.79") and two 16mm(0.63") knock-out hole cable entries.
Easy reading and programming with clear alphanumerical display.
Clear 12mm(0.5”) numeric digits and 7mm(0.3”) alphanumeric digits.
Bright LED backlight.
Auto backup of settings and running totals.
Lithium AA battery and/ or 10 - 30V DC power supply.

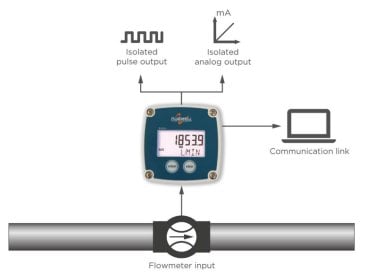

Isolated passive 4 - 20mA output according to flow rate.
Isolated scaled pulse output according to accumulated total.
Modbus RS485 communication

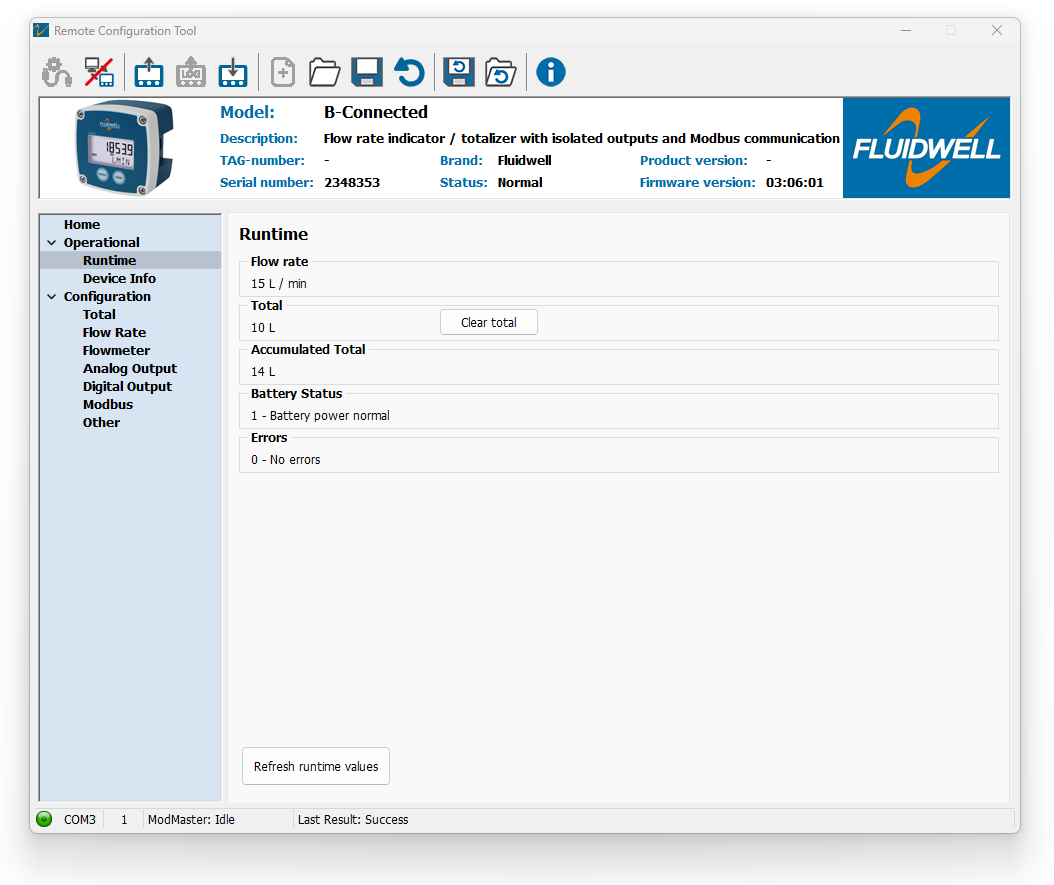

Remote PC Link includes USB cable & Software

Configure the settings of the B-Connected model remotely and see the latest information from the screen

Specification

    Fluidwell B-Connected (Remote PC Software option)
    Displays instantaneous flow rate, total and accumulated total.
    IP65 GRP Field, wall, or meter mount enclosure
    Battery powered or 10-30vDC
    Modbus RS485 communication
    4-20mA Signal Output & Scaleable Pulse Output
