D012 DIN panel mount flow rate indicator/totaliser

SKU: D012-P-HB-PB-PX-XX-ZX

Fluidwell D012-P
Flow rate indicator /totaliser
Aluminium DIN panel mount
Battery or 8-30VDC powered
Pulse input
  • £483.08
  • £579.70 inc VAT


Description


Fluidwell D012-P
Flow rate indicator/totaliser
Aluminium DIN panel mount
Battery or 8-30VDC powered
Pulse input

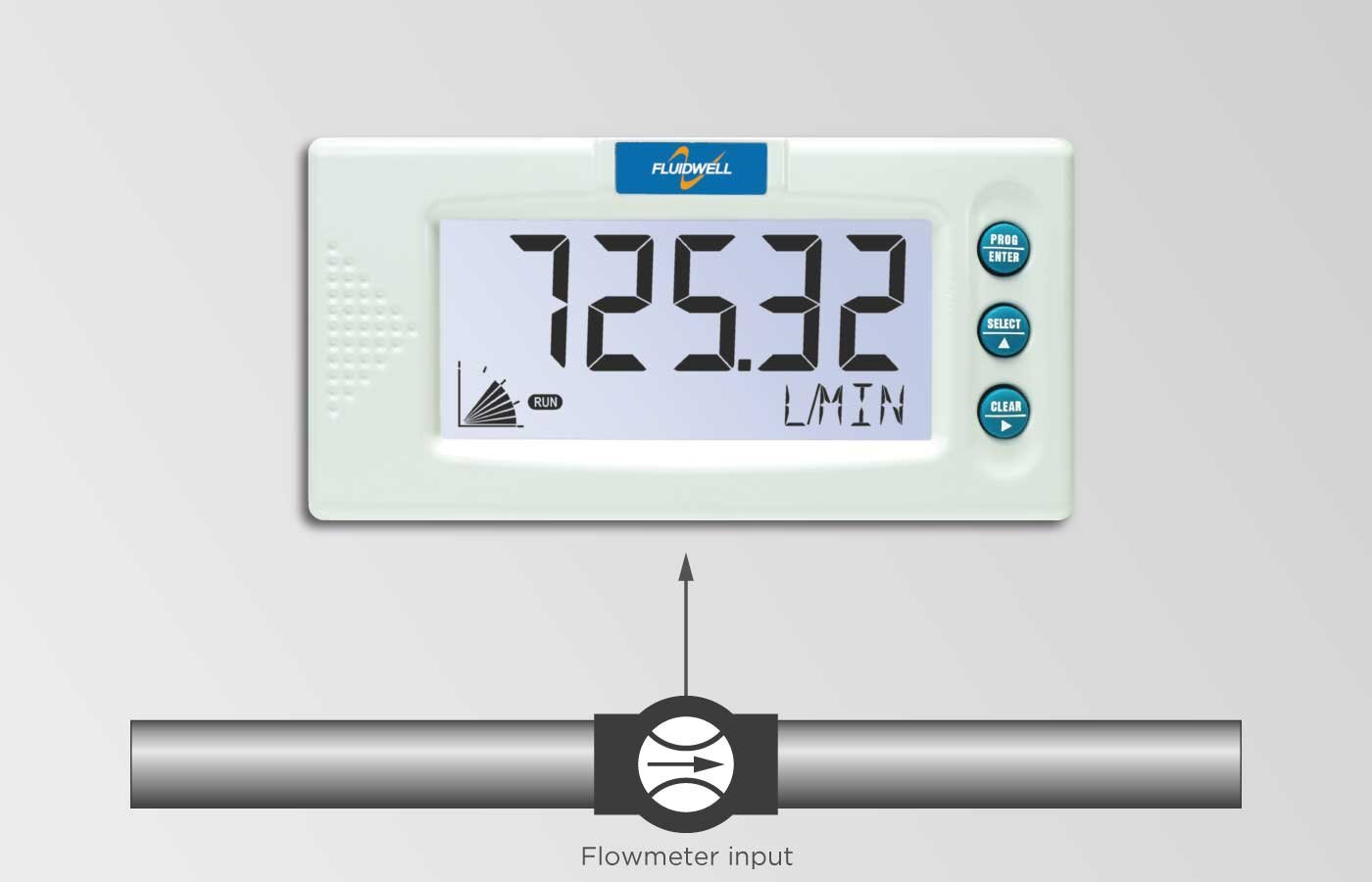

The Fluidwell D012 model is a DIN panel mount indicator which displays the actual flow rate, total, and accumulated total in user-selectable engineering units.
1x resettable total, 1x accumulated non-resettable total
Displays flow rate and total simultaneously
Pulse input model which accepts; Reed switch, NAMUR, NPN, PNP, Sine wave (coil), active pulse signal.
Aluminium front enclosure offering IP67 (NEMA4X) protection from the front.
Dimensions: 144 x 72 x 71.4mm
Panel Cut-out: 138 x 68mm
Battery powered model, approx 5 year battery life depending on settings.
Can also be powered by 8-30vDC, no sensor supply.

Specification

    • Features

    • Displays flow rate, total and accumulated total.
    • Large 17mm (0.67") digits for flow rate or total.
    Selectable on-screen engineering units; volumetric or mass.
    Ability to process all types of flowmeter signals.
    Auto backup of all settings.
    Ambient temperature: -40°C to +80°C (-40°F to 176°F).
    LED backlight option.
    Aluminum DIN front panel of 144 x 72mm (5.67" x 2.83") according DIN 43700 / IEC 61554.
