BUF-2000H Portable Ultrasonic Flow Meter Kit :: Clamp-on Sensors 25mm - 300mm
  • BUF-2000H Portable Ultrasonic Flow Meter Kit :: Clamp-on Sensors 25mm - 300mm
  • BUF-2000H Portable Ultrasonic Flow Meter Kit :: Clamp-on Sensors 25mm - 300mm
  • BUF-2000H Portable Ultrasonic Flow Meter Kit :: Clamp-on Sensors 25mm - 300mm
  • BUF-2000H Portable Ultrasonic Flow Meter Kit :: Clamp-on Sensors 25mm - 300mm

BUF-2000H Portable Ultrasonic Flow Meter Kit :: Clamp-on Sensors 25mm - 300mm

SKU: BUF-2000H

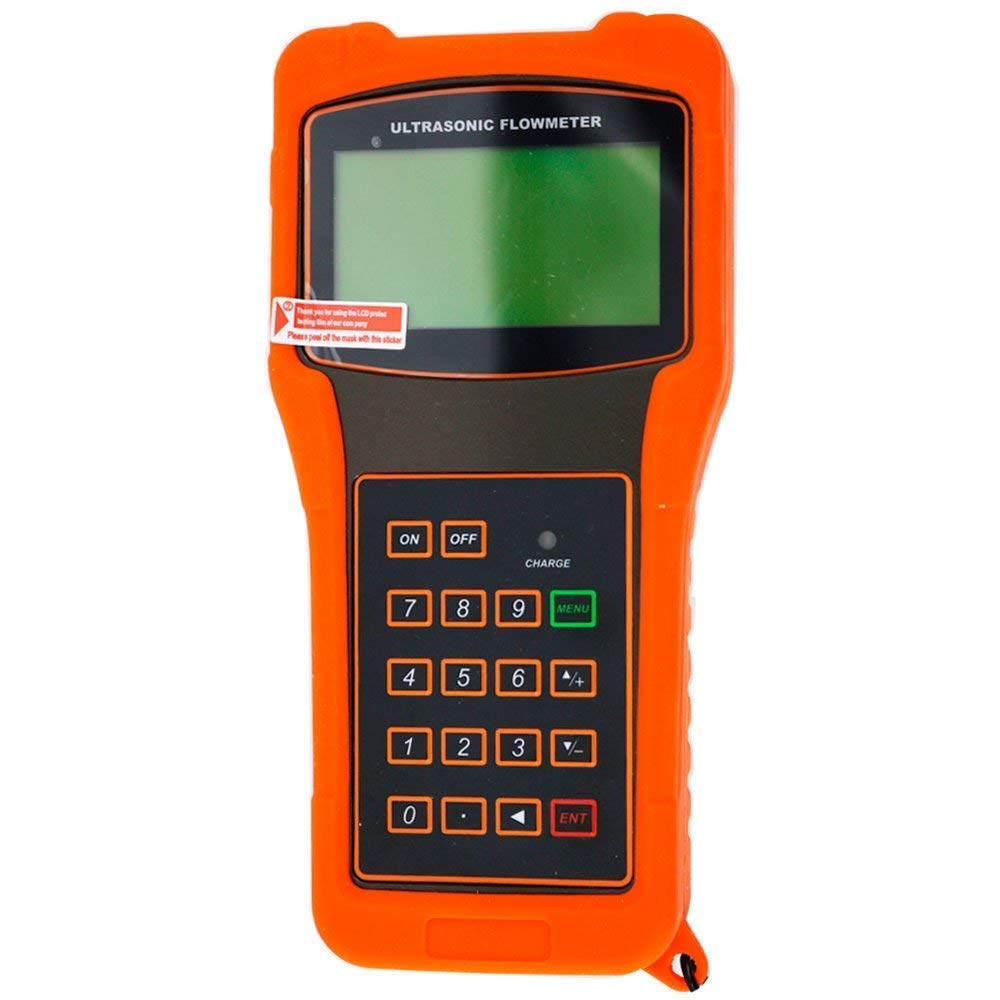

BUF-2000H Portable Ultrasonic Clamp-on Flow Meter Kit
Clamp-on Sensors available:  25mm-100mm or 50mm-300mm (Larger on Request)
High Temperature -30 ℃ to 160 ℃

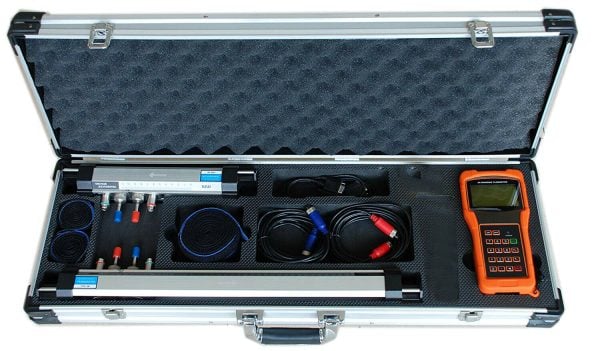

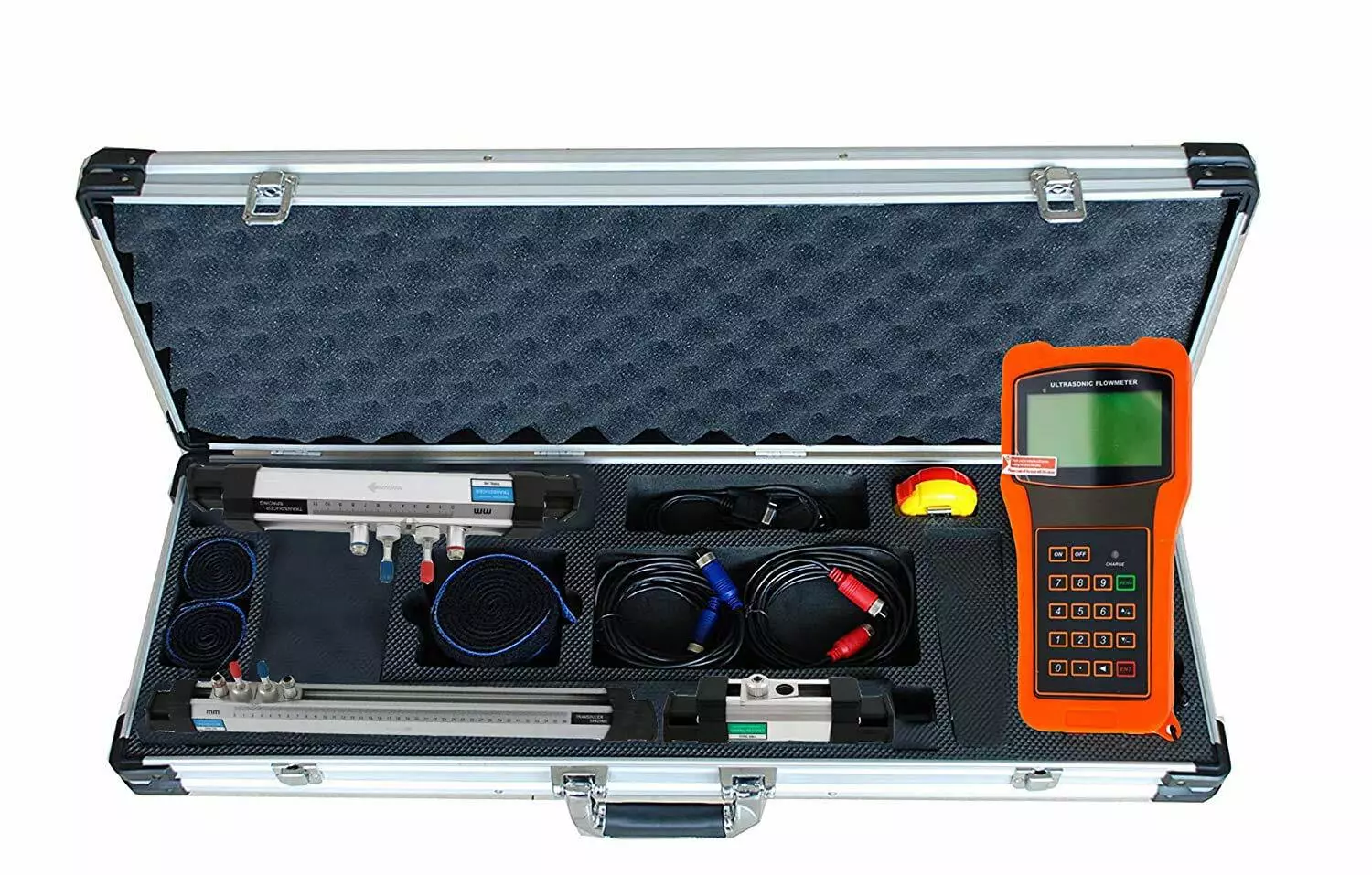

Hand Held Model with carry case: All accessories included.
12 Hour Battery life + AC Charger/ Pulse, Alarm, Outputs
Internal Data Logger

  • Pipe Size
  • £1175.00
  • £1410.00 inc VAT


Description

BUF-2000H Portable Ultrasonic Clamp-on Flow Meter Kit
Clamp-on Sensors available:  25mm-100mm or 50mm-300mm
High Temperature -30 ℃ to 160 ℃
Hand Held Model with carry case: All accessories included.
12 Hour Battery life + AC Charger/ Pulse, Alarm, Outputs
Internal Data Logger

A cost-effective non-invasive Time-of-Flight portable Ultrasonic Flow meter and volume flow display which facilitates quick and easy installation without the need to cut into existing pipe-work. Location Memory allows quick set-up when returning to previous sites. Suitable for most common clean liquids. Very small amounts of entrained air and particles may be tolerated. If you have a liquid that is aerated or carrying solids, look at our doppler models.

Power:- Internal Battery Pack (12 Hours) 85-260VAC charger

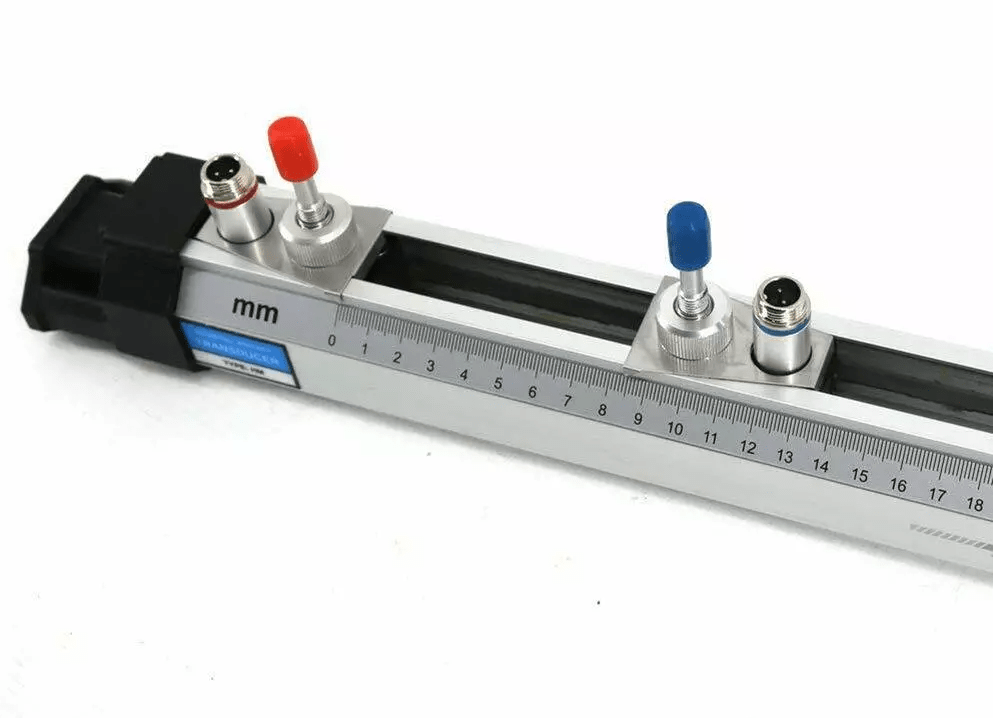

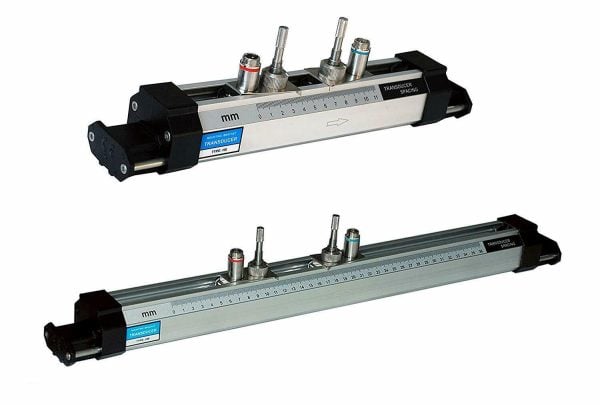

Supplied c/w  Clamp-on Ultrasonic Transducers suitable for pipe sizes DN 25mm - 100mm and/or 50mm - 300mm




Features:

≈ Horizontal or vertical Installation

≈ Transducer Max Temp: -30C to +160C

 ≈ Accuracy: <1% of reading above 0.6ft/sec / 0.2 m/sec

≈ Ingress Protection: Display= IP65, Transducers= IP65

Specification

    Specification

    Linearity

    1%

    Repeatability

    0.2%

    Accuracy

    ±1% of reading at rates >0.6ft/s. ±0.5% with on-site calibration.

    Response Time

    0-999 seconds, user-configurable

    Velocity

    ±0.03 - ±105 ft/s (±0.01 - ±30m/s), bi-directional

    Pipe Size

    25mm - 6,000mm (Various Sensors available to fulfil this range)

    Pipe Material

    All metals, most plastics, concrete, lined pipe etc

    Rate Units

    Cubic Meter, Feet, Cubic Meter, Liter, Cubic Feet, US Gallon, Imperial Gallon, Oil Barrel, USA Liquid Barrel, Imperial Liquid Barrel, Million USA Gallons. User configurable.

    Totalizer

    7-digit totals for net, positive and negative flow

    Liquid Types

    Virtually all clean liquids and liquids with minor solids (<10,000ppm). Full pipe

    Security

    Setup Lockout. Access code needed to unlock

    Display

    4x16 letters

    Computer Interface

    RS232, baud-rate: 75 to 115,200bps.

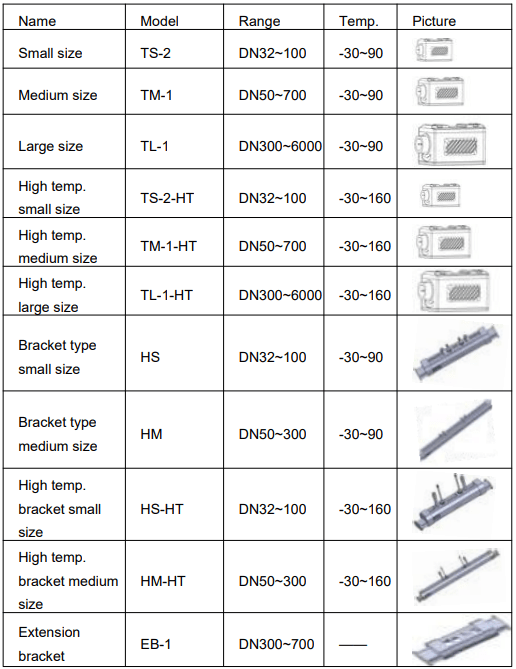

    Supplied Transducers

    As requested

    Transducer Cable

    Standard 5m. Contact sales for longer cables, up to 100m

    Power

    built-in batteries. When fully recharged it will last over 12 hours of operation.
    100-240vAC Adapter supplied for charging and continuous use.

    Data Logger

    Over 2000 lines of data

    Handset Weight

    (390g)
