The Dipperlog Nano water level logger range provides sensibly priced instrumentation that is ideal for groundwater logging applications  These instruments are designed specifically for both short and long term groundwater and surface water monitoring applications.

Delivering high accuracy measurements of water level, pressure and temperature. a selection of models are available in both non vented (absolute) instruments where a Barlog sensor is required for barometric compensation, and vented (Gauge) instruments which automatically compensate for *barometric pressure.

*BarLog nano instruments are used to record and compensate barometric pressure for use with any DipperLog non-vented (absolute) pressure logging instruments.

APPLICATIONS :: Fresh Water, Salt Water and Industrial applications

♦ Short and long term groundwater level and temperature monitoring
♦ River level measurement
♦ Flood levels and storm surge monitoring
♦ Landfill Leachate Monitoring
♦ Pump and slug testing
♦ Wetland studies and estuary research
♦ Tidal studies
♦ Dewatering (mining and construction)
♦ Aquifer monitoring
♦ Drilling, well development, hydraulic testing
♦ Tank levels


The Dipperlog Nano groundwater level data logger range offers the user superior performance and accuracy at a low cost.

TELEMETRY:

♦ GSM/GPRS, email and text messages with cloud based monitoring at remote locations. Powered, battery and solar options. See our range of associated Telemetry products here >>

Simple

♦ Easy to use intuitive software
♦ Launch and download data quickly – 32,000 data sets in 90 seconds
♦ Step by step guides provided with every Dipperlog Nano

Flexible

♦ Multiple deployment options – suspended version, reel version, well head readout version
♦ Accessories available for real time data visual display or telemetry interface
♦ USB programming via Windows based software
♦ User defined measurement intervals – 1 second to 255 hours
♦ One download cable for all options
Items: 119 of 19
Drop items here to shop
Product has been added
  • DipperLog 32 Water Level Logger (0 - 30m)
    DipperLog 32 Water Level Logger (0 - 30m)
    SKU: 5402-32
    Absolute (Non vented) Ground Water Level Data Logger
    Accuracy (Typical) :: 0.1% net FS
    Level Range 0 - 30m
    32,000 Data Set Memory (Depth and Temperature)
    Stainless Steel construction
    Battery Life up to 5 Years
    BarLog NANO required for Pressure Compensation


    $482.85
    $579.42 inc VAT
  • DipperLog 64 Water Level Logger (0 - 10m)
    DipperLog 64 Water Level Logger (0 - 10m)
    SKU: 5401-64

    Absolute (Non vented) Ground Water Level Data Logger

    Accuracy (Typical) :: 0.05% net FS
    Level Range 0 - 10m
    64,000 Data Set Memory (Depth and Temperature)
    Stainless Steel construction
    Battery Life up to 10 Years
    BarLog NANO required for Pressure Compensation


    $635.73
    $762.87 inc VAT
  • DipperLog 64 Water Level Logger (0 - 30m)
    DipperLog 64 Water Level Logger (0 - 30m)
    SKU: 5402-64

    Absolute (Non vented) Ground Water Level Data Logger

    Accuracy (Typical) :: 0.05% net FS
    Level Range 0 - 30m
    64,000 Data Set Memory (Depth and Temperature)
    Stainless Steel construction
    Battery Life up to 10 Years
    BarLog NANO required for Pressure Compensation


    $635.73
    $762.87 inc VAT
  • DipperLog 64 Water Level Logger (0 - 60m)
    DipperLog 64 Water Level Logger (0 - 60m)
    SKU: 5403-64

    Absolute (Non vented) Ground Water Level Data Logger

    Accuracy (Typical) :: 0.05% net FS
    Level Range 0 - 60m
    64,000 Data Set Memory (Depth and Temperature)
    Stainless Steel construction
    Battery Life up to 10 Years
    BarLog NANO required for Pressure Compensation


    $635.73
    $762.87 inc VAT
  • DipperLog 64 Water Level Logger (0 - 120m)
    DipperLog 64 Water Level Logger (0 - 120m)
    SKU: 5404-64

    Absolute (Non vented) Ground Water Level Data Logger

    Accuracy (Typical) :: 0.05% net FS
    Level Range 0 - 120m
    64,000 Data Set Memory (Depth and Temperature)
    Stainless Steel construction
    Battery Life up to 10 Years
    BarLog NANO required for Pressure Compensation


    $635.73
    $762.87 inc VAT
  • DipperLog Tough Titanium Water Level Logger (0 - 10m)
    DipperLog Tough Titanium Water Level Logger (0 - 10m)
    SKU: 5401-TI

    Absolute (Non vented) Ground Water Level Data Logger

    Accuracy (Typical) :: 0.05% net FS
    Level Range 0 - 10m
    64,000 Data Set Memory (Depth and Temperature)
    Titanium construction
    Battery Life up to 10 Years
    BarLog NANO required for Pressure Compensation


    $763.13
    $915.75 inc VAT
  • DipperLog Tough Titanium Water Level Logger (0 - 30m)
    DipperLog Tough Titanium Water Level Logger (0 - 30m)
    SKU: 5402-TI

    Absolute (Non vented) Ground Water Level Data Logger

    Accuracy (Typical) :: 0.05% net FS
    Level Range 0 - 30m
    64,000 Data Set Memory (Depth and Temperature)
    Titanium construction
    Battery Life up to 10 Years
    BarLog NANO required for Pressure Compensation


    $763.13
    $915.75 inc VAT
  • DipperLog Tough Titanium Water Level Logger (0 - 60m)
    DipperLog Tough Titanium Water Level Logger (0 - 60m)
    SKU: 5403-TI

    Absolute (Non vented) Ground Water Level Data Logger

    Accuracy (Typical) :: 0.05% net FS
    Level Range 0 - 60m
    64,000 Data Set Memory (Depth and Temperature)
    Titanium construction
    Battery Life up to 10 Years
    BarLog NANO required for Pressure Compensation


    $763.13
    $915.75 inc VAT
  • DipperLog Tough Titanium Water Level Logger (0 - 120m)
    DipperLog Tough Titanium Water Level Logger (0 - 120m)
    SKU: 5404-TI

    Absolute (Non vented) Ground Water Level Data Logger

    Accuracy (Typical) :: 0.05% net FS
    Level Range 0 - 120m
    64,000 Data Set Memory (Depth and Temperature)
    Titanium construction
    Battery Life up to 10 Years
    BarLog NANO required for Pressure Compensation


    $763.13
    $915.75 inc VAT

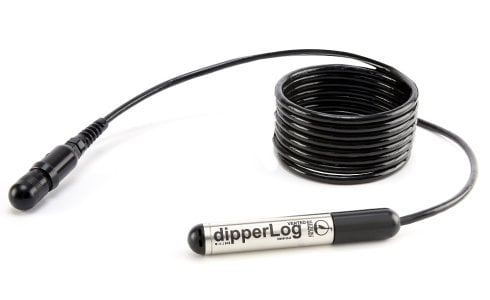

  • Vented DipperLog Nano Water Level Logger (0 - 10m)
    Vented DipperLog Nano Water Level Logger (0 - 10m)
    SKU: 5401-V

    Gauge (Vented) Ground Water Level Data Logger

    Accuracy (Typical) :: 0.05% net FS
    Level Range 0 - 10m
    64,000 Data Set Memory (Depth and Temperature)
    Stainless Steel construction
    Battery Life up to 7 Years



    $635.73
    $762.87 inc VAT
  • Vented DipperLog Nano Water Level Logger (0 - 30m)
    Vented DipperLog Nano Water Level Logger (0 - 30m)
    SKU: 5402-V
    Gauge (Vented) Ground Water Level Data Logger
    Accuracy (Typical) :: 0.05% net FS
    Level Range 0 - 30m
    64,000 Data Set Memory (Depth and Temperature)
    Stainless Steel construction
    Battery Life up to 7 Years



    $635.73
    $762.87 inc VAT
  • Vented DipperLog Nano Water Level Logger (0 - 60m)
    Vented DipperLog Nano Water Level Logger (0 - 60m)
    SKU: 5403-V
    Gauge (Vented) Ground Water Level Data Logger
    Accuracy (Typical) :: 0.05% net FS
    Level Range 0 - 60m
    64,000 Data Set Memory (Depth and Temperature)
    Stainless Steel construction
    Battery Life up to 7 Years



    $635.73
    $762.87 inc VAT
  • Vented DipperLog Nano Water Level Logger (0 - 120m)
    Vented DipperLog Nano Water Level Logger (0 - 120m)
    SKU: 5404-V
    Gauge (Vented) Ground Water Level Data Logger
    Accuracy (Typical) :: 0.05% net FS
    Level Range 0 - 120m
    64,000 Data Set Memory (Depth and Temperature)
    Stainless Steel construction
    Battery Life up to 7 Years



    $635.73
    $762.87 inc VAT
  • BarLog NANO Barometric Data Logger
    BarLog NANO Barometric Data Logger
    SKU: 5116
    Barometric Data Logger For use with DipperLog Nano

    32,000 Data Set Memory (Depth and Temperature)
    Stainless Steel construction
    Battery Life up to 7 Years



    $482.85
    $579.42 inc VAT
  • DipperLog Nano Water Level Logger (0 - 10m)
    DipperLog Nano Water Level Logger (0 - 10m)
    SKU: 5201
    Absolute (Non vented) Ground Water Level Data Logger
    Accuracy (Typical) :: 0.05% net FS
    Level Range 0 - 10m
    32,000 Data Set Memory (Depth and Temperature)
    Stainless Steel construction
    Battery Life up to 7 Years
    BarLog NANO required for Pressure Compensation



    Product Discontinued - Replacement models Dipperlog 32 / Dipperlog 64
  • DipperLog Nano Water Level Logger (0 - 30m)
    DipperLog Nano Water Level Logger (0 - 30m)
    SKU: 5202
    Absolute (Non vented) Ground Water Level Data Logger
    Accuracy (Typical) :: 0.05% net FS
    Level Range 0 - 30m
    32,000 Data Set Memory (Depth and Temperature)
    Stainless Steel construction
    Battery Life up to 7 Years
    BarLog NANO required for Pressure Compensation

    Product Discontinued - Replacement Models Dipperlog 32 / Dipperlog 64

  • DipperLog Nano Water Level Logger (0 - 60m)
    DipperLog Nano Water Level Logger (0 - 60m)
    SKU: 5203
    Absolute (Non vented) Ground Water Level Data Logger
    Accuracy (Typical) :: 0.05% net FS
    Level Range 0 - 60m
    32,000 Data Set Memory (Depth and Temperature)
    Stainless Steel construction
    Battery Life up to 7 Years
    BarLog NANO required for Pressure Compensation

    Product Discontinued - Replacement Model Dipperlog 64


  • DipperLog Nano Water Level Logger (0 - 120m)
    DipperLog Nano Water Level Logger (0 - 120m)
    SKU: 5204
    Absolute (Non vented) Ground Water Level Data Logger
    Accuracy (Typical) :: 0.05% net FS
    Level Range 0 - 120m
    32,000 Data Set Memory (Depth and Temperature)
    Stainless Steel construction
    Battery Life up to 7 Years
    BarLog NANO required for Pressure Compensation

    Product Discontinued - Replacement Model Dipperlog 64

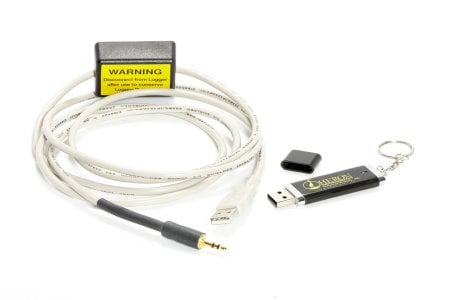

  • DipperLog Nano Communications Cable
    DipperLog Nano Communications Cable
    SKU: 5009
    DipperLog Nano Communications Cable
    Provides communication between PC and DipperLog Nano sensor
    can be used for programming and data collection
    $126.13
    $151.35 inc VAT
