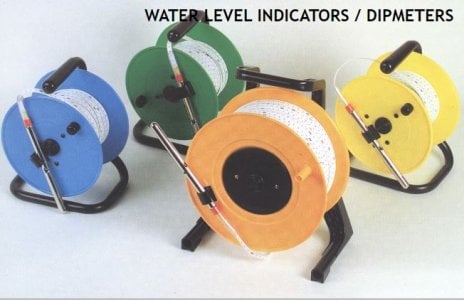

Water Level Meters

Heron Instruments offers a wide range of water level meters which a designed and manufactured to meet a high quality, offering a rugged and dependable design. Water level meters can be used for a wider range of applications, including open water bodies, boreholes, standpipes and wells. These models can offer the measurement of static and falling water levels, as well as length of casing and total well depth.
Static water levels
Depth of the water in a well
Drawdown water levels
Used to measure a falling water level during low flow sampling, purging or well development
Length of Casing
Used to measure the depth of a metal well casing. When the probe leaves the magnetic field of the well casing an audible and visual signal will become active
Total well Depth
Used to measure total well depth, the devices features a pressure sensitive plunger which when at the bottom of the well will create an audible and visual indication
To check the features included with the device, please see the product descriptions.
Why should I Choose Heron?
♦ IP65 Electronic Module – Can be removed for easy cleaning and servicing
♦ Sensitivity switch – adjust for false signals during cascading water
♦ Probe Link – The probe can be sacrificed if the device becomes stuck in a well
♦ IP68 Probe – Fully sealed and pressure rated*
♦ Steel Tape – High break strength jacketed polyethylene tape
♦ Padded Carry Case – Included with all units
♦ Tape Guide – Built In to protect the tape from sharp edges
♦ Vinyl holding grip – ergonomic, easy to grip
♦ Winding Handle – Made for easy winding with gloves on

Sort by:
Recommended
-
Dipper-Tag
SKU: 1500
Multi Purpose Tag Line (Series 1500)Can be used for total well depth
or attached Bailer or data loggerWhite polyethylene tape and probe1" Stainles Steel "Plopper"
Inc Carry case$542.50
$651.00 inc VAT -
Skinny Dipper - Narrow Diameter Water Level Meter
SKU: 1300
Skinny Dipper - Narow Diameter Water Level MeterCan be used for static water levels.Easily collect drawdown data to calculate well production1/4" polyethylene tape and probelengths available up to 150m$711.25
$853.50 inc VAT -
Water Tape :: Economical Water Level Meter w/Fixed Probe
SKU: 1900
Economical Water Level MeterCan be used for static and drawdown levelsWhite polyethylene tapelengths available up to 300m$718.75
$862.50 inc VAT -
Dipper-T2 Water Level Meter
SKU: 1200
Premium Water Level MeterCan be used for static and drawdown levelsYellow polyethylene tape
Fixed Probelengths available up to 600m$791.25
$949.50 inc VAT -
Dipper-T :: Four Function Water Level Meter
SKU: 1100
Premium Four Function Water Level MeterCan be used for static depth, drawdown, well casing and well depthMultifunctional Instrument - interchangeable probe optionsLengths available up to 600m$1180.00
$1416.00 inc VAT -
Dipper-Tough :: Harsh Environment Water Level Meter
SKU: 1400
Rugged Water Level MeterHarsh Environment usageCan be used for static and drawdown levelsKynar™ coated tape
5/8” (15.9mm) Water Level Probe (IP68) w/ holderlengths available up to 300m$980.00
$1176.00 inc VAT -
WLM-30
SKU: 30m Water level meter / Dip Tape
Metric graduated tape marked in centimetres
Chorme plated brass probe
Internal adjustable potentiometer provides sensitivity control
Battery powered, buzzer sounds when probe is in contact with water$543.13
$651.75 inc VAT
