Radar Velocity Sensor Only
SKU: RVS-30-SensorRadar Velocity Non-Contact measurement
Detection distance: 50m
Range: 0.02 - 15 m/s
Extra-large measuring angle: 12° Azimuth, 24° Elevation;
IP68 protection
IP68 protection
RS485 Modbus RTU interface
9-27 VDC power
Description

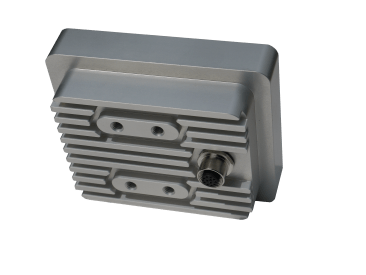

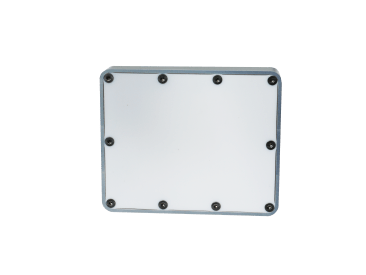

Radar Velocity Sensor
Non-Contact measurement
Detection distance: 50m
Range: 0.02 - 15 m/s
Accuracy: ± 0.02 m/s
Extra-large measuring angle: 12° Azimuth, 24° Elevation;
IP68 protection
IP68 protection
RS485 Modbus RTU interface
9-27 VDC power
- Non-contact measurement, reducing maintenance costs
- Extra-large measuring angle: 12° Azimuth, 24° Elevation;
- IP68 protection, ideal for waste water treatment, measurement and monitoring of sewerage pipelines

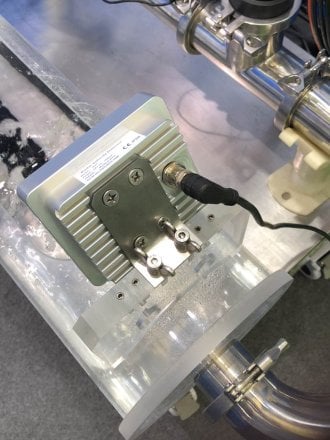

- Variety of measurement modes: fixed on tripod, bridge or shore, fixed installation under bridge, and cableway flow measurement
- Smart echo algorithm and software filtering for accurate velocity value without environmental interference;
- Combine with flow computer and level sensor to measure flow rate of non-standard open channel and partially filled pipes
Specification
