Hybrid Cartridge Flow Meters

The Cartridge style meter is the first open channel flowmeter to utilize hybrid technology. The technology combines a traceable flume & level system for low flow applications with higher flows covered by the accurate transit-time chordal velocity method  This hybrid technology system allows for precise and highly accurate flow measurement during extremely low flows, high flows, surcharges, reverse flows, stagnation and non-uniform hydraulic profiles. On-board data logging with optional telemetry completes each cartridge meter package.

Why choose a Cartridge flow meter..... get the details here

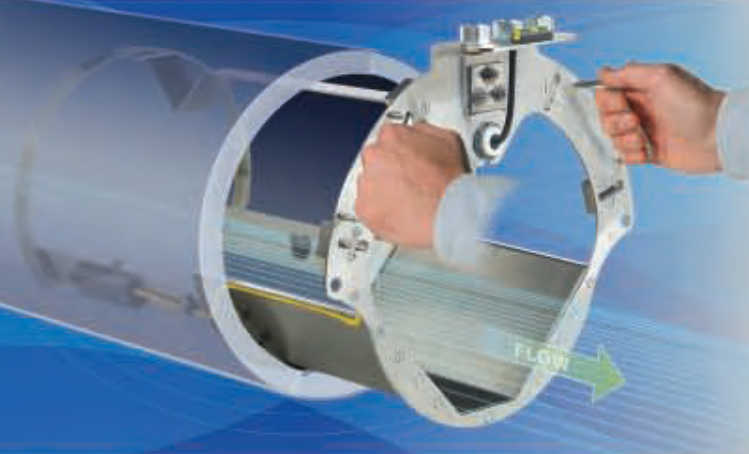

THE CARTRIDGE FLOW METER IS A FACTORY ASSEMBLED UNIT, DESIGNED INSTALLATION AND VALIDATION IN 30 MINUTES

PRE-SIZED  Each field ready cartridge is pre-sized for it's intended application.
Manufactured in 304 stainless steel, cartridges are installed and operational within minutes.

PRE-PROGRAMMED Each Cartridge Meter is factory programmed in strict accordance
to customer supplied operating specifications.

PRE-ALIGNED Installed accuracy is guaranteed through precision factory alignment and
calibration of each component encased within the cartridge assembly.

OPERATING BENEFITS:

30 Minute Installation Time A stainless Cartridge, pre-sized for its specific application, arrives at the job site as a fully integrated unit. Every component is factory precision aligned, calibrated and programmed in strict accordance to customer supplied operating specifications.	Maintenance Free Operation By utilizing “above the flow” ultrasonic level sensors and non-fouling velocity sensors, the Cartridge Meter remains free from the ongoing problems of sediment build-up, fouled sensors and accumulated debris.	Data Logging Software Package Qtrend is an Excel Workbook Flow Data Graphing Package specifically designed to interface with every Cartridge Meter. It incorporates specific formulas capable of charting and displaying all of the data collected by the meter's onboard logger.	Flow Lab Accuracy Traceability Prior to field shipment, each Cartridge Meter is NIST traceable tested, calibrated and certified at Eastech's Flow Metrology Laboratory under the identical size and flow conditions specified for its ultimate application.
