Open Channel Area Velocity Flow Meter :: Battery Powered
SKU: BFU-300HPortable, Open Channel :: Area Velocity Flow Meter
Measures flow through partially filled pipes, channels, canals and culverts without a flume or weir.
Rechargeable Lithium Battery (6-8 Hours working life)
10 Metre length Cable as standard (longer on request)
Supplied in Carry Case

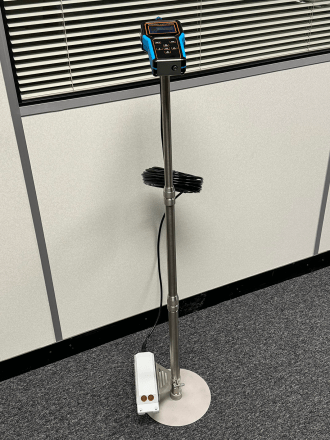

Includes S/Steel Deployment Stand and Bracket
Description
Portable Open Channel :: Area Velocity Flow Meter
Measures Bi-directional flow through partially filled pipes, channels, canals and culverts without a flume or weir.
Rechargeable Lithium Battery (6-8 Hours working life)
10 Metre Cable as standard
Includes Deployment Stand and Bracket

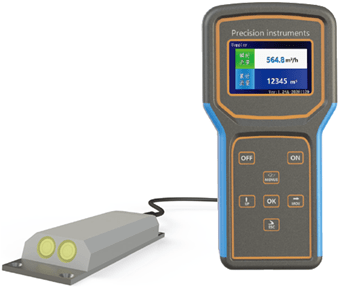

The BFU-300 area velocity flow meter measures flow through open channels and partially filled pipes without a flume or weir. It is ideal for river water, waste water, storm water, industrial effluent and irrigation water.

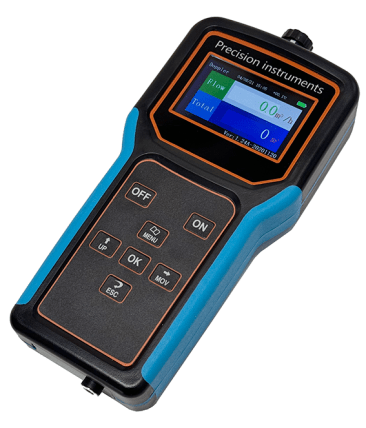

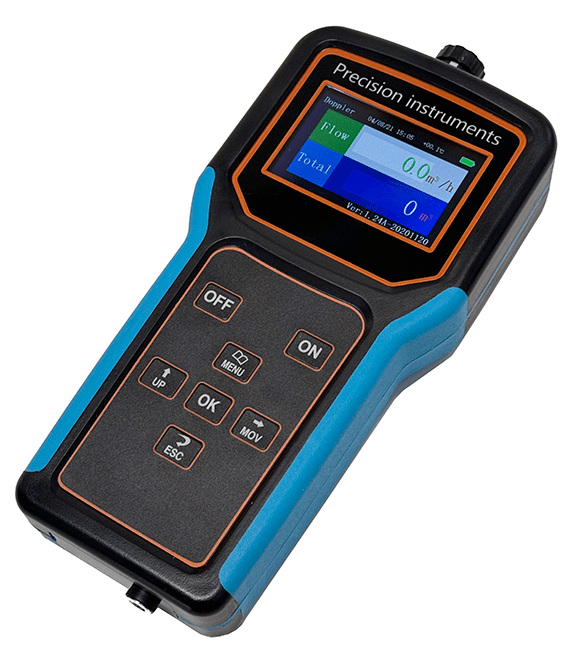

Backlit TFT Colour LCD shows:
◆ Point Velocity
◆ Flow Rate
◆ Total Flow
◆ Level
◆ Temperature
◆ Logged Values
The BFU-300 area velocity flow meter uses a submerged sensor to continuously measure both velocity and level in the channel. The sensor design resists fouling and is made from corrosion resistant materials The flow meter is configured with the standard IP68 submerged doppler velocity-level sensor and depth pressure sensor with temperature.
Specification
Portable Open Channel :: Area Velocity Flow Meter
Measures flow through partially filled pipes, channels, canals and culverts without a flume or weir.
Rechargeable Lithium Battery (Mains Charger supplied in case)
10 Metre Cable
Includes S/Steel Deployment Stand and Bracket
Technical Parameters
Hand Unit | Power Supply | 12V rechargeable lithium battery (6-8 Hours working life) |
| Power Consumption | <2W | |
| Range | Liquid Depth: 0.005 - 10m (Acc: 0.5% ±0.5cm) Velocity: 0-5m/s (12 m/s customizable on request) Instantaneous flow: 0.1 to 99999.9m³/h (L/S Cumulative flow total: 0-999999999 m³ Temperature: -10-70℃ | |
| Resolution | Liquid level: 0.001m Flow rate 0.001mm/s Instantaneous flow: 0.1m³/h Temperature: 0.1℃ | |
| Material | ABS/ PVC | |
| Protection Grade | IP65 (standard) / IP67 optional on request | |
| Output Signal |
| |
| Type Installation | Handheld | |
Sensor | Power Supply | 9-24V (powered from base unit) |
| Protection Grade | IP68 | |
| Temperature | -10-60℃ | |
| Material | PVC / Stainless Steel | |
| Cable Length | 10m (longer cable optional) | |
| Cable Material | Polyurethane | |
| Installation | Bracket supplied for submersible installation. Mounting holes for alternative installation |
