iSonic 4000 open Channel Flow Meter and Level Sensor
SKU: 414432iSonic 4000 open Channel Flow Meter & Level Sensor
from Badger Meter USA
Ultrasonic Principle
1x 4-20mA analogue input
Internal Data Logger and various ouputs
92 - 275V AC (9-36VDC option)
Ultrasonic Principle
1x 4-20mA analogue input
Internal Data Logger and various ouputs
92 - 275V AC (9-36VDC option)
Description

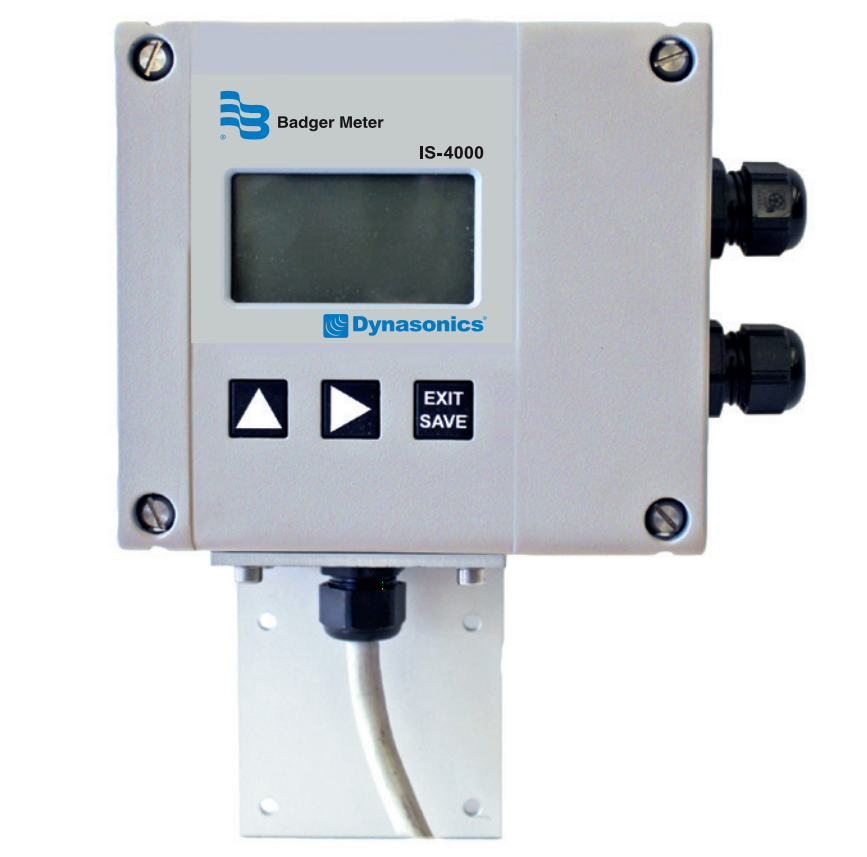

iSonic 4000 Open Channel Flow Meter & Level Sensor
Ultrasonic Principle
Measurement and Control of one flow channel
1x 4-20mA analogue input
1x 4-20mA analogue input
2x isolated pulse outputs
IP67 PRotection
2MB Internal Data Logger
92 - 275V AC (9-36VDC option)
2MB Internal Data Logger
92 - 275V AC (9-36VDC option)
Mini USB (IP67), RS422, RS485, ModBus RTU, Ethernet interfaces
The iSonic 4000 is a versatile instrument capable of measuring level, volume and flow of open channels in combination with weirs, flumes and user defined channel parameters.
The iSonic holds a wide selection of pre-prgrammed tables to match standard manufactured flumes and weirs or else there is a 35 Point input table programmed by the user as necessary.
Features
≈ Robust IP67 Wall mounted case
≈ Large graphic display
≈ Internal Data Logger with 2MB memory (130 000 data points)
≈ Software for programming and download of logged data
≈ Internal Data Logger with 2MB memory (130 000 data points)
≈ Software for programming and download of logged data
≈ Programmable Outputs: 4-20mA, Digital signals, ModBus
≈ IP67 Enclosure Rating

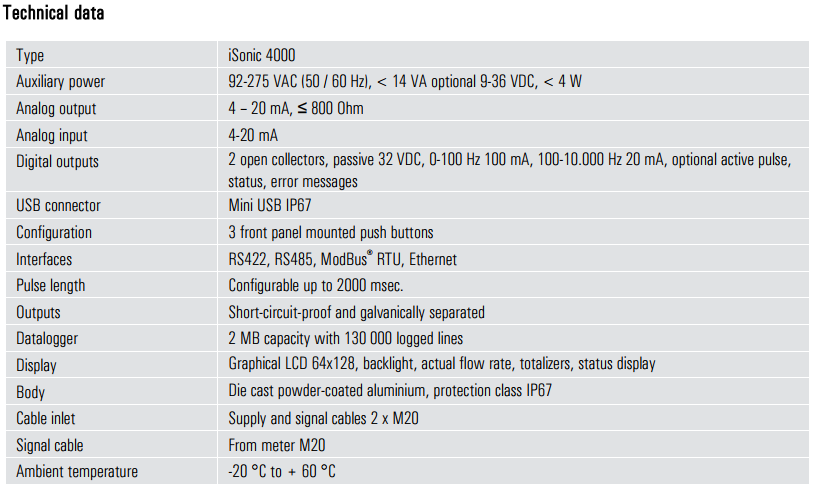

Specification
