Aquaread AS-6000 Advanced Self-powered Multi-parameter water quality Sonde with Wiper

Name: Aquaread AS-6000 Advanced Self-powered Multi-parameter water quality Sonde with Wiper
SKU: AS-6000
Price: 6740.00 GBP
Availability: InStock

SKU: AS-6000

AS-6000 Advanced Multi-parameter water quality Sonde

With Integrated Self Cleaning Wiper

Onboard datalogging and power supply
150,000 dataset memory
Perfect for long term deployments – deployments up to 180 days
Large internal memory – can contain over 3 years continuous data logging
Features 4 auxiliary sockets for further sensors to be connected - ISE or Optical

Standard Sensors for measurement of pH • ORP • Conductivity • TDS • SSG • Resistivity • Salinity
• Dissolved Oxygen • *Depth • Temperature

Optional Sensor - 1
Optional Sensor - 2
Optional Sensor - 3
Optional Sensor - 4
Cable length
Datalogging / Comms
Vented Cable and Hub Option

Description

AS-6000 Advanced Multi-parameter water quality Sonde

With Integrated Self Cleaning Wiper
Perfect for long term deployments – deployments up to 180 days

Large internal memory – can contain over 3 years continuous data logging

Features 4 auxiliary sockets for further sensors to be connected - ISE or Optical

Price includes -

Aquasonde AS-6000
2x 3.6V Lithium D Batteries
Sensors for measurement of dissolved oxygen (optical), conductivity, pH, ORP, temperature and *depth
USB Cable & Sondelink Software
Quick Deploy Key

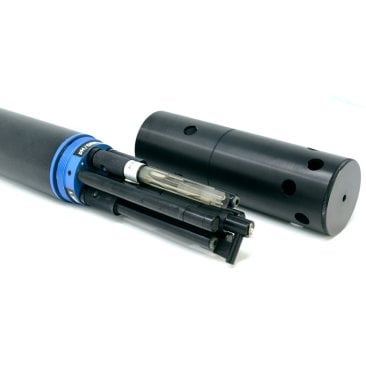

The AS-6000 is an advanced water quality monitoring sonde with key water quality parameters as standard, 4 auxiliary ports for additional ISE or optical sensors. The AS-6000 also includes an integrated central wiper which provides self-cleaning of the sensors to reduce bio fouling and debris build-up, to improve measurement quality. The sonde can also be combined with an Aqualogger for live monitoring applications.

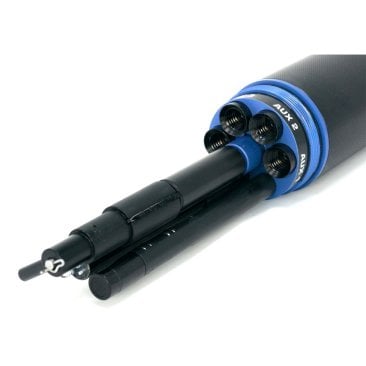

Self Cleaning System

A central cleaning arm on the AS-6000 ensure that the probe can be left for longer term deployments and accurate measurement in harsh environments. The rotating brush cleans all of the sensors including the optical DO and conductivity sensor. When returning to its start position, there is also a sharp edged to remove any collected material. Interaction will only be required for calibration and to clean the brush after deployments.

Logging/Event/Cleaning Rates

• Programmable. Fastest logging rate 0.5Hz.
• Slowest logging rate 120 hours.
• Event testing and logging on any single parameter
programmable between 1 minute and 99 hours.
• Programmable cleaning rate

The AS-6000 is an advanced water monitoring sonde designed for people looking for water quality monitoring with further opportunities for customization. The AS-6000 comes complete with the optical dissolved oxygen probe which reduces both calibration and maintenance whilst providing highly stable readings. The Sonde also includes four auxiliary sockets for the connection of either ISE or optical sensors.

STANDARD AQUASONDE 2000 PARAMETERS INCLUDED WITH ALL AS-6000 SONDES

Dissolved Oxygen (Optical)
Conductivity (specific / absolute)
pH
ORP
Total Dissolved Solids (TDS)
Resistivity
Salinity
SSG
Temperature
Depth

*Depth measurements available when using a vented cable

Optional parameters include -

Ammonium
Nitrate
Chloride
Calcium
Fluoride
Turbidity
Blue green algae – freshwater
Blue green algae - marine water
Rhodamine
Fluorescein
Chlorophyll a
Refined Oils
CDOM/FDOM

Aquasonde Options

Quick Deploy Key

Each Aquasonde is supplied with a Quick Deploy Key. When fitted to the Aquasonde, this unique device performs the following tasks:

Seals the connector.
Automatically starts the pre-programmed logging regime.
Provides instant visual indication of Aquasonde health, battery and memory condition. This allows all programming of the Aquasonde to be performed at your office using the PC application and the logging regime to be started at the precise time of deployment. It also provides peace of mind that the Aquasonde is operating correctly at the time of deployment.

Vented Data Cable Option

All models feature an internal barometric pressure sensor that is used when calculating Depth and percentage saturation of Dissolved Oxygen.

If the Aquasonde is to be deployed for more than a day at a time and accurate Depth and %DO values are required, a vented cable is recommended.

For profiling, dip testing or short-term deployment during which time the change in barometric pressure will be negligible, a vented cable is not necessary.

Vent / Data Hub

This option is a termination device for the vented cable that allows a desiccant bottle to be attached and provides a USB port for data retrieval and a visual indication of Aquasonde health, battery and memory condition.

By attaching a PC running SondeLink to the USB port, direct access can be gained to the Aquasonde allowing live data viewing, live data logging directly to PC, retrieval of logged data and full setup, all whilst the AquaSonde is submerged.
