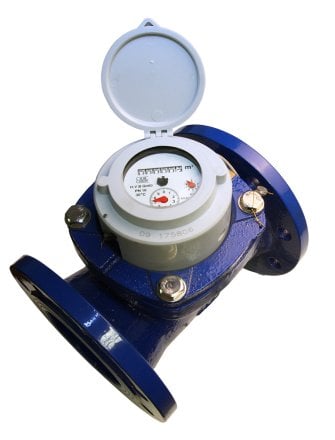

Irrigation Water Meter (Cold) Dry Dial Flanged PN16
SKU: WPI-SDC-80WPI-SDC-80
DN80 Irrigation Water Meter (Cold)
Raw water containing solid particles
Dry Dial, Copper Can design with Frost protection
Simple on-site servicing
Flanged PN16
Click "See Details" for Pulse output options
Raw water containing solid particles
Dry Dial, Copper Can design with Frost protection
Simple on-site servicing
Flanged PN16
Click "See Details" for Pulse output options
Description
WPI-SDC-80
DN80 Irrigation Water Meter (Cold)
Raw water containing solid particles
Dry Dial, Copper Can design with Frost protection
Simple on-site servicing
Flanged PN16
Click "See Details" for Pulse output options
Raw water containing solid particles
Dry Dial, Copper Can design with Frost protection
Simple on-site servicing
Flanged PN16
Click "See Details" for Pulse output options
METER TYPE: Undershot Paddle Wheel Design
• Suitable for sandy/ dirty irrigation water
• MID approved ≤R40
• Replaceable "drop-in" mechanism
• Low Head Loss
• IP68 Ingress Protection
• Tamper Resistant design
• Tamper Resistant design
Specification
WPI-SDC-80
DN80 Irrigation Water Meter (Cold)
Raw water containing solid particles
Dry Dial, Copper Can design with Frost protection
Simple on-site servicing
Flanged PN16
Click "See Details" for Pulse output options
Raw water containing solid particles
Dry Dial, Copper Can design with Frost protection
Simple on-site servicing
Flanged PN16
Click "See Details" for Pulse output options
Q1 2.5m3/h , Q2 4m3/h , Q3 100m3/h , Q4 125m3/h
DIAL TYPE: SUPER-DRY DIAL (frost resistant)
METER BODY MATERIAL CAST IRON - epoxy coated
ACCURACY CLASS MI-001 ≤R40
INSTALLATION HORIZONTAL
CONNECTIONS DIN Flanged PN16 (others on request)
MAXIMUM PRESSURE 16 bar
MAXIMUM TEMPERATURE 30C
100, 1000 LITRES PER PULSE ~ Reed Switch
SECURITY TAMPER EVIDENT WIRE LOCK & SEAL
