Multi-Jet Water Meter Range


Multi-jet water flow meters, mechanical totalising mid-priced range of water flow sensors available in sizes: 1/2" - 2", with various pulse output options.Suitable for a variety of commercial & general purpose water metering applications.

Multi-jet water meters are highly accurate in small sizes and are commonly used between 1/2" to 2" sizes for domestic, residential and small light industrial users. Multi-jet water meters have several flow ports surrounding an internal chamber to create multiple jets of water against an impeller whose rotational speed depends on the velocity of the water flow. Multi-jets are very accurate at low flow rates, but are not suitable as large size meters since they do not have the straight-through flow path needed for the high flow rates used in larger bulk meters .

Multi-jet water flow meters generally have an internal strainer element that can protect the jet ports from getting clogged. Multi-jet flow meters normally have a bronze alloy body or Epoxy coated Cast Iron, with internal measuring components made from modern thermoplastic materials and stainless steel, all tested for compatibility with potable water requirements.

Measuring Instruments Directive 2004/22/EC
MID Approved :: Specifications according to OIML R49, EN14154 or ISO4064

WRAS Water Fittings Directory Listing

  MJ-SDC models have WRC-NSF and WRAS approval
Items: 17 of 7, per page
Drop items here to shop
Product has been added
SKU: MJ-SDC-15

DN15 Cold Multi-Jet Water Flow Meter (Dry Dial)
1/2" BSP Fittings
Dry Dial  Q3 2.5 m3/hour
Suitable for: Sub Metering / Light Industrial
MID Approved R80 T30
WRAS Approved Product
£49.50
£59.40 inc VAT
SKU: MJ-SDC-20

DN20 Multi-Jet Water Meter (Cold)
3/4" BSP Fittings
Dry Dial  Q3 4 m3/hour
Suitable for: Sub Metering / Light Industrial
MID Approved R80 T30
WRAS Approved Product

£55.00
£66.00 inc VAT
SKU: MJ-SDC-25

DN25 Multi-Jet Water Meter (Cold)
1" BSP Fittings
Dry Dial  Q3 6.3 m3/hour
Suitable for: Sub Metering / Light Industrial
MID Approved R80 T30
WRAS Approved Product
£82.50
£99.00 inc VAT
SKU: MJ-SDC-32

DN32 Multi-Jet Water Meter (Cold)
1 1/4" BSP Fittings
Dry Dial  Q3 10 m3/hour
Suitable for: Sub Metering / Light Industrial
MID Approved R80 T30
WRAS Approved Product

£93.50
£112.20 inc VAT
SKU: MJ-SDC-40

DN40 Multi-Jet Water Meter (Cold)
1 1/2" BSP Fittings
Dry Dial  Q3 16 m3/hour
Suitable for: Sub Metering / Light Industrial
MID Approved R80 T30
WRAS Approved Product
£121.00
£145.20 inc VAT
SKU: MJ-SDC-50

DN50 Multi-Jet Water Flow Meter (Cold)
2" BSP Fittings
Dry Dial  Q3 25 m3/hour
Suitable for: Sub Metering / Light Industrial
MID Approved R80 T30
WRAS Approved Product
£165.00
£198.00 inc VAT

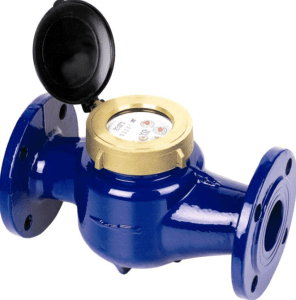

SKU: MJ-SDC-50/FL

DN50 Multi-Jet Water Meter (Cold)
2" DIN PN16 Flanged
Dry Dial  Q3 25 m3/hour
Suitable for: Sub Metering / Light Industrial
MID Approved R80 T30
WRAS Approved Product
£143.00
£171.60 inc VAT
