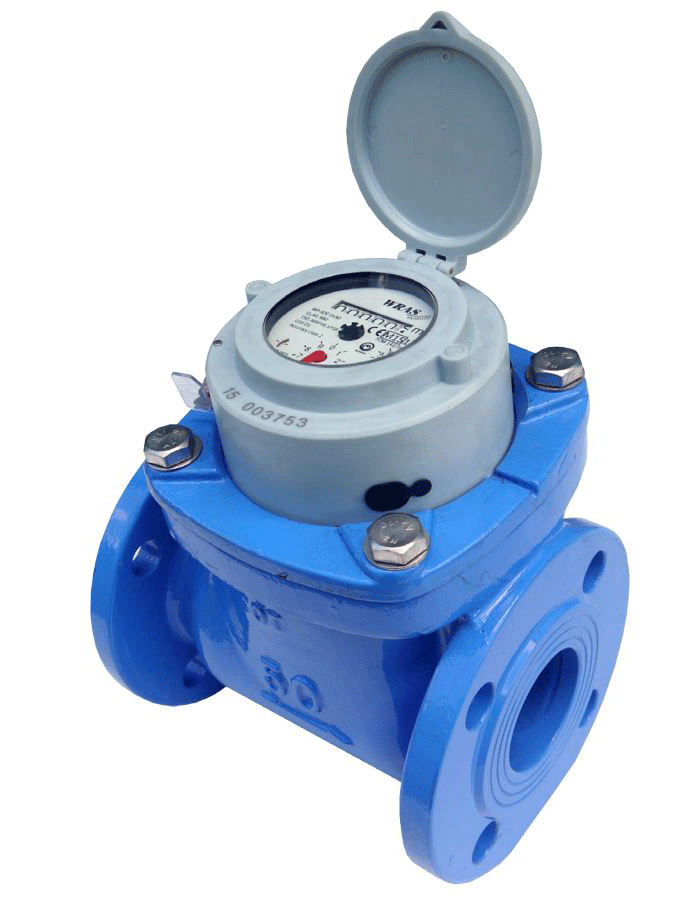

DN400 Woltmann Helix Water Meter (Cold) Dry Dial Flanged PN16 :: WRAS Approved, MID certified

DN400 Woltmann Helix Water Meter (Cold) Dry Dial Flanged PN16 :: WRAS Approved, MID certified

SKU: WP-SDC-400
WP-SDC-400

DN400 Woltmann Helix Water Meter (Cold)
Dry Dial - Frost Resistant design
Flanged PN16
Epoxy Coated Cast Iron
WRAS Approved, OIML MID certified
  • Pulse Output
  • £3638.25
  • £4365.90 inc VAT


Description

WP-SDC-400

DN400 Woltmann Helix Water Meter (Cold)
Dry Dial - Frost Resistant design
Flanged PN16
Epoxy Coated Cast Iron
WRAS Approved, OIML MID certified

MODEL: OMEGA
METER TYPE WOLTMANN HELIX ( Bulk Meter)


Woltmann "Bulk" water meters are ideally suited to higher flow rate applications requiring an extended measuring range capable meter. This model features a highly sensitive yet robust Helix insert mechanism which is capable of operation at relatively low flows with low velocity requirements, yet still able to cope with high overload flows.


Features::

  • Suitable for water distribution and industrial applications.
  • Wide measuring range
  • Potable Water Approved
  • MID Approved R80 T30
  • Suitable for water distribution and industrial applications
  • Low starting flow, high overload capability
  • Removable measuring insert "Drop in Design"
  • Low head loss
  • Long-term measuring stability
  • Tamper Evident Seals
  • Retrofittable with Reed Switch Pulser in two pulse value positions
  • Dry Dial, counter protected from condensation
  • Counter with large high visibility digits
  • Approved for water up to 30º C (Max 50º C)
  • Suitable for horizontal, vertical and inclined installation positions


Specification

    WP-SDC-400

    DN400 Woltmann Helix Water Meter (Cold)
    Dry Dial - Frost Resistant design
    Flanged PN16
    Epoxy Coated Cast Iron
    WRAS Approved, OIML MID certified



    Q1 20m3/h , Q2 32m3/h , Q3 1600m3/h , Q4 2000m3/h
    DIAL TYPE: SUPER-DRY DIAL (frost resistant)
    METER BODY MATERIAL CAST IRON - epoxy coated
    Drinking water approved (75/33/EEC)
    ACCURACY CLASS MI-001 R80
    INSTALLATION HORIZONTAL OR VERTICAL
    CONNECTIONS DIN Flanged PN16 (others on request)
    MAXIMUM PRESSURE 16 bar (PN10, PN25 options)
    MAXIMUM TEMPERATURE 30C
    10  100 m3 PER PULSE ~ Reed Switch
    SECURITY TAMPER EVIDENT WIRE LOCK & SEAL
