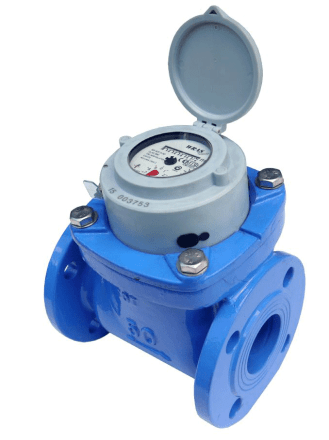

DN500 Woltmann Helix Water Meter (Cold) Dry Dial Flanged PN16 :: WRAS Approved, MID certified

DN500 Woltmann Helix Water Meter (Cold) Dry Dial Flanged PN16 :: WRAS Approved, MID certified

SKU: WP-SDC-500
WP-SDC-500

DN500 Woltmann Helix Water Meter (Cold)
Dry Dial - Frost Resistant design
Flanged PN16
Epoxy Coated Cast Iron
WRAS Approved, OIML MID certified
  • Pulse Output
  • £3960.00
  • £4752.00 inc VAT


Description


WP-SDC-500

DN500 Woltmann Helix Water Meter (Cold)
Dry Dial - Frost Resistant design
Flanged PN16
Epoxy Coated Cast Iron
WRAS Approved, OIML MID certified

MODEL: OMEGA
METER TYPE WOLTMANN HELIX ( Bulk Meter)


Woltmann "Bulk" water meters are ideally suited to higher flow rate applications requiring an extended measuring range capable meter. This model features a highly sensitive yet robust Helix insert mechanism which is capable of operation at relatively low flows with low velocity requirements, yet still able to cope with high overload flows. Models are suitable for either horizontal, vertical or inclined installation position, depending on requirements.



Features::

  • Suitable for water distribution and industrial applications.
  • Wide measuring range
  • Potable Water Approved
  • MID Approved R80 T30
  • Suitable for water distribution and industrial applications
  • Low starting flow, high overload capability
  • Removable measuring insert "Drop in Design"
  • Low head loss
  • Long-term measuring stability
  • Tamper Evident Seals
  • Retrofittable with Reed Switch Pulser in two pulse value positions
  • Dry Dial, counter protected from condensation
  • Counter with large high visibility digits
  • Approved for water up to 30º C (Max 50º C)
  • Suitable for horizontal, vertical and inclined installation positions


Specification

    WP-SDC-500

    DN500 Woltmann Helix Water Meter (Cold)
    Dry Dial - Frost Resistant design
    Flanged PN16
    Epoxy Coated Cast Iron
    WRAS Approved, OIML MID certified



    Q1 31.25m3/h , Q2 50m3/h , Q3 2500m3/h , Q4 3125m3/h
    DIAL TYPE: SUPER-DRY DIAL (frost resistant)
    METER BODY MATERIAL CAST IRON - epoxy coated
    Drinking water approved (75/33/EEC)
    ACCURACY CLASS MI-001 R80
    INSTALLATION HORIZONTAL OR VERTICAL
    CONNECTIONS DIN Flanged PN16 (others on request)
    MAXIMUM PRESSURE 16 bar (PN10, PN25 options)
    MAXIMUM TEMPERATURE 30C
    10   100 m3 PER PULSE ~ Reed Switch
    SECURITY TAMPER EVIDENT WIRE LOCK & SEAL
