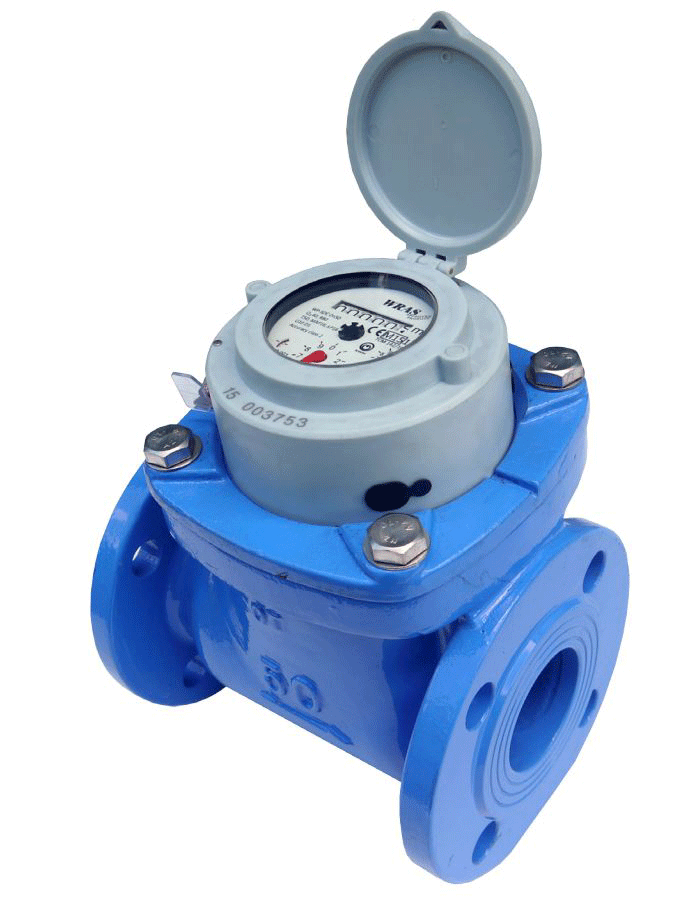

DN80 Woltmann Helix Water Meter (Cold) Dry Dial Flanged PN16 :: WRAS Approved, MID certified

DN80 Woltmann Helix Water Meter (Cold) Dry Dial Flanged PN16 :: WRAS Approved, MID certified

SKU: WP-SDC-80
WP-SDC-80

DN80 Woltmann Helix Water Meter (Cold)
Dry Dial - Frost Resistant design
Flanged PN16
Epoxy Coated Cast Iron
WRAS Approved, OIML MID certified
  • Pulse Output
  • £315.32
  • £378.38 inc VAT


Description


WP-SDC-80

DN80 Woltmann Helix Cold Water Meter
Dry Dial - Frost Resistant design
Flanged PN16
Epoxy Coated Cast Iron
WRAS Approved, OIML MID certified Cl 2

MODEL: OMEGA
METER TYPE WOLTMANN HELIX ( Bulk Meter)

Woltmann "Bulk" water meters are ideally suited to higher flow rate applications requiring an extended measuring range capable meter. Models feature a highly sensitive yet robust Helix insert mechanism which is capable of operation at relatively low flows with low velocity requirements, yet still able to cope with high overload flows. Meters are suitable for either horizontal, vertical and inclined installation position, depending on requirements.


Features::

♦ Suitable for water distribution and industrial applications.
♦ Wide measuring rangePortable Water Approved
♦ MID Approved R80 T30
♦ Suitable for water distribution and industrial applications
♦ Low starting flow, high overload capability
♦ Removable measuring insert "Drop in Design"
♦ Low head loss
♦ Long-term measuring stability
♦ Tamper Evident Seals
♦ Retrofittable with Reed Switch Pulser in two pulse value positions
♦ Dry Dial, counter protected from condensation
♦ Counter with large high visibility digits
♦ Approved for water up to 30º C (Max 50º C)
♦ Suitable for horizontal, vertical and inclined installation positions

Specification

    WP-SDC-80

    DN80 Woltmann Helix Water Meter (Cold)
    Dry Dial - Frost Resistant design
    Flanged PN16
    Epoxy Coated Cast Iron
    WRAS Approved, OIML MID certified




    Q1 0.788m3/h , Q2 1.26m3/h , Q3 63m3/h , Q4 78.75m3/h
     DIAL TYPE: SUPER-DRY DIAL (frost resistant)
     METER BODY MATERIAL CAST IRON - epoxy coated
     Drinking water approved (75/33/EEC)
    ACCURACY CLASS MI-001 R80
     INSTALLATION HORIZONTAL OR VERTICAL
    CONNECTIONS DIN Flanged PN16 (others on request)
    MAXIMUM PRESSURE 16 bar (PN10, PN25 options)
    MAXIMUM TEMPERATURE 30C
    100, 1000 LITRES PER PULSE ~ Reed Switch
    SECURITY TAMPER EVIDENT WIRE LOCK & SEAL
