ModMag® M5000 Battery Powered Electromagnetic Flow Meter :: DN32

ModMag® M5000 Battery Powered Electromagnetic Flow Meter :: DN32

SKU: 5M-A-012FECC1HAXO-SAAEDXWWXBASXX
ModMag® M5000
Battery Powered Electromagnetic Flow Meter:: DN32
Flow: 1.45 - 579 l/min
High accuracy and minimal pressure loss
Flanged connections (DIN or ANSI)
Choice of displays and output options
Up to 10 year battery life (optional 20 year)
Optional MID and OIML Approval

MCERTS Certified

  • £2087.40
  • £2504.88 inc VAT


Description


Battery Powered Electromagnetic Flow Meter:: DN32
ModMAG® | M5000

Flow: 1.45 - 579 l/min
High accuracy and minimal pressure loss
Flanged connections (DIN or ANSI)
Choice of displays and output options
Up to 10 year battery life (optional 20 year)
Optional MID and OIML Approval
Hard Rubber Liner (Optional PTFE or Soft Rubber) suitable for 0 to 80°C
Hastelloy C Measuring & Empty Pipe Electrodes
Carbon Steel Housing and flanges (Optional Stianless Steel)
IP67 protection or optional IP68

*Integral data logger available

Product Type by Code (For other options ask us for a quote)
 5M - M5000
Certification
 A - GENERAL SAFETY/PURPOSE
Meter Size
 012 - 1 1/4" / DN32
Process Connections
 FEC - EN1092-1 PN 16 Flanges
Base Material
 C1 - CARBON STEEL
Liner Material
 H - Hard Rubber
Electrodes
 A - Hastelloy C-22 (Standard / Measuring, Empty pipe & Grounding)
Grounding rings
 X - NO GND RINGS
Meter Lay Length
 S - STANDARD
Transmitter
 SA - SENSOR MOUNT; LOCAL DSP; AL ENCL; IP67
Power Supply
 AE - BAT (2-PK) ; DN 15 to DN 150
Hardware
 D - M20 THRD; NICKEL PLATED CABLE GLANDS
Junction Box
 X - NONE
Remote Cable Length
 WW - NONE
Input/Output Channel
 XBA - STD INPUT/OUTPUT
Communications
 S - Standard Communication (M-Bus)
Wiring Method
 XX - NONE STD
Programming
 EA - Standard (Default Metric units)


Testing & Tagging
F - 0.4%; 3-POINT; FACTORY CALIBRATED


The ModMAG® | M5000 is a battery-powered electromagnetic flow meter with very high accuracy even at very low flows.
The excellent repeatability as well as the above-average battery life makes this innovative water meter perfect for the water market.
Typical applications are leak detection in water networks, water consumption measurements and irrigation plants.

The meter is best suited to applications without a power supply where exact consumption or flow rates are required.
The ModMAG® | M5000 can also be used with an available power supply if required.
The meter can be powered with mains voltage and in case of a mains failure, is powered by an internal battery.
Important data is saved by this power back-up process.

The ModMAG® | M5000 is MID Approved and certified to comply with OIML R49-1 on request

Specification

    Battery Electromagnetic Flow Meter:: DN32
    ModMAG® | M5000
    Standard: PN16 Flanges, Hard Rubber Liner,
    Hastelloy C Measuring & Empty Pipe Electrodes
    Carbon Steel Housing, Amplifier/LCD Display & Outputs
    Badger Battery Mag
    10 Year Battery Life (20 Yr option)

    M5000 amplifier features:
    Accuracy: better than +/- 0,4%
    Display: LCD - 2 Lines (Rate/Total/Re-set)
    Housing: IP 67 / IP 68 Powder coated die-cast aluminium

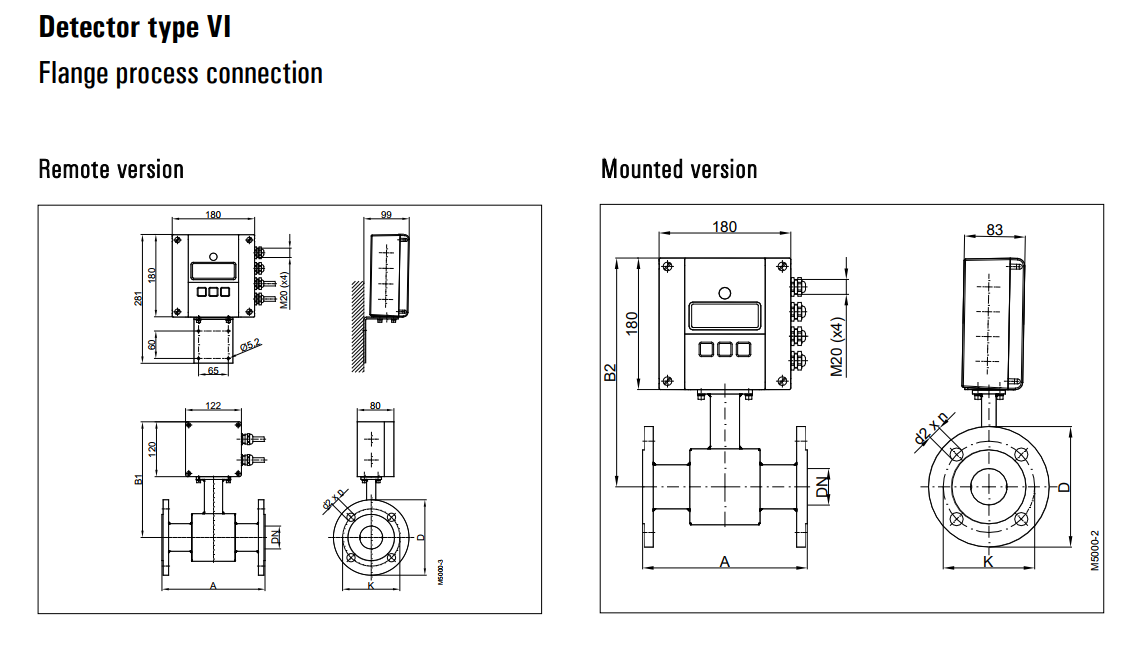

    Compact mounting on detector or remote mount kits.
    Interface: Standard - RS232, ModBus RTU, IrDA, M-Bus, RS 485
                      Optional - External AMR or GSM/GPRS module
    Data logger: Integral Data Loger
                           Accessable by additional software and communication cable
    Digital Outpus: 4x Open Collector
    Verification Device Available
    Optional MID M001, OIML R49-1 Certified
