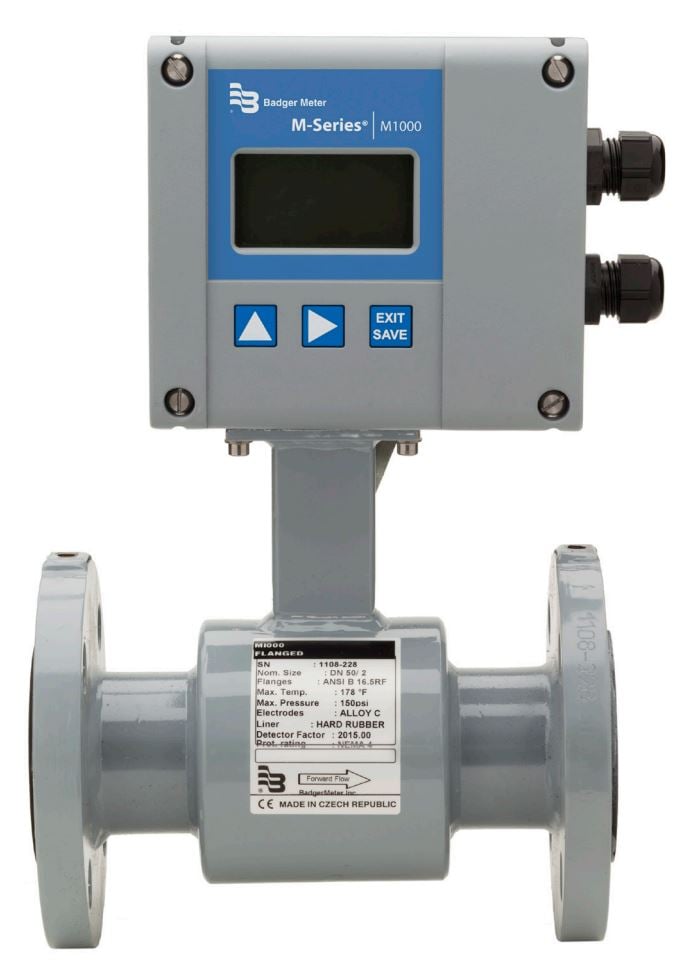

M1000 Electromagnetic Flow Meter:: DN500

M1000 Electromagnetic Flow Meter:: DN500

SKU: 1M-A-200FECC1HAXO-SAAACXWWDBARXX
M1000 Electromagnetic Flow Meter:: DN500
Flow: 21 - 8482 m3/hr
Accuracy ± 0.3%
PN16 Flanged connections (Various options available)
Hastalloy Electrodes, Hard Rubber Liner (Various Liners and Electrode options)
Empty Pipe Detection + GND Electrode
Local LCD (Remote options) IP67 protection or optional IP68
115/230V AC Powered (9-36V DC option)
Pulse, Alarms, 4-20mA, Modbus (Hart, Mbus, TCP/IP options)
WRAS Approved
  • £6475.60
  • £7770.72 inc VAT


Description


M1000 Electromagnetic Flow Meter:: DN500
Flow: 21 - 8482 m3/hr
Accuracy ± 0.3%
PN16 Flanged connections (Various options available)
Hastalloy Electrodes, Hard Rubber Liner (Various Liners and Electrode options)
Empty Pipe Detection + GND Electrode
Local LCD (Remote options) IP67 protection or optional IP68
115/230V AC Powered (9-36V DC option)
Pulse, Alarms, 4-20mA, Modbus (Hart, Mbus, TCP/IP options)
WRAS Approved

*Various communication protocols
*Integral data logging options available

The M1000 can be chosen for a broad spectrum of applications and the wide selection of liner and electrode materials provide maximum compatibility and minimum maintenance over a long operating period.

Code breakdown for this model (Ask for a quote for any other version)

Product Type
 1M - M1000
Certification
 A - GENERAL SAFETY/PURPOSE
Meter Size
 200 - 20" / DN500
Process Connections
 FEC - EN1092-1 PN 16 Flanges
Base Material
 C1 - CARBON STEEL
Liner Material
 H - HARD RUBBER
Electrodes
 A - Hastelloy C-22 (Standard / Measuring, Empty pipe & Grounding)
Grounding rings
 X - NO GND RINGS
Meter Lay Length
 S - STANDARD
Transmitter
 SA - SENSOR MOUNT; LOCAL DSP; AL ENCL; IP67
Power Supply
 AA - 110/220V AC
Hardware
 C - M20 THRD; POLY CABLE GLANDS
Junction Box
 X - NONE
Remote Cable Length
 WW - NONE
Input/Output Channel
 DBA - STD INPUT/OUTPUT
Communications
 R - STD COMMS
Wiring Method
 XX - NONE STD
Programming
 EA - Standard (Default Metric units)
Testing & Tagging
 F - 0,3%; 3-POINT; FACTORY CALIBRATED

Specification

    M1000 Electromagnetic Flow Meter:: DN500
    Accuracy ± 0.3%
    PN16 Flanged connections (Various options available)
    Hastalloy Electrodes, Hard Rubber Liner (Various Liners and Electrode options)
    Empty Pipe Detection + GND Electrode
    Local LCD (Remote options) IP67 protection or optional IP68
    115/230V AC Powered (9-36V DC option)
    Pulse, Alarms, 4-20mA, Modbus (Hart, Mbus, TCP/IP options)
    WRAS Approved

    FEATURES
    • Accuracy ± 0.3%
    • Flow range 0.03…12 m/s
    • Sizes 1/4 …20 in. (6…500 DN)
    • LCD display
    • Power supply 92…275V AC, 9…36V DC
    • RS-232, RS-485 and RS-422 with Modbus® RTU Optional Modbus TCP/IP, M-Bus or HART
    • Integrated data logger
    • BEACON®/AquaCUE® connectivity

    Amplifier :

    M1000 (up to DN500)
    Accuracy: ±0.3% of measured value
    Display: LCD showing actual flow rate with totalisers and status
    (min/max alarm, pre-selection, flow direction, empty pipe error).
    Digital Outputs: 2x Open collector, 1x relay
    Analogue Outputs: 0/4 - 20 mA, 0 - 10mA
    Interface: Standard - ModBus RTU RS232/RS485
                      Optional - HART, ModBus TCP/IP, M-Bus
    Power Supply: 9 - 36 VDC or 92 - 275 VAC
    Housing: IP67 Powder coated die-cast aluminium
    Compact mounting on detector or remote mount kits.
    Data logger: Internal data logger (30 000 measuring values)
    Accessable by additional software and communication cable
