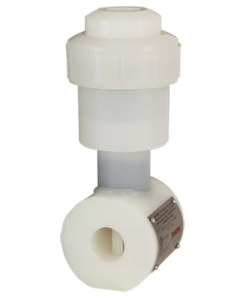

RVL Wafer End Fittings


The RVL series meter utilizes vortex-shedding technology to provide a repeatable flow measurement accurate to 1 percent of full scale. The meter has no moving parts, and any potential for fluid contamination is eliminated by the meter's corrosion-resistant all plastic construction. The meter includes a compact two-wire (4 - 20 mA) or three-wire (0 - 5 Volt DC or pulse) transmitter, contained within a conveniently replaceable plug-in electronic module. All electronics are housed in a corrosion-resistant enclosure.

Unlike meters containing metal or moving parts, the RVL is perfect for aggressive or easily contaminated fluids. Applications range from ultra-pure water to highly corrosive chemicals and slurries. Units may be re-calibrated and the meter output span reprogrammed in the field. RVL meters are available in the following materials of construction: CPVC, PVC, PVDF and Polypropylene (PP).

Items: 1–6 of 6
Show: 20
Sort by: Recommended
Drop items here to shop
Product has been added
Checkout
  • RVL Series Vortex flow meter Wafer end :: 1/2"
    RVL Series Vortex flow meter Wafer end :: 1/2"
    SKU: RVL050-W
    RVL Liquid Vortex Flow Meter, 1/2"
    Flow range: 4.7 - 56.8 l/min (1.3 - 15 USGal/min)
    Wafer End connections
    Output: 4-20mA or frequency pulse
    Accuracy: ± 1% of full scale, 4-20mA
                      ± 2% of full scale, frequency pulse
    Enclosure: IP 66 (NEMA 4X)
    Material: PVC, CPVC, Polypropylene or PVDF
    $1572.63
    $1887.16 inc VAT
  • RVL Series Vortex flow meter Wafer end :: 3/4"
    RVL Series Vortex flow meter Wafer end :: 3/4"
    SKU: RVL075-W
    RVL Liquid Vortex Flow Meter, 3/4"
    Flow range: 7.9 - 94.6 l/min (2.1 - 25 USGal/min)
    Wafer End connections
    Output: 4-20mA or frequency pulse
    Accuracy: ± 1% of full scale, 4-20mA
                      ± 2% of full scale, frequency pulse
    Enclosure: IP 66 (NEMA 4X)
    Material: PVC, CPVC, Polypropylene or PVDF

    $1572.63
    $1887.16 inc VAT
  • RVL Series Vortex flow meter Wafer end :: 1"
    RVL Series Vortex flow meter Wafer end :: 1"
    SKU: RVL100-W
    RVL Liquid Vortex Flow Meter, 1"
    Flow range: 15.8 - 189 l/min (4.2 - 50 USGal/min)
    Wafer End connections
    Output: 4-20mA or frequency pulse
    Accuracy: ± 1% of full scale, 4-20mA
                      ± 2% of full scale, frequency pulse
    Enclosure: IP 66 (NEMA 4X)
    Material: PVC, CPVC, Polypropylene or PVDF
    $2007.51
    $2409.01 inc VAT
  • RVL Series Vortex flow meter Wafer end :: 1-1/2"
    RVL Series Vortex flow meter Wafer end :: 1-1/2"
    SKU: RVL150-W
    RVL Liquid Vortex Flow Meter, 1-1/2"
    Flow range: 31.5 - 379 l/min (8.3 - 100 USGal/min)
    Wafer End connections
    Output: 4-20mA or frequency pulse
    Accuracy: ± 1% of full scale, 4-20mA
                      ± 2% of full scale, frequency pulse
    Enclosure: IP 66 (NEMA 4X)
    Material: PVC, CPVC, Polypropylene or PVDF


    $1798.50
    $2158.20 inc VAT
  • RVL Series Vortex flow meter Wafer end :: 2"
    RVL Series Vortex flow meter Wafer end :: 2"
    SKU: RVL200-W
    RVL Liquid Vortex Flow Meter, 2"
    Flow range: 63.1 - 757 l/min (16.7 - 200 USGal/min)
    Wafer End connections
    Output: 4-20mA or frequency pulse
    Accuracy: ± 1% of full scale, 4-20mA
                      ± 2% of full scale, frequency pulse
    Enclosure: IP 66 (NEMA 4X)
    Material: PVC, CPVC, Polypropylene or PVDF

    $2034.48
    $2441.38 inc VAT
  • RVL Series Vortex flow meter Wafer end :: 1/4"
    RVL Series Vortex flow meter Wafer end :: 1/4"
    SKU: RVL025-W
    RVL Liquid Vortex Flow Meter, 1/4"
    Flow range: 2.3 - 19 l/min (0.6 - 5 USGal/min)
    Wafer End connections
    Output: 4-20mA or frequency pulse
    Accuracy: ± 1% of full scale, 4-20mA
                      ± 2% of full scale, frequency pulse
    Enclosure: IP 66 (NEMA 4X)
    Material: PVC, CPVC, Polypropylene or PVDF
    $1808.61
    $2170.33 inc VAT
