EMLITE - ECA2 MID Single Phase kWh electricity meter
SKU: ECA2Single Phase 100AH Electricity Meter
Direct Connected Meter
Measures Import and Export Active Energy
voltage - 220 - 240v
Optional pulse output - 1 imp per Wh
MID approved - Class B
Can be used for Solar PV or micro generation
Description

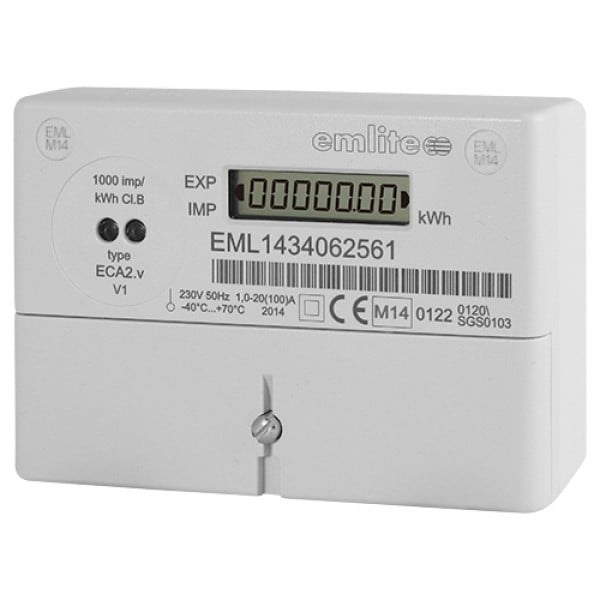

EMLITE ECA2 MID Single Phase kWh electricity meter
Single Phase 100AH Electricity Meter
Direct Connected Meter
Measures Import and Export Active Energy
voltage - 220 - 240v
Optional pulse output - 1 imp per Wh
MID approved - Class B
Can be used for Solar PV or micro generation
The ECA2 is a compact, wall mounted electricity flow meter suitable for single rate applications or Solar PV or micro generation applications. The Meter provides a digital display of the kWh usage, with a high level of accuracy MID approval -Class B. Tamper proof resistance ensure that the meter will provide high levels of accuracy over a long time period.

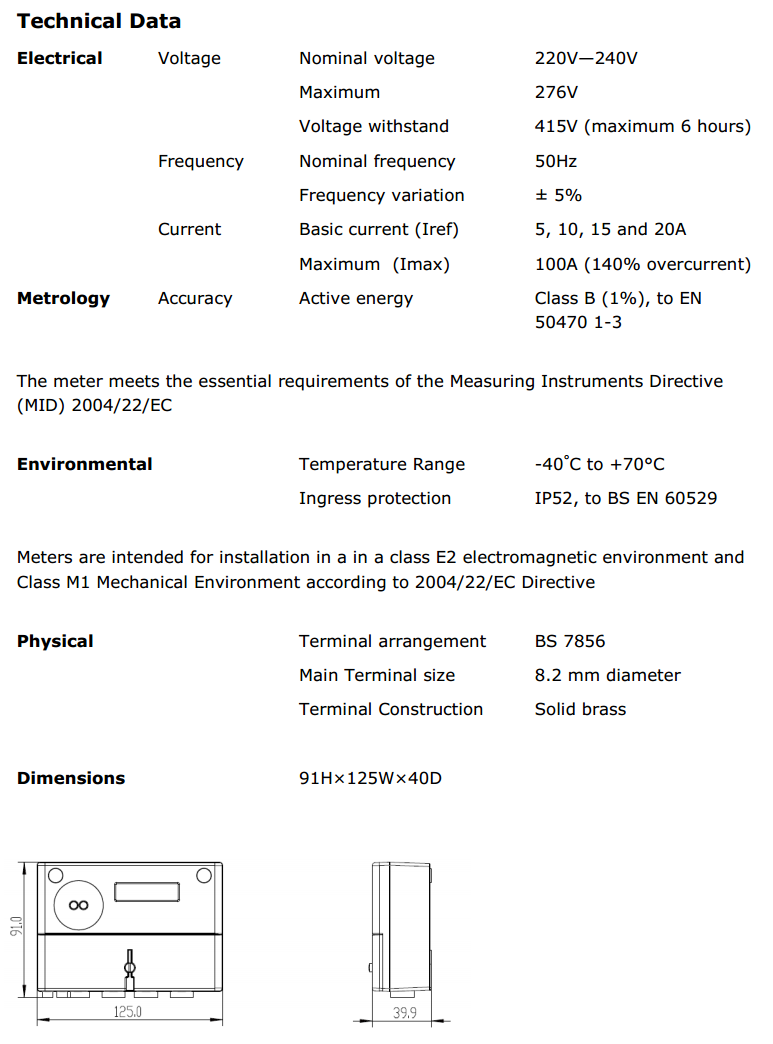

Specification
