SMARTPANEL-X835

• 96x96mm Panel Mounted |

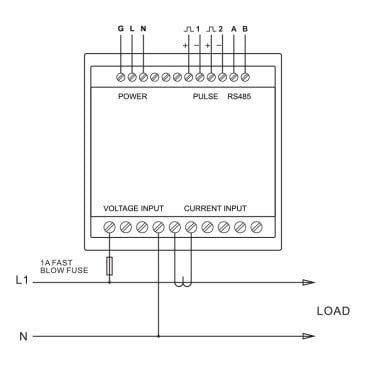

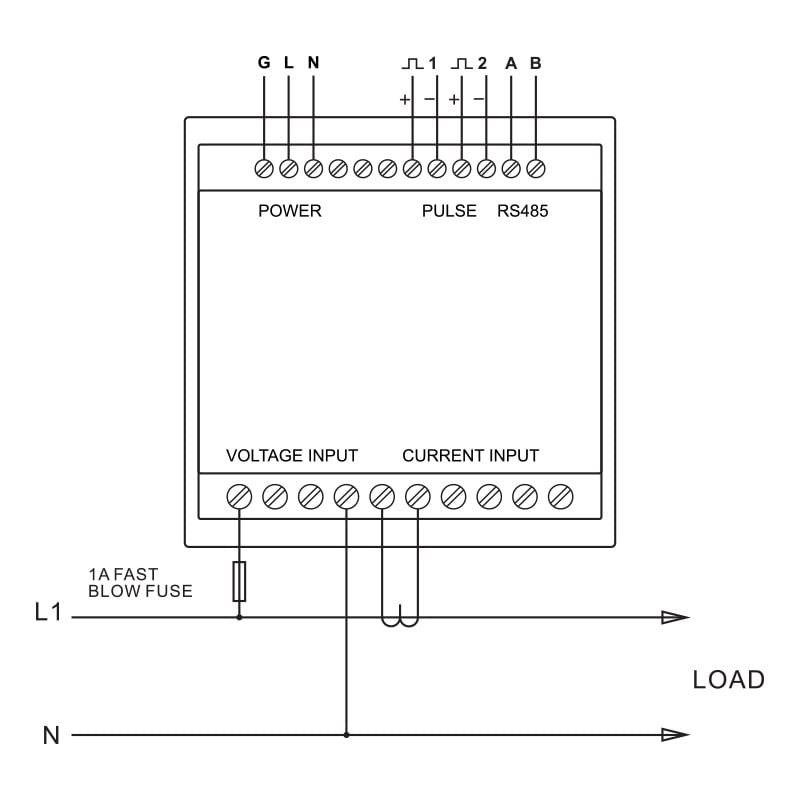

• Single Phase (1P2W) |
• Three Phase (3P3W) |

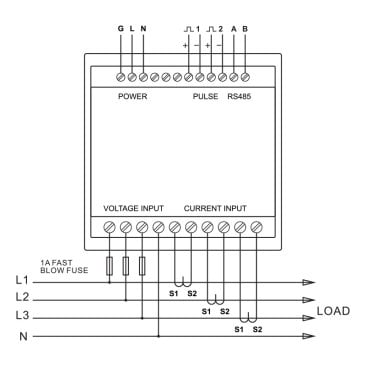

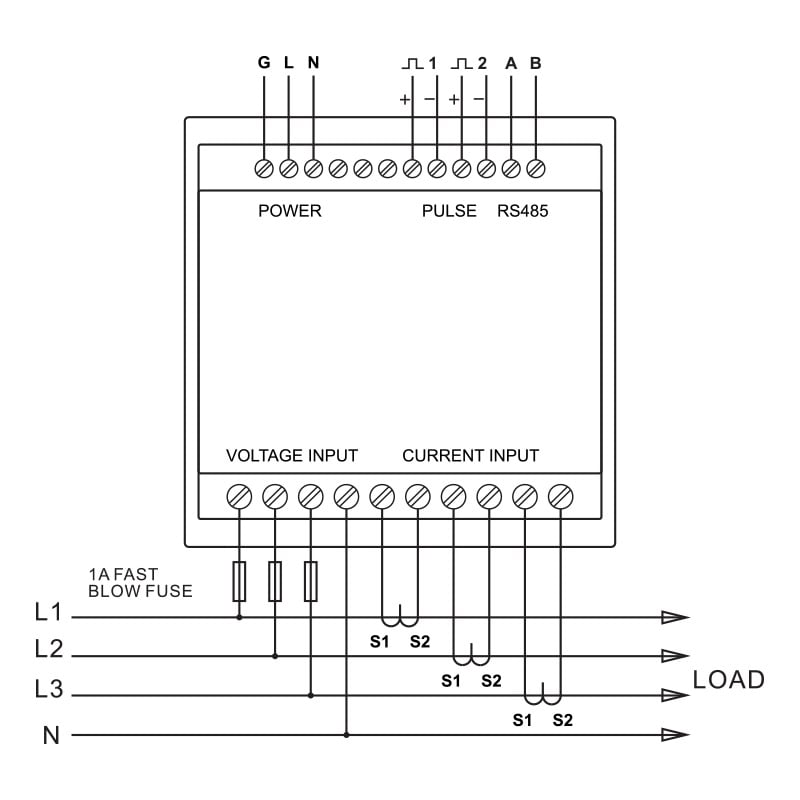

• Three Phase (3P4W) |
• Multifunction |
• 1A/5A Programmable CT Operated |
• 230/400V AC |
• 2 Digital Inputs |
• RS485 Modbus RTU |
• 96mm² Panel Mounted (92mm² Cut Out) |
• Digital Backlit Display |

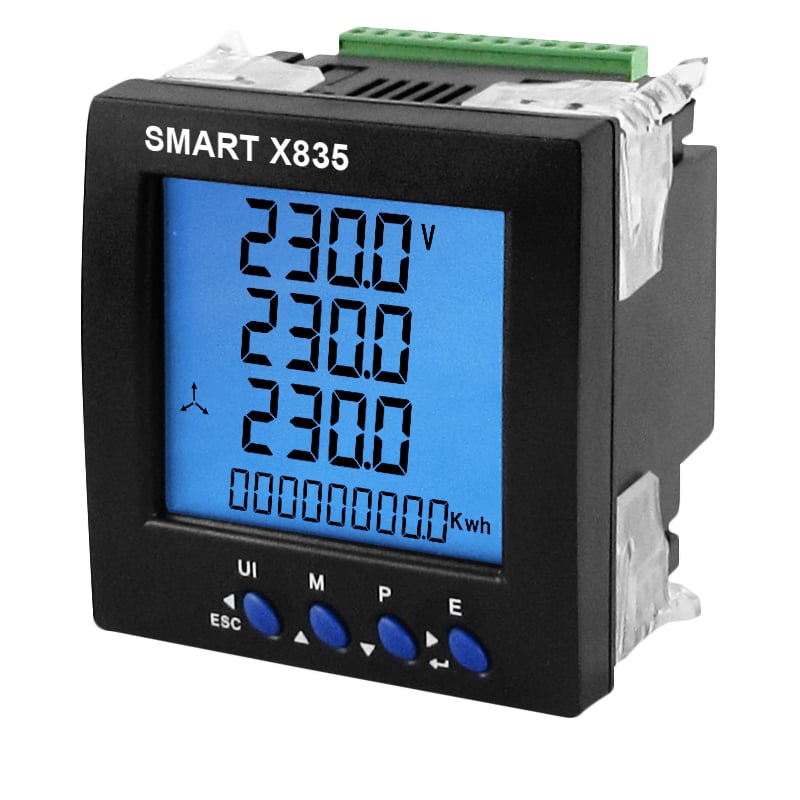

The X835 Panel Mounted Digital Power Meter has an easy to configure password-protected set up menu to and is ready to work in Single or Three Phase circuits. The meter itself works with 1A or 5A current transformers, which allow for quick and easy installation and even retro-fitting. It also comes with two digital inputs which can be used as totalising pulse count inputs or as digital status.

This meter conforms to the following standards, and has been tested in a UK laboratory.
EN61000-6-3:2007, EN61000-6-1:2007 and EN61010-1:2010 (EMC and LVD).
