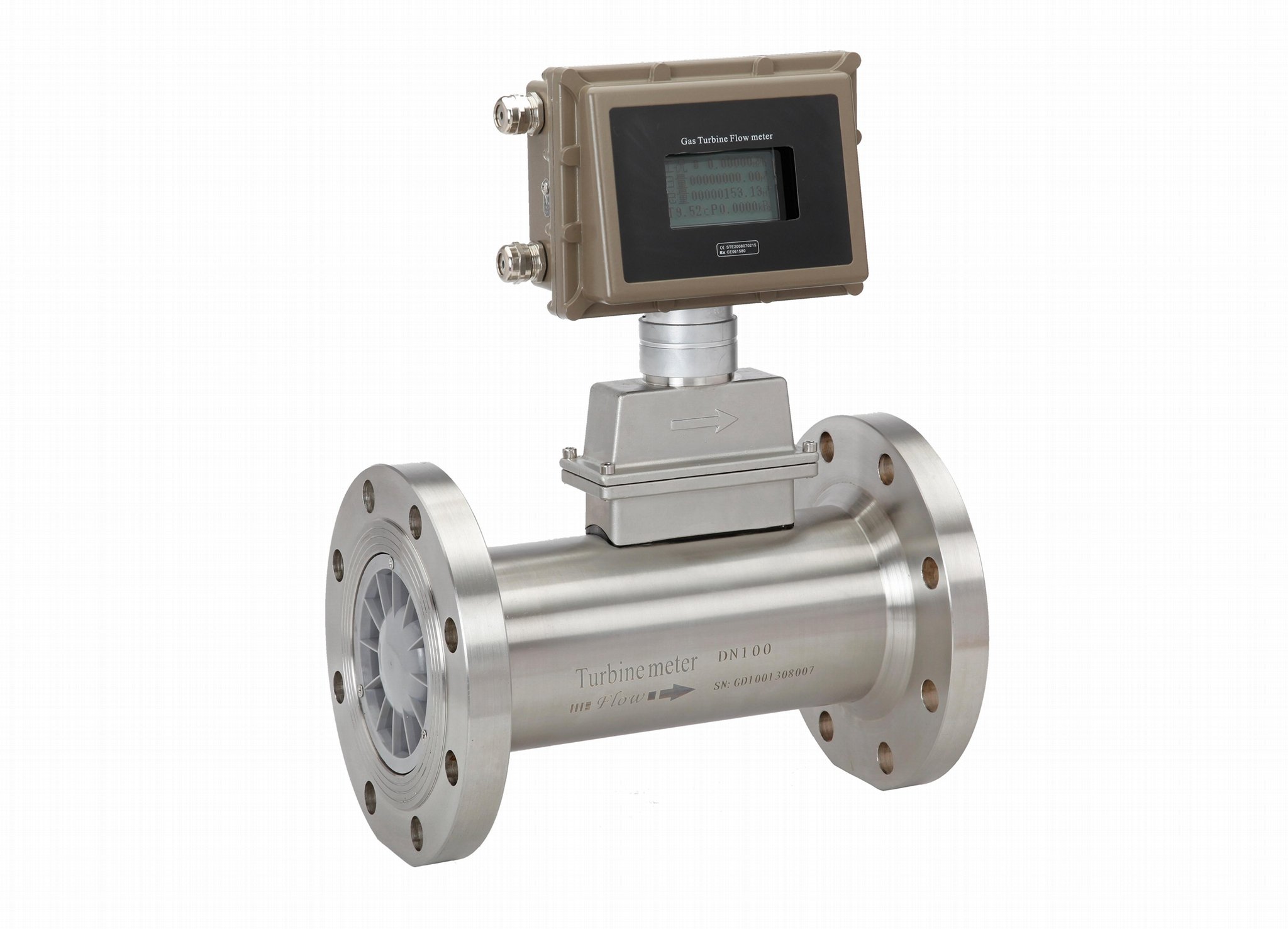

Stainless Steel Gas Flow Turbine Meter:: 150mm ID

SKU: BGFT-150
Gas Flow Turbine Meter:: 150mm ID
S1::Range 32 - 650 m3/Hr
S2::Range 50 - 1000 m3/Hr
W::Range 80 - 1600 m3/Hr (Extended option)
Stainless Steel Construction

Click "Specification" for Connection options / Accessories
  • Output / Display
  • Nominal Diameter
  • Measuring Range
  • Body Material
  • Rotor Material
  • Explosion Proof
  • Connections
  • Accuracy
  • £2382.83
  • £2859.40 inc VAT


Description


Gas Flow Turbine Meter:: 150mm ID
S1::Range 32 - 650 m3/Hr
S2::Range 50 - 1000 m3/Hr
W::Range 80 - 1600 m3/Hr (Extended option)

Stainless Steel Construction

Click "Specification" for Connection options / Accessories

The GLFT Gas Flow Meter is an Inferential measurement device suitable for monitoring dry gases and air flows. Each unit is individually calibrated for guaranteed accuracyof volumetric flow, with the option of compensated mass measurement via the optional flow computer
and meter mounted pressure and temperature sensors. These Rugged flow turbines feature a low pressure drop design and dynamic step change response to changes in flow.

Features ::

Performance

⊗ Repeatability:   ±0.2%
⊗ Accuracy:  Standard: ±1.5% of reading;
⊗ Optional: ±1% of reading
⊗ Max Temperature -20 to +80 Deg C
⊗ Ambient Temp -20 to +60 Deg C

Wetted Components

⊗ Housing:  Standard -  304 SS (Optional) 316 Stainless Steel
⊗ Bearings and Shaft:  304 Stainless Steel
⊗ Rotor:  ABS (Corrosion Resist) or Aluminium-Alloy
⊗ Retaining Rings:   304 Stainless Steel

Output Signal: (Where applicable)

⊗ Sensor: Pulse signal mV Sinwave (Coil)
⊗ Sensor: Pulse Signal Amplified Voltage Square Wave (OC)
⊗ Transmitter: 4 to 20 mA DC current signal



Wide choice of displays available with features including Batch Control, Flow Curve Linearisation,
Ratio Control, Compensated Flow readings, Hi/Low Alarms and various communications protocols



Specification

    Model Specs





    Gas: Natural Gas, LPG, Air

    Application range

    (1) Dry gas without moisture



    (2) Gas without pipeline corrosion and debris

    Measured Value

    Primary measured value

    Flow Rate

    Secondary measured value

    Volume flow

    Tertiary measured value

    Temperature and/or Pressure

    (ONLY available on compensation flow computer model)



    Features



    Modular construction

    The measurement system consists of a flow sensor and

    a signal converter.

    It is available as blind with choice of signal or as Compact and Remote LCD Version

    Compact version

    converter









    N Type: Pulse output without display

    A Type: 4 to 20mA Output without local display

    B Type: Local Display; Lithium Battery Power; No Output

    C Type: Local Display; 24V DC Power; 4 to 20mA Output;

    Optional Function:

    (1) Backup Power Supply: Lithium Battery

    (2) Modbus RS485

    (3) Pulse Output

    Compensation Type D1: Local Display; 24V DC Power;

    Dual Power: Battery; 4 to 20mA Output (3 wire);

    SIRE RS485 D2: Local Display: 24V DC Power; Dual Power:

    Battery;

     4 to 20mA Output (2 wire); Modbus RS485

    Connection

    Threaded or flanged option: DN25 to DN50

    Flanged: DN25 to DN300 (DIN, ANSI, JIS)

    Measurement Ratio

    Standard:   10:1 or Optional: 20:1



    Operating conditions



    Temperature

    Process temperature

    minus 20...+80°C

    Ambient temperature

    Standard (with aluminium converter housing):

    (all versions)

    Minus 10…+55°C

    Storage temperature

    Minus 20...+70°

    Pressure

    EN 1092

    DN25…DN300: PN 16



    Other pressures on request

    ASME B16.5

    1”...12": 150 lb RF



    Other flabge types / pressures on request

    JIS

    1”...12": 10 K



    Other pressures on request



    Materials



     Sensor Housing

    Stainless Steel 304

    Other materials on request

     Flanges

    SS304

    Other materials on request



     Rotor

    ABS Plastic (Acrylonitrile Butadiene  Styrene)

    Aluminium Alloy

    Bearings and Shaft

    Stainless Steel 304

    Converter Housing

    Standard: polyurethane coated diecast aluminium
