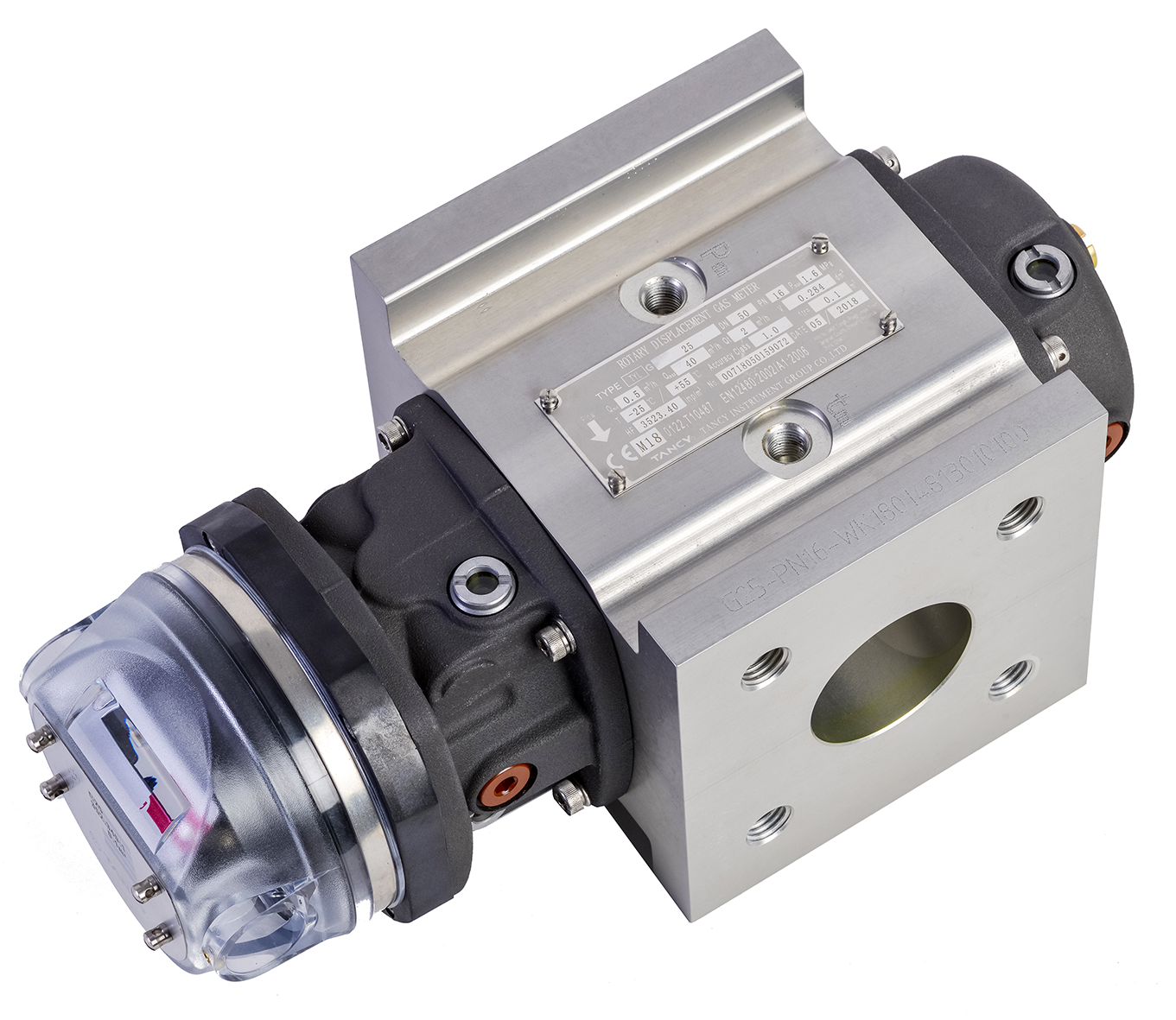

TYL Rotary Gas Flow Meters

The TYL rotary displacement gas flow meter is designed for fiscal metering of natural gas and is approved according to the European requirements of EN12480, MID (2004/22/EG) and OIML R137-1 & 2: 2012. The MRM rotary displacement gas meter is suitable to be installed in hazardous areas of Category 2 (Zone 1) II 2 G c IIC T4 X. The TYL rotary displacement gas meter is suitable for the following gases:

• Natural gas, town gas, propane, butane, ethylene, air, nitrogen.
• Further gases on request.

Rotary gas meters are characterized by their very compact design and high accuracy. The TYL rotary meter requires no inlet or outlet straight pipe lengths or flow conditioning and is insensitive to severe gas flow fluctuations. The service life and performace of the TYL rotary meter are very reliable and stable due to the large dimensioned high precision ball bearings “Made in Germany” along with the high precision tolerances of the body and all moving parts machined on state of the art CNC machines “Made in Germany”. All aluminium parts are hard anodized for less friction and higher resistance to wear and tear.

from

Clear all

Sort by:Recommended

TYL - Rotary Gas Flow Meter :: DN25, G10
SKU: TYL-G10-DN25
Rotary Gas Meter :: DN25, G10
Nominal Size: DN25
Meter Size: G10
Pressure Class: PN16
Measuring range: 20:1, 0.8 - 16m3/h
MID (2004/22/EG), OIML R137-1 & 2: 2012, ATEX Ex-Zone 1
Meter housing: Aluminium
Pistons: Aluminium
Synchronisation Wheels: Stainless Steel
Index head: Composite, 8-digit, 355 degree Rotation
Sensor Included: 1xLF (Reed) Typ 10 Imp/m3
£1364.17
£1637.00 inc VAT
TYL - Rotary Gas Flow Meter :: DN40, G16
SKU: TYL-G16-DN40
Nominal Size: DN40
Meter Size: G16
Pressure Class: PN16
Measuring range: 50:1, 0.5 - 25 m3/h
MID (2004/22/EG), OIML R137-1 & 2: 2012, ATEX Ex-Zone 1
Meter housing: Aluminium
Pistons: Aluminium
Synchronisation Wheels: Stainless Steel
Index head: Composite, 8-digit, 355 degree Rotation
Sensor Included: 1xLF (Reed) Typ 10 Imp/m3
£1500.59
£1800.71 inc VAT
TYL- Rotary Gas Flow Meter :: DN40, G25
SKU: TYL-G25-DN40
Nominal Size: DN40
Meter Size: G25
Pressure Class: PN16
Measuring range: 50:1, 0.8 - 40 m3/h
MID (2004/22/EG), OIML R137-1 & 2: 2012, ATEX Ex-Zone 1
Meter housing: Aluminium
Pistons: Aluminium
Synchronisation Wheels: Stainless Steel
Index head: Composite, 8-digit, 355 degree Rotation
Sensor Included: 1xLF (Reed) Typ 10 Imp/m3
£1564.25
£1877.10 inc VAT
TYL - Rotary Gas Flow Meter :: DN40, G40
SKU: TYL-G40-DN40
Nominal Size: DN40
Meter Size: G40
Pressure Class: PN16
Measuring range: 50:1, 1.3 - 65 m3/h
MID (2004/22/EG), OIML R137-1 & 2: 2012, ATEX Ex-Zone 1
Meter housing: Aluminium
Pistons: Aluminium
Synchronisation Wheels: Stainless Steel
Index head: Composite, 8-digit, 355 degree Rotation
Sensor Included: 1xLF (Reed) Typ 10 Imp/m3
£1591.54
£1909.85 inc VAT
TYL - Rotary Gas Flow Meter :: DN50, G16
SKU: TYL-G16-DN50
Nominal Size: DN50
Meter Size: G16
Pressure Class: PN16
Measuring range: 50:1, 0.5 - 25m3/h
MID (2004/22/EG), OIML R137-1 & 2: 2012, ATEX Ex-Zone 1
Meter housing: Aluminium
Pistons: Aluminium
Synchronisation Wheels: Stainless Steel
Index head: Composite, 8-digit, 355 degree Rotation
Sensor Included: 1xLF (Reed) Typ 10 Imp/m3
£1500.59
£1800.71 inc VAT
TYL - Rotary Gas Flow Meter :: DN50, G25
SKU: TYL-G25-DN50
Nominal Size: DN50
Meter Size: G25
Pressure Class: PN16
Measuring range: 50:1, 0.8 - 40m3/h
MID (2004/22/EG), OIML R137-1 & 2: 2012, ATEX Ex-Zone 1
Meter housing: Aluminium
Pistons: Aluminium
Synchronisation Wheels: Stainless Steel
Index head: Composite, 8-digit, 355 degree Rotation
Sensor Included: 1xLF (Reed) Typ 10 Imp/m3
£1564.25
£1877.10 inc VAT
TYL - Rotary Gas Flow Meter :: DN50, G40
SKU: TYL-G40-DN50
Nominal Size: DN50
Meter Size: G40
Pressure Class: PN16
Measuring range: 50:1, 1.3 - 65 m3/h
MID (2004/22/EG), OIML R137-1 & 2: 2012, ATEX Ex-Zone 1
Meter housing: Aluminium
Pistons: Aluminium
Synchronisation Wheels: Stainless Steel
Index head: Composite, 8-digit, 355 degree Rotation
Sensor Included: 1xLF (Reed) Typ 10 Imp/m3
£1591.54
£1909.85 inc VAT
TYL - Rotary Gas Flow Meter :: DN50, G65
SKU: TYL-G65-DN50
Nominal Size: DN50
Meter Size: G65
Pressure Class: PN16
Measuring range: 50:1, 2 - 100 m3/h
MID (2004/22/EG), OIML R137-1 & 2: 2012, ATEX Ex-Zone 1
Meter housing: Aluminium
Pistons: Aluminium
Synchronisation Wheels: Stainless Steel
Index head: Composite, 8-digit, 355 degree Rotation
Sensor Included: 1xLF (Reed) Typ 10 Imp/m3
£1648.38
£1978.06 inc VAT
TYL - Rotary Gas Flow Meter :: DN80, G100
SKU: TYL-G100-DN80
Nominal Size: DN80
Meter Size: G100
Pressure Class: PN16
Measuring range: 50:1, 3.2 - 160 m3/h
MID (2004/22/EG), OIML R137-1 & 2: 2012, ATEX Ex-Zone 1
Meter housing: Aluminium
Pistons: Aluminium
Synchronisation Wheels: Stainless Steel
Index head: Composite, 8-digit, 355 degree Rotation
Sensor Included: 1xLF (Reed) Typ 1 Imp/m3
£1705.22
£2046.26 inc VAT
TYL - Rotary Gas Flow Meter :: DN80, G160
SKU: TYL-G160-DN80
Nominal Size: DN80
Meter Size: G160
Pressure Class: PN16
Measuring range: 50:1, 5 - 250 m3/h
MID (2004/22/EG), OIML R137-1 & 2: 2012, ATEX Ex-Zone 1
Meter housing: Aluminium
Pistons: Aluminium
Synchronisation Wheels: Stainless Steel
Index head: Composite, 8-digit, 355 degree Rotation
Sensor Included: 1xLF (Reed) Typ 1 Imp/m3
£2569.19
£3083.03 inc VAT
TYL - Rotary Gas Flow Meter :: DN100, G160
SKU: TYL-G160-DN100
Nominal Size: DN100
Meter Size: G160
Pressure Class: PN16
Measuring range: 50:1, 5 - 250 m3/h
MID (2004/22/EG), OIML R137-1 & 2: 2012, ATEX Ex-Zone 1
Meter housing: Aluminium
Pistons: Aluminium
Synchronisation Wheels: Stainless Steel
Index head: Composite, 8-digit, 355 degree Rotation
Sensor Included: 1xLF (Reed) Typ 1 Imp/m3
£2769.27
£3323.12 inc VAT
TYL - Rotary Gas Flow Meter :: DN100, G250
SKU: TYL-G250-DN100
Nominal Size: DN100
Meter Size: G250
Pressure Class: PN16
Measuring range: 50:1, 8 - 400 m3/h
MID (2004/22/EG), OIML R137-1 & 2: 2012, ATEX Ex-Zone 1
Meter housing: Aluminium
Pistons: Aluminium
Synchronisation Wheels: Stainless Steel
Index head: Composite, 8-digit, 355 degree Rotation
Sensor Included: 1xLF (Reed) Typ 1 Imp/m3
£3740.11
£4488.13 inc VAT
TYL - Rotary Gas Flow Meter :: DN100, G400
SKU: TYL-G400-DN100
Nominal Size: DN100
Meter Size: G400
Pressure Class: PN16
Measuring range: 50:1, 13 - 650 m3/h
MID (2004/22/EG), OIML R137-1 & 2: 2012, ATEX Ex-Zone 1
Meter housing: Aluminium
Pistons: Aluminium
Synchronisation Wheels: Stainless Steel
Index head: Composite, 8-digit, 355 degree Rotation
Sensor Included: 1xLF (Reed) Typ 1 Imp/m3
£6138.78
£7366.54 inc VAT
TYL - Rotary Gas Flow Meter :: DN150, G400
SKU: TYL-G400-DN150
Nominal Size: DN150
Meter Size: G400
Pressure Class: PN16
Measuring range: 50:1, 13 - 650 m3/h
MID (2004/22/EG), OIML R137-1 & 2: 2012, ATEX Ex-Zone 1
Meter housing: Aluminium
Pistons: Aluminium
Synchronisation Wheels: Stainless Steel
Index head: Composite, 8-digit, 355 degree Rotation
Sensor Included: 1xLF (Reed) Typ 1 Imp/m3
£10322.24
£12386.69 inc VAT
TYL - Rotary Gas Flow Meter :: DN150, G650
SKU: TYL-G650-DN150
Nominal Size: DN25
Meter Size: G10
Pressure Class: PN16
Measuring range: 50:1, 20 - 1000 m3/h
MID (2004/22/EG), OIML R137-1 & 2: 2012, ATEX Ex-Zone 1
Meter housing: Aluminium
Pistons: Aluminium
Synchronisation Wheels: Stainless Steel
Index head: Composite, 8-digit, 355 degree Rotation
Sensor Included: 1xLF (Reed) Typ 10 Imp/m3
£11174.85
£13409.82 inc VAT
TYL - Rotary Gas Flow Meter :: DN200, G100
SKU: TYL-G1000-DN200
Nominal Size: DN200
Meter Size: G100
Pressure Class: PN16
Measuring range: 50:1, 32 - 1600 m3/h
MID (2004/22/EG), OIML R137-1 & 2: 2012, ATEX Ex-Zone 1
Meter housing: Aluminium
Pistons: Aluminium
Synchronisation Wheels: Stainless Steel
Index head: Composite, 8-digit, 355 degree Rotation
Sensor Included: 1xLF (Reed) Typ 1 Imp/m3
£12902.81
£15483.37 inc VAT
