MFGD INDUSTRIAL GAS METERS :: Battery, Aluminium DN25 - DN80


MFGD THERMAL MASS FLOW MEASUREMENT ::  MEMS TECHNOLOGY

A range of Battery Powered (and 8-24VDC) Digital Gas Flow meters for light industrial gas measurement applications, featuring ultra-low pressure drop design.

This range of digital gas flow meters has been designed to accurately measure gas flow rates using the latest proprietary MEMS technology from Siargo- California. These Mass Gas flow sensors are configured with multiple sensing elements providing additional aspects of flow information that traditional approaches cannot achieve. These sensors are designed for reliability, wide dynamic range, low power consumption, long life and simple installation.

• Lowest Pressure loss in class
• Aluminium Construction
• Specially designed for natural gas metering (Also suitable for other gases)
• True Mass Flow Measurement
• Integrated MEMS sensors for extended rangeability
• Proprietary low power technology ensures extremely long battery life
• Patented Gas recognition Algorithm
• Mobus RS485 Option
• Pulse Output Option
Items: 1–7 of 7
Show: 20
Sort by: Recommended
Drop items here to shop
Product has been added
Checkout

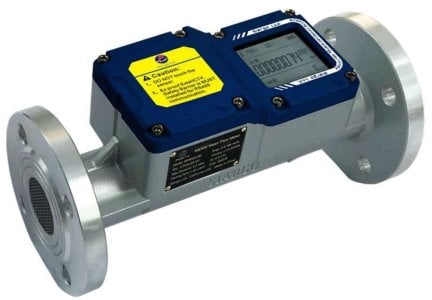

  • Digital Gas Flow Meter:: DN25, 0.1 - 40 Nm3/hr 1" Flanged Connections
    Digital Gas Flow Meter:: DN25, 0.1 - 40 Nm3/hr 1" Flanged Connections
    SKU: MF25GD
    Digital Gas Flow Meter:: DN25, 0.1 - 40 Nm3/hr
    (Various Flow ranges 100:1 Turndown) Ultra low pressure drop design
    Thermal Mass Flow Measurement Principle
    Patented Automatic Gas type recognition Algorithm
    Digital Display : Rate, Total, Accumulated Total
    1" PN16 Flanges  (300mm Face to Face Length)
    >3yr Battery Life or 8-24V DC Option

    Pulse Output and Modbus RS485 options
    $931.25
    $1117.50 inc VAT
  • Digital Gas Flow Meter:: DN40, 0.25 - 65 Nm3/hr 1 1/2" Flanged Connections
    Digital Gas Flow Meter:: DN40, 0.25 - 65 Nm3/hr 1 1/2" Flanged Connections
    SKU: MF40GD
    Digital Gas Flow Meter:: DN40, 0.25 - 65 Nm3/hr
    (Various Flow ranges 100:1 Turndown) Ultra low pressure drop design
    Thermal Mass Flow Measurement Principle
    Patented Automatic Gas type recognition Algorithm
    Digital Display : Rate, Total, Accumulated Total
    1 1/2" PN16 Flanges  (320mm Face to Face Length)
    >3yr Battery Life or 8-24V DC Option

    Pulse Output and Modbus RS485 options
    $993.75
    $1192.50 inc VAT
  • Digital Gas Flow Meter:: DN50, 0.4 - 80 Nm3/hr 2" Flanged Connections
    Digital Gas Flow Meter:: DN50, 0.4 - 80 Nm3/hr 2" Flanged Connections
    SKU: MF50GD
    Digital Gas Flow Meter:: DN50, 0.4 - 80 Nm3/hr
    (Various Flow ranges 100:1 Turndown) Ultra low pressure drop design
    Thermal Mass Flow Measurement Principle
    Patented Automatic Gas type recognition Algorithm
    Digital Display : Rate, Total, Accumulated Total
    2" PN16 Flanges  (340mm Face to Face Length)
    >3yr Battery Life or 8-24V DC Option

    Pulse Output and Modbus RS485 options
    $1093.75
    $1312.50 inc VAT
  • Digital Gas Flow Meter:: DN80, 1 - 160 Nm3/hr 3" Flanged Connections
    Digital Gas Flow Meter:: DN80, 1 - 160 Nm3/hr 3" Flanged Connections
    SKU: MF80GD
    Digital Gas Flow Meter:: DN80, 1 - 160 Nm3/hr
    (Various Flow ranges 100:1 Turndown) Ultra low pressure drop design
    Thermal Mass Flow Measurement Principle
    Patented Automatic Gas type recognition Algorithm
    Digital Display : Rate, Total, Accumulated Total
    3" PN16 Flanges  (340mm Face to Face Length)
    >3yr Battery Life or 8-24V DC Option

    Pulse Output and Modbus RS485 options
    $1431.25
    $1717.50 inc VAT

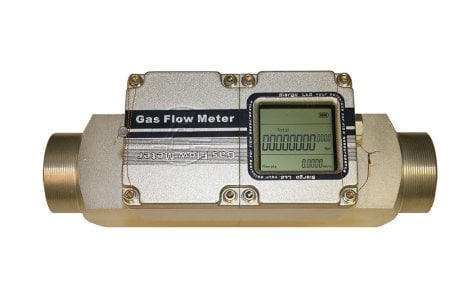

  • Digital Gas Flow Meter:: DN32, 0.16 - 16 Nm3/hr, 1 1/4" BSP Connections
    Digital Gas Flow Meter:: DN32, 0.16 - 16 Nm3/hr, 1 1/4" BSP Connections
    SKU: MF32GD16
    Digital Gas Flow Meter:: DN32, 0.16 - 16 Nm3/hr
    Thermal Mass Flow Measurement,
    Digital Display
    1 1/4" BSP Connections

    Pulse and RS485 outputs available
    $899.79
    $1079.75 inc VAT
  • Digital Gas Flow Meter:: DN32, 0.25 - 25 Nm3/hr, 1 1/4" BSP Connections
    Digital Gas Flow Meter:: DN32, 0.25 - 25 Nm3/hr, 1 1/4" BSP Connections
    SKU: MF32GD25
    Digital Gas Flow Meter:: DN32, 0.25 - 25 Nm3/hr
    Thermal Mass Flow Measurement,
    Digital Display
    1 1/4" BSP Connections

    Pulse and RS485 outputs available
    $899.79
    $1079.75 inc VAT
  • Digital Gas Flow Meter:: DN65, 1.0 - 100 Nm3/hr, 2" BSP Connections
    Digital Gas Flow Meter:: DN65, 1.0 - 100 Nm3/hr, 2" BSP Connections
    SKU: MF65GD100
    Digital Gas Flow Meter:: DN65, 1.0 - 100 Nm3/hr
    Thermal Mass Flow Measurement,
    Digital Display

    Pulse and RS485 outputs available
    $1075.83
    $1290.99 inc VAT
