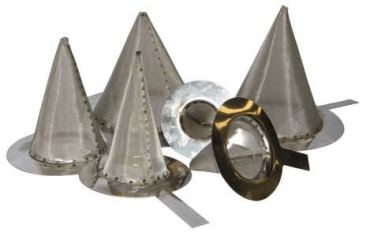

Top Hat Cone Filter 100mm

Nominal Size: DN100
Meter Size: G160
Connections: Wafer Design
Max Operating Pressure: 20 Bar (Dependent on connections)
Measuring range: 12.5 - 250 m3/h
PED (PED2014/68/EU), ATEX Ex-Zone 1
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensor Included: 1xLF (Reed) Typ 1 Imp/m3

Nominal Size: DN100
Meter Size: G250
Connections: Wafer Design
Max Operating Pressure: 20 Bar (Dependent on connections)
Measuring range: 20 - 400 m3/h
PED (PED2014/68/EU), ATEX Ex-Zone 1
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensor Included: 1xLF (Reed) Typ 1 Imp/m3

Nominal Size: DN100
Meter Size: G400
Connections: Wafer Design
Max Operating Pressure: 20 Bar (Dependent on connections)
Measuring range: 32 - 650 m3/h
PED (PED2014/68/EU), ATEX Ex-Zone 1
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensor Included: 1xLF (Reed) Typ 1 Imp/m3

Nominal Size: DN100
Meter Size: G160
Connections: Wafer Design
Max Operating Pressure: 20 Bar (Dependent on connections)
Measuring range: 12.5 - 250 m3/h
PED (PED 2014/68/EU),ATEX / IECEx Ex-Zone 0; Ex ia IIC T4 Ga
Meter housing, Turbine blade: Aluminium
LCD Display (EVC), P & T sensors included
Pulse output: 1xLF(Reed) 1 Imp/m3 and 1xHF option
Comms: RS 485 or M-Bus interface, 4-20mA(Ext pwr required)

Nominal Size: DN100
Meter Size: G250
Connections: Wafer Design
Max Operating Pressure: 20 Bar (Dependent on connections)
Measuring range: 20 - 400 m3/h
PED (PED 2014/68/EU),ATEX / IECEx Ex-Zone 0; Ex ia IIC T4 Ga
Meter housing, Turbine blade: Aluminium
LCD Display (EVC), P & T sensors included
Pulse output: 1xLF(Reed) 1 Imp/m3 and 1xHF option
Comms: RS 485 or M-Bus interface, 4-20mA(Ext pwr required)

Nominal Size: DN100
Meter Size: G400
Connections: Wafer Design
Max Operating Pressure: 20 Bar (Dependent on connections)
Measuring range: 32 - 650 m3/h
PED (PED 2014/68/EU),ATEX / IECEx Ex-Zone 0; Ex ia IIC T4 Ga
Meter housing, Turbine blade: Aluminium
LCD Display (EVC), P & T sensors included
Pulse output: 1xLF(Reed) 1 Imp/m3 and 1xHF option
Comms: RS 485 or M-Bus interface, 4-20mA(Ext pwr required)
