Fixed Ultrasonic Heat Meters ~ 25-6000mm

Fixed clamp-on Ultrasonic heat meters available to suit a choice of pipe sizes and materials.
25mm to 6000mm pipe sizes, various materials including lined pipes.


Supplied with:

♦  3 Metre matched Pt 500 Temp Probes & pockets  (longer lengths on request)
    Optionally, clamp on Temp probes
♦  3 Metre Flow Transducers sensors and appropriate sized band clamps
♦  Standard Outputs : Pulse & 4-20ma
♦  Optional Outputs & Features: Modbus, BACnet,  Wireless Pulse, Data-logging and GSM/GPRS Telemetry

Installation example.


Simply clamp on to the outside of the pipe using banded or magnetic transducers without the need to "plumb in" a meter.
Temperature probes can be located in existing pockets, or stuck-on, clamped-on
Items: 15 of 5, per page
Drop items here to shop
Product has been added
SKU: TFXE

Dynasonics TXFE Ultra Heat Meter
Transit-time Ultrasonic Thermal Heat Flow Meter
15mm - 3800mm (DN1/2" - DN 150")
Supplied with RTD Temp Sensors
£1549.64
£1859.57 inc VAT
SKU: BFU-100-RF-S

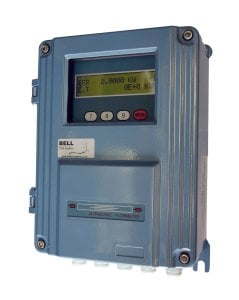

BFU-100-RF
Fixed Ultrasonic Heat Meter Assembly
25mm to 100mm I.D Pipe Sizes
Wall Mount Display: Kwh, BTU's, m3, Gj
90-260V AC or 24V DC / Outputs to BMS
£874.50
£1049.40 inc VAT
SKU: BFU-100-RF-M

BFU-100-RF
Fixed Ultrasonic Heat Meter Assembly
50mm to 700mm I.D Pipe Sizes
Wall Mount Display: Kwh, BTU's, m3, Gj
90-260V AC or 24V DC / Outputs to BMS
£907.50
£1089.00 inc VAT
SKU: BFU-100-M-S

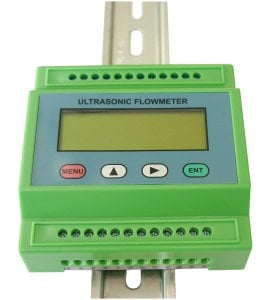

BFU-100-M Fixed Ultrasonic Heat Flow Meter Assembly
Clamp-on Sensors 25mm - 100mm
DIN Rail Mount, 24V DC Supply
Back Lit LCD Display: Kwh, BTU's, m3, Gj
c/w 3 Metre Pt 100 Temp Probes, See options
£544.50
£653.40 inc VAT
SKU: BFU-100-M-M

BFU-100-M Fixed Ultrasonic Heat Flow Meter Assembly
Clamp-on Sensors 50mm - 700mm
DIN Rail Mount, 24V DC Supply
Back Lit LCD Display: Kwh, BTU's, m3, Gj
c/w 3 Metre Pt 100 Temp Probes, See options
£594.00
£712.80 inc VAT
