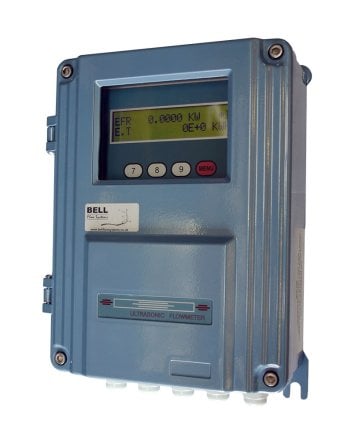

BFU-100-RF Fixed Ultrasonic Heat Meter Assembly :: Clamp-on Sensors 40mm - 100mm

BFU-100-RF Fixed Ultrasonic Heat Meter Assembly :: Clamp-on Sensors 40mm - 100mm

SKU: BFU-100-RF-S
BFU-100-RF
Fixed Ultrasonic Heat Meter Assembly
40mm to 100mm I.D Pipe Sizes
Wall Mount Display: Kwh, BTU's, m3, Gj
90-260V AC or 24V DC
Pulse, 4-20mA, Alarms, Modbus Outputs to BMS
Includes Supply & Return PT100 temperature Sensors
  • Temp Probes
  • £874.50
  • £1049.40 inc VAT


Description


BFU-100-RF
Fixed Ultrasonic Heat Flow Meter Assembly :: Wall Mount Display
40mm to 100mm I.D Pipe Sizes
with Data Logging Feature and Various Output options
4-20mA, Pulse, Alarms, Modbus
Includes Supply & Return PT100 temperature Sensors

A fixed ultrasonic heat meter and volume flow display which facilitates quick and simple installation without the need to cut into existing pipe-work. Suitable for stationary applications. Follow our quick-set-up guide and apply the
flow sensors to the pipe using the band-clamps provided, then fit the temperature sensors depending on the type supplied.




Specification


    BFU-100-RF Fixed Ultrasonic Heat Meter Assembly

    Power:- 85-260VAC, 50/60Hz or 24V DC
    Supplied c/w 3 Metre Pt 100 Temp Probes (See options)
    Clamp-on Ultrasonic Transducers 40mm - 100mm

    •Horizontal or vertical Installation
    • Transducer Max Temp: -20C to +160C
    • Accuracy: +/-1% of reading above 0.6ft/sec / 0.2 m/sec
    • Outputs available: 1x 4-20mA , 1x Pulse Output , 1x Alarm Output (All configurable)
    • ModBus output
    • Ingress Protection: Display= IP65, Transducers= IP65 (IP68 on request)

    These ultrasonic flow meters can be used on virtually any pipe size or material, are non-invasive and are
    therefore not prone to the levels of deterioration that are seen by traditional intrusive flow meters.
    Mbus converter, Radio Pulse transmission and GSM/GPRS Telemetry / logging options on request

    Applications

    • Water / Wastewater / Effluent
    • Hot Water / Chilled Water / Mixture of Water and Glycol
    • Petroleum Products
    • Oil / Crude Oil / Fuel Oil / Diesel/ BioDiesel / Lubricant
    • Oil /Hydraulic Oil (non aerated)
    • Chemical and Solvents
    • Water management in buildings, Civil structures
      District Heating / wastewater treatment plants, irrigation systems, and more
    • Flow monitoring and flow control in Desalination plants, steel making plants, power plants, machining plants
    • Liquid process control in chemical plants and industrial automation application
    • Retrofit capability, to upgrade or augment existing systems using this non intrusive technolgy
    • Automated batching
    • Efficiency monitoring and improvement of heating / cooling systems, including solar / geothermal systems
    • Hygienic Beverage, food and pharmaceutical processing application
    • Telemetry of Remote flow monitoring network and leakage detection (Aqualink products required)
