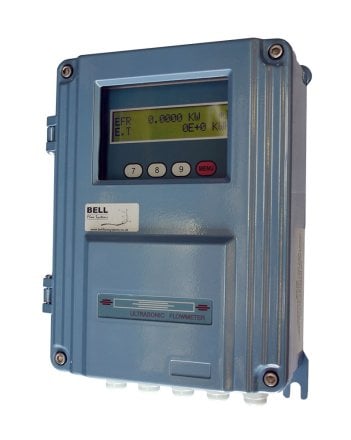

BFU-100-RF Fixed Ultrasonic Heat Meter Assembly :: Clamp-on Sensors 50mm - 700mm

BFU-100-RF Fixed Ultrasonic Heat Meter Assembly :: Clamp-on Sensors 50mm - 700mm

SKU: BFU-100-RF-M
BFU-100-RF
Fixed Ultrasonic Heat Meter Assembly
50mm to 700mm I.D Pipe Sizes
Wall Mount Display: Kwh, BTU's, m3, Gj
90-260V AC or 24V DC / Outputs to BMS
Includes Supply & Return PT100 temperature Sensors
  • Temp Probes
  • £907.50
  • £1089.00 inc VAT


Description


BFU-100-RF
Fixed Ultrasonic Heat Meter Assembly
50mm to 700mm I.D Pipe Sizes
Wall Mount Display: Kwh, BTU's, m3, Gj
90-260V AC or 24V DC / Outputs to BMS
Includes Supply & Return PT100 temperature Sensors

A non-intrusive heat meter and volume flow display which facilitates quick and simple installation without the need to cut into existing pipe-work. Follow our quick-set-up guide and apply the
flow sensors to the pipe using the band-clamps provided, then fit the temperature sensors depending on the type supplied.


Specification


    BFU-100-RF Fixed Ultrasonic Heat Meter Assembly

    Power:- 85-260VAC, 50/60Hz or 24V DC
    Supplied c/w 3 Metre Pt 100 Temp Probes (See options)
    Clamp-on Ultrasonic Transducers 50mm - 700mm

    •Horizontal or vertical Installation
    • Transducer Max Temp: -20C to +160C
    • Accuracy: +/-1% of reading above 0.6ft/sec / 0.2 m/sec
    • Outputs: 1x 4-20mA , 1x Pulse Output , 1x Alarm Output (All configurable)
    • ModBus outut
    • Ingress Protection: Display= IP65, Transducers= IP65 (IP68 on request)

    These flow meters can be used on virtually any pipe size or material, are non-invasive and are
    therefore not prone to the levels of deterioration that are seen by traditional intrusive flow meters.
    Mbus converter, Radio Pulse transmission and GSM/GPRS Telemetry / logging options on request
