Clamp-on Ultrasonic Heat Flow Meter, DN15 ID (18-22.3mm OD)

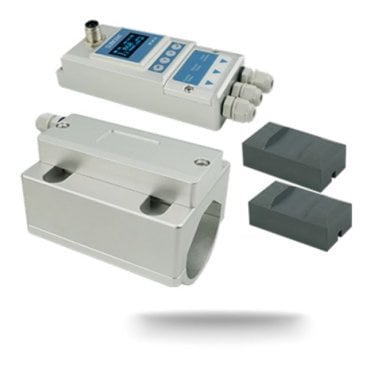

BEX3 Clamp-on Ultrasonic Heat Flow Meter
Chilled or Hot Water (Flow Module Sited on Return Line)
DN15 ID (18-22.3mm OD)
1.8 Metre Cable for power & Signals/Data
IP54 Rated
Rugged Aluminium Construction
Clam-shell design for ease of fixing
Pre-positioned ultrasonic resin strips (Spares included)

Velocity 0.1 - 5 m/s
Accuracy +/- 2% F.S
Pipes: Copper, Plastic, Steel, Iron, Stainless Steel
OLED Display with 6 Figure Total and Flow Rate shown
Data Storage (Daily, Monthly, Annual Energy Totals)
Metric & Imperial Units
24V DC Supply
Ambient Temperature: 0℃ - 50℃
2x PT1000 Clamp-on Sensors 2℃ - 105℃
Pipework Max Temp for flow sensor 80℃
4-20mA Analogue Output (Pulse /Alarm Output Optional on request)
Modbus Output
Pre-configured or In-field adjustment possible

Clamp On Type Heat Flow Meter — Series BEX3 Features

• No need to cut into the pipe
• System Pressure is not an issue
• No professional product knowledge required, installation and measurement is quick and easy.
• No moving parts or pressure loss changes involved

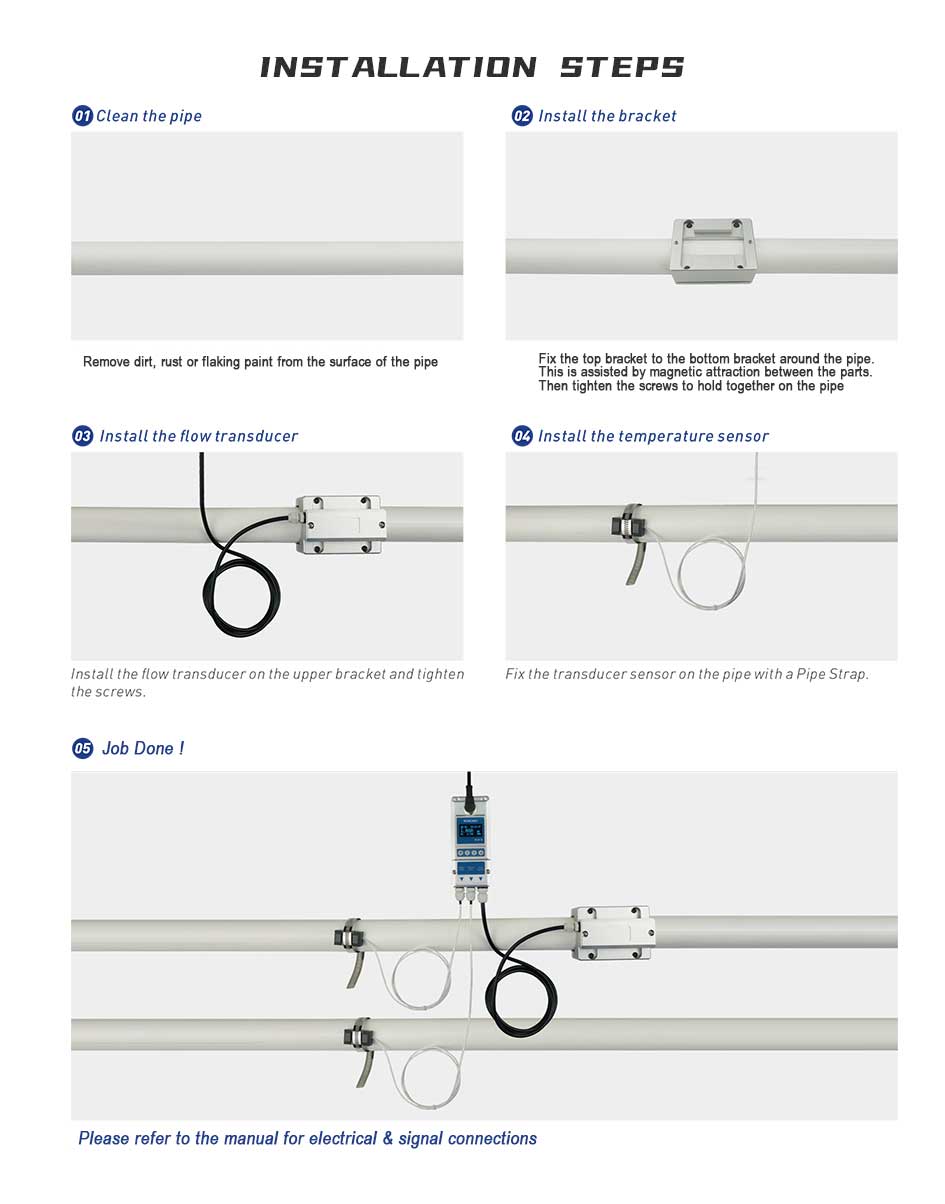

• Installation can be done without systems shut-down or flow interruption
• Mostly Clean and non-aerated water
