CF ECHO II Ultrasonic Heat Meter Assembly DN15 :: Qp 1.5 (1/2" Reducing connections included)

MID Class 2 Approved DN15, QN 1.5 m3/hr
12yr Battery Powered Integrator, IP67

Optional 230 VAC power supply

Pulse and M-Bus output

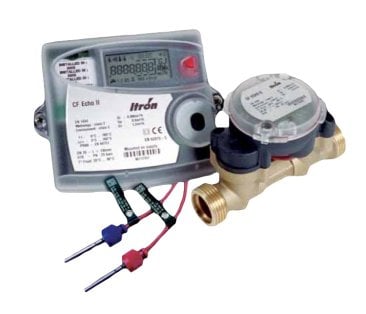

The Itron CF Echo II is an ultrasonic combination compact heat meter with on-board electronic signal processing to provide high levels of precision. The Meter is MID approved to class 2 standards so can be used for both domestic and non domestic heat energy measurement applications.



As standard the meter is offered with an on-board lithium battery which can offer up to 12 years battery life. Options are also available for a mains power supply.



In standard form the CF ECHO II is offered with a pulse and M-BUS output. Pulse input, RF and GPRS facilities can also be configured as an option.
