Hygienic Mag Flow Meters

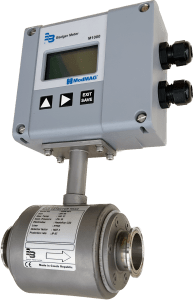

MIDF Series Hygienic Electromagnetic Flow meters

The MIDF series is designed for use in food and hygienic applications across many industries. Constructed in 306 stainless steel with PTFE liner and Hastelloy C measuring & empty pipe electrodes as standard plus a choice of wafer, Tri-Clamp, DIN 11851 or ISO 2852 connections and LCD amplifier, output and communication options these meters perform under the most demanding conditions. Other connections including to customer specifications also available, call for quotation.
:
from
to
Clear all
Products: 1–10 of 10
Show:20
Sort by:Recommended
Sort by:Recommended
  • MIDF Magflow Hygienic :: Sanitary Electromagnetic Flow Meter :: DN10
    MIDF Magflow Hygienic :: Sanitary Electromagnetic Flow Meter :: DN10
    SKU: 1M-A-004TAES7AAXO-SAAACXWWDBARXX
    MIDF Sanitary Electromagnetic Flow Meter:: DN10
    Flow: 0.14 - 57 l/min
    High accuracy and minimal pressure loss
    Tri-Clamp ISO2852 (Other options)
    316 Stainless Steel Body, PFA Liner
    Hastelloy C Measuring & Empty Pipe Electrodes
    M1000 Local Display (Remote options)
    Choice of output options
    115/230V AC Powered (9-36V DC Option)
    IP67 protection or optional IP68
    £2169.65
    £2603.58 inc VAT
  • MIDF Magflow Hygienic :: Sanitary Electromagnetic Flow Meter :: DN15
    MIDF Magflow Hygienic :: Sanitary Electromagnetic Flow Meter :: DN15
    SKU: 1M-A-005TAES7PAXO-SAAACXWWDBARXX
    MIDF Sanitary Electromagnetic Flow Meter:: DN15
    Flow: 0.32 - 127 l/min
    High accuracy and minimal pressure loss
    Tri-Clamp ISO2852 (Other Options)
    316 Stainless Steel Body, PTFE Liner
    Hastelloy C Measuring & Empty Pipe Electrodes
    M1000 Local Display (Remote options)
    Choice of output options
    115/230V AC Powered (9-36V DC Option)
    IP67 protection or optional IP68
    £2179.65
    £2615.58 inc VAT
  • MIDF Magflow Hygienic :: Sanitary Electromagnetic Flow Meter :: DN20
    MIDF Magflow Hygienic :: Sanitary Electromagnetic Flow Meter :: DN20
    SKU: 1M-A-007TABS7PAXO-SAAACXWWDBARXX
    MIDF Sanitary Electromagnetic Flow Meter:: DN20
    Flow: 0.57 - 226 l/min
    High accuracy and minimal pressure loss
    Tri-Clamp BS4825 (Other Options)
    316 Stainless Steel Body, PTFE Liner
    Hastelloy C Measuring & Empty Pipe Electrodes
    M1000 Local Display (Remote options)
    Choice of output options
    115/230V AC Powered (9-36V DC Option)
    IP67 protection or optional IP68
    £2199.66
    £2639.59 inc VAT
  • MIDF Magflow Hygienic :: Sanitary Electromagnetic Flow Meter :: DN25
    MIDF Magflow Hygienic :: Sanitary Electromagnetic Flow Meter :: DN25
    SKU: 1M-A-010TABS7PAXO-SAAACXWWDBARXX
    MIDF Sanitary Electromagnetic Flow Meter:: DN25
    Flow: 0.88 - 353 l/min
    High accuracy and minimal pressure loss
    Tri-Clamp BS4825 (Other Options)
    316 Stainless Steel Body, PTFE Liner
    Hastelloy C Measuring & Empty Pipe Electrodes
    M1000 Local Display (Remote options)
    Choice of output options
    115/230V AC Powered (9-36V DC Option)
    IP67 protection or optional IP68
    £2280.80
    £2736.96 inc VAT
  • MIDF Magflow Hygienic :: Sanitary Electromagnetic Flow Meter :: DN32
    MIDF Magflow Hygienic :: Sanitary Electromagnetic Flow Meter :: DN32
    SKU: 1M-A-012TAES7PAX0-SAAACXWWDBARXX
    MIDF Sanitary Electromagnetic Flow Meter:: DN32
    Flow: 1.45 - 579 l/min
    High accuracy and minimal pressure loss
    Tri-Clamp ISO20456 (Other Options)
    316 Stainless Steel Body, PTFE Liner
    Hastelloy C Measuring & Empty Pipe Electrodes
    M1000 Local Display (Remote options)
    Choice of output options
    115/230V AC Powered (9-36V DC Option)
    IP67 protection or optional IP68
    £2323.04
    £2787.65 inc VAT
  • MIDF Magflow Hygienic :: Sanitary Electromagnetic Flow Meter :: DN40
    MIDF Magflow Hygienic :: Sanitary Electromagnetic Flow Meter :: DN40
    SKU: 1M-A-015TAES7PAXO-SAAACXWWDBARXX
    MIDF Sanitary Electromagnetic Flow Meter:: DN40
    Flow: 2.3 - 905 l/min
    High accuracy and minimal pressure loss
    Tri-Clamp ISO20456(Other Options)
    316 Stainless Steel Body, PTFE Liner
    Hastelloy C Measuring & Empty Pipe Electrodes
    M1000 Local Display (Remote options)
    Choice of output options
    115/230V AC Powered (9-36V DC Option)
    IP67 protection or optional IP68
    £2431.96
    £2918.35 inc VAT
  • MIDF Magflow Hygienic :: Sanitary Electromagnetic Flow Meter :: DN50
    MIDF Magflow Hygienic :: Sanitary Electromagnetic Flow Meter :: DN50
    SKU: 1M-A-020TAES7PAXO-SAAACXWWDBARXX
    MIDF Sanitary Electromagnetic Flow Meter:: DN50
    Flow: 3.5 - 1414 l/min
    High accuracy and minimal pressure loss
    Tri-Clamp ISO20456(Other Options)
    316 Stainless Steel Body, PTFE Liner
    Hastelloy C Measuring & Empty Pipe Electrodes
    M1000 Local Display (Remote options)
    Choice of output options
    115/230V AC Powered (9-36V DC Option)
    IP67 protection or optional IP68
    £2520.88
    £3025.06 inc VAT
  • MIDF Magflow Hygienic :: Sanitary Electromagnetic Flow Meter :: DN65
    MIDF Magflow Hygienic :: Sanitary Electromagnetic Flow Meter :: DN65
    SKU: 1M-A-025TAES7PAXO-SAAACXWWDBARXX
    MIDF Sanitary Electromagnetic Flow Meter:: DN65
    Flow: 6.0 - 2389 l/min
    High accuracy and minimal pressure loss
    Tri-Clamp ISO20456 (Other Options)
    316 Stainless Steel Body, PTFE Liner
    Hastelloy C Measuring & Empty Pipe Electrodes
    M1000 Local Display (Remote options)
    Choice of output options
    115/230V AC Powered (9-36V DC Option)
    IP67 protection or optional IP68
    £2675.38
    £3210.46 inc VAT
  • MIDF Magflow Hygienic :: Sanitary Electromagnetic Flow Meter :: DN80
    MIDF Magflow Hygienic :: Sanitary Electromagnetic Flow Meter :: DN80
    SKU: 1M-A-030TAES7PAXO-SAAACXWWDBARXX
    MIDF Sanitary Electromagnetic Flow Meter:: DN80
    Flow: 9.0 - 3619 l/min
    High accuracy and minimal pressure loss
    Tri-Clamp ISO20456 (Other Options)
    316 Stainless Steel Body, PTFE Liner
    Hastelloy C Measuring & Empty Pipe Electrodes
    M1000 Local Display (Remote options)
    Choice of output options
    115/230V AC Powered (9-36V DC Option)
    IP67 protection or optional IP68
    £2949.92
    £3539.90 inc VAT
  • MIDF Magflow Hygienic :: Sanitary Electromagnetic Flow Meter :: DN100
    MIDF Magflow Hygienic :: Sanitary Electromagnetic Flow Meter :: DN100
    SKU: 1M-A-040TAES7PAXO-SAAACXWWDBARXX
    MIDF Sanitary Electromagnetic Flow Meter:: DN100
    Flow: 14 - 5655 l/min
    High accuracy and minimal pressure loss
    Tri-Clamp ISO20456 (Other Options)
    316 Stainless Steel Body, PTFE Liner
    Hastelloy C Measuring & Empty Pipe Electrodes
    M1000 Local Display (Remote options)
    Choice of output options
    115/230V AC Powered (9-36V DC Option)
    IP67 protection or optional IP68
    £3291.15
    £3949.38 inc VAT
