Vision Turbine Meters

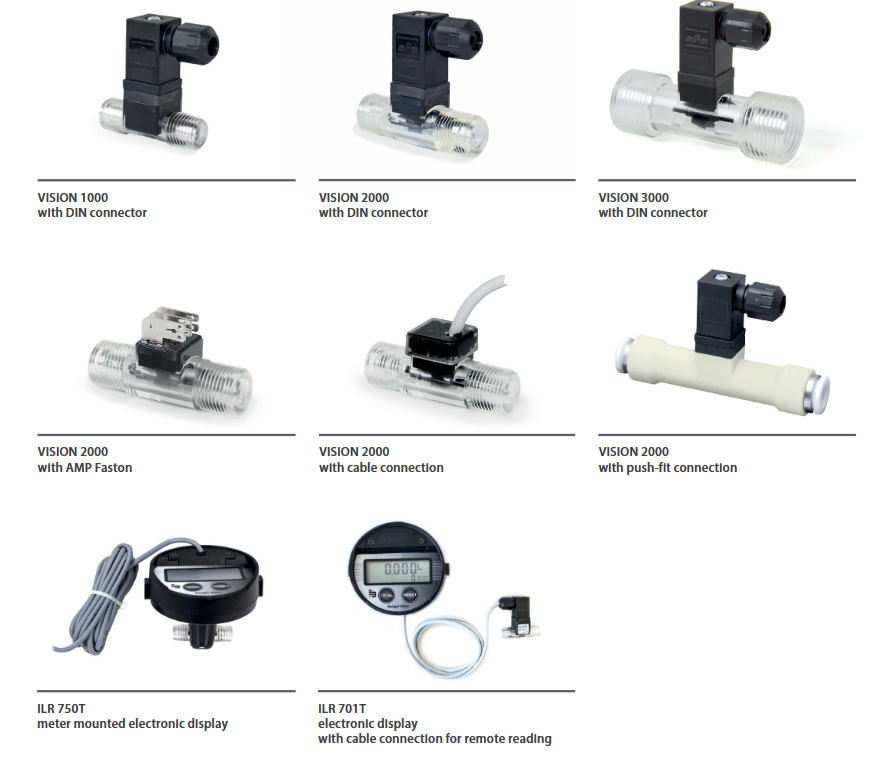

All VISION turbine flow meters are ideally suited for the accurate measurement of small flow rates and can be mounted in any position. The small turbine meters measure the instantaneous flow rate and meter the flow quantity. The housing of all turbine meters is made of Trogamid, while the medium-sized turbine VISION 2000 is also available with brass housings. In addition to the standard DIN plug, the VISION turbines are also available with AMP Faston, 3 flat plug or cable connection.

Measuring principle :

Turbine meters are volumetric meters. When the fluid passes, a rotor is activated and the movement is either electronically or mechanically transmitted outside. The rotor is turned by the fluid force, proportional to the flow rate. A Hall effect sensor detects the rotation of the rotor and supplies pulses, which can be utilized for digital or analogue signal processing. The generated pulses are specified as the K-factor.
