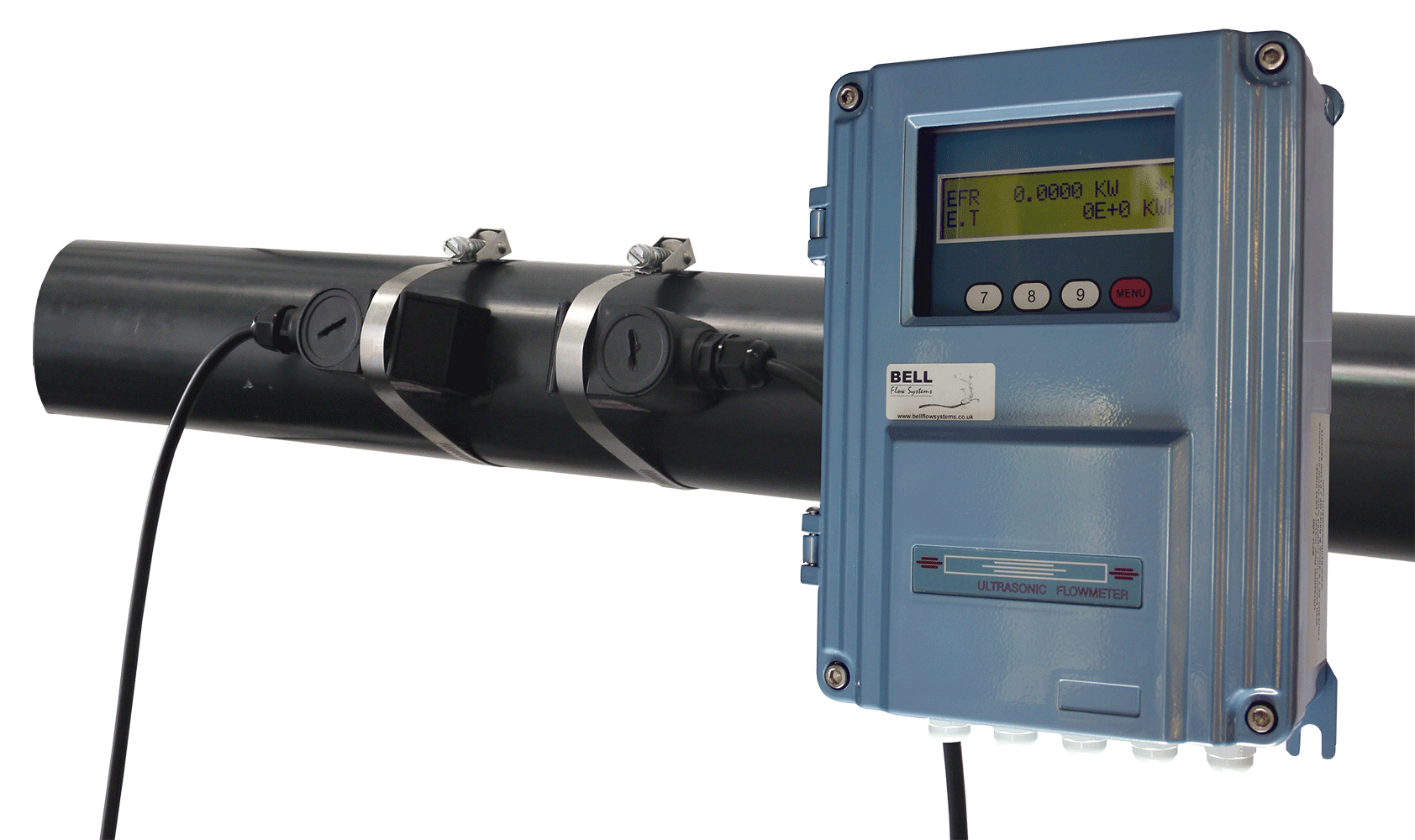

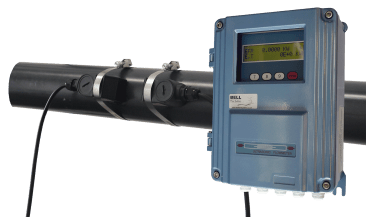

BFU-100-F Fixed Ultrasonic Flow Meter Assembly :: Clamp-on Sensors 300 - 6000

BFU-100-F Fixed Ultrasonic Flow Meter Assembly :: Clamp-on Sensors 300 - 6000

SKU: BFU-100-F-L

BFU-100-F Fixed Ultrasonic Flow Meter Assembly
Clamp-on Sensors 300mm - 6000mm
Wall Mount Display: m3, Litres, Gallons etc
90-260V AC or 24V DC
Pulse, Alarm, 4-20mA, Modbus Output

  • £945.00
  • £1134.00 inc VAT


Description

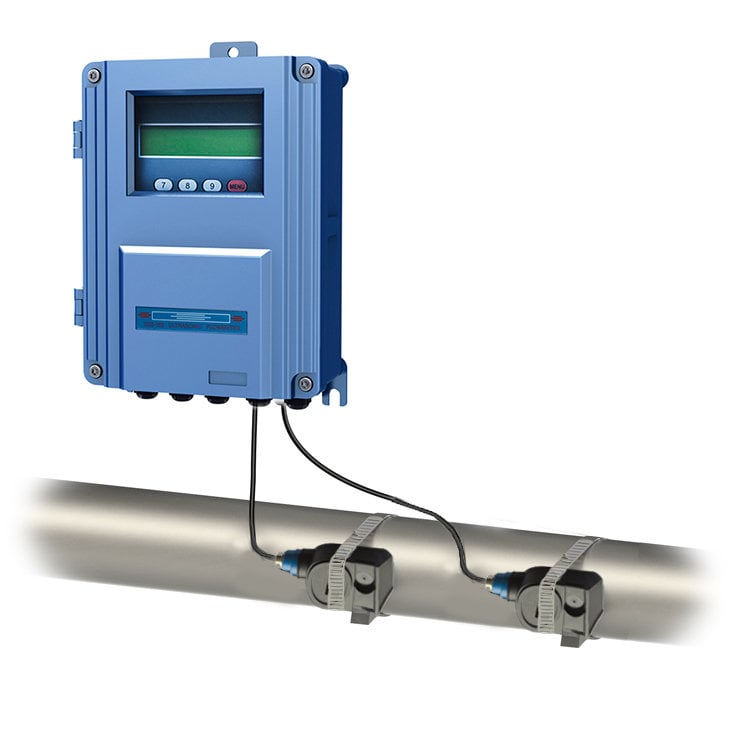

BFU-100-F Fixed Non-invasive Flow Meter Assembly
Clamp-on Sensors 300mm - 6000mm
Wall Mount Display: m3, Litres, Gallons etc
90-260V AC or 24V DC
Pulse, Alarm, 4-20mA Output, Modbus comms

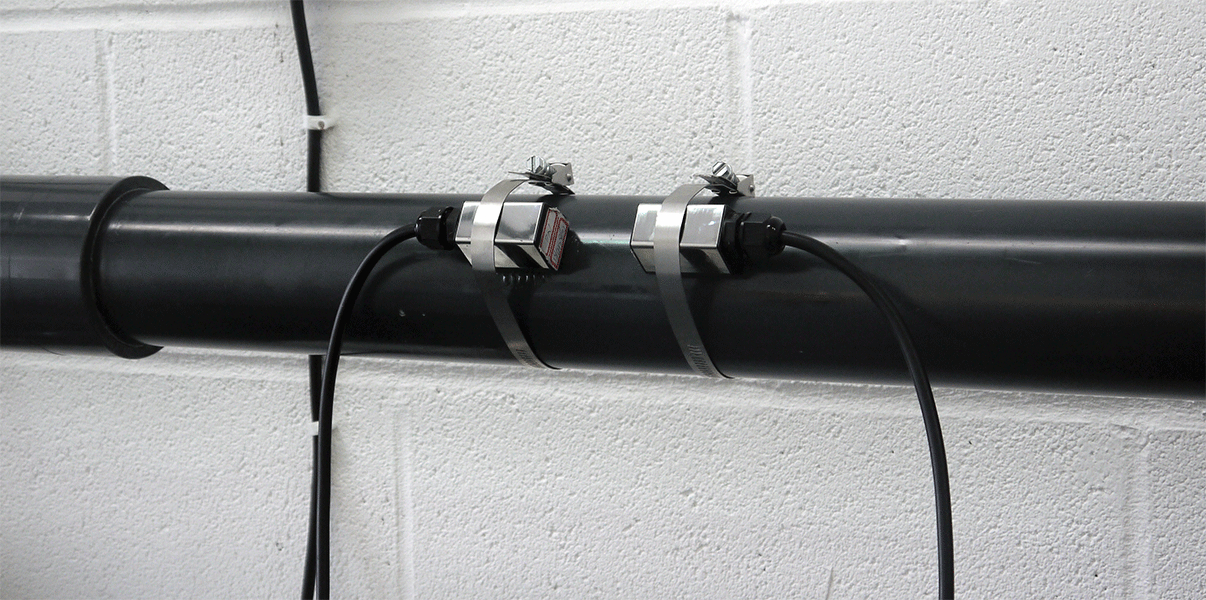

A non-intrusive Flow meter and volume flow display which enables quick
and easy installation of clamp-on flow sensors, without the need to make contact water and cut into existing pipe-work.

Specifications:

♦ Horizontal or vertical Installation
♦ Transducer Max Temp: -20C to +70C (160C option)
♦ Accuracy: <1% of reading above 0.6ft/sec / 0.2 m/sec
♦ Outputs: 1x 4-20mA , 1x Pulse Output , 1x Alarm Output, Modbus (All configurable
♦ Ingress Protection: Display= IP65, Transducers= IP65 (IP68 on request)

These flow meters can be used on any pipe size 50mm or above and on most pipe materials including lined pipe. They are non-invasive and are therefore not prone to the levels of deterioration that are seen by traditional intrusive flow meters, requiring little or no servicing

Mbus converter, Radio Pulse transmission and GSM/GPRS Telemetry / logging options on request


Specification

    BFU-100-F Fixed Ultrasonic Flow Meter Assembly
    Clamp-on Sensors 50mm - 700mm
    Non-Intrusive design requires no servicing with zero wearable parts
    Accurate Bi-directional flow measurement and logging.


    Specifications:

    ♦ Horizontal or vertical Installation
    ♦ Transducer Max Temp: -20C to +70C (160C option)
    ♦ Accuracy: <1% of reading above 0.6ft/sec / 0.2 m/sec
    ♦ Outputs: 1x 4-20mA , 1x Pulse Output , 1x Alarm Output, Modbus (All configurable)
    ♦ Ingress Protection: Display= IP65, Transducers= IP65 (IP68 on request)
    ♦ Can be moved around site as locations specs are stored in memory


    Applications

    • Water / Wastewater / Effluent
    • Hot Water / Chilled Water / Mixture of Water and Glycol
    • Petroleum Products
    • Oil / Crude Oil / Fuel Oil / Diesel/ BioDiesel / Lubricant
    • Oil /Hydraulic Oil (non aerated)
    • Chemical and Solvents
    • Water management in buildings, Civil structures
      District Heating / wastewater treatment plants, irrigation systems, and more
    • Flow monitoring and flow control in Desalination plants, steel making plants, power plants, machining plants
    • Liquid process control in chemical plants and industrial automation application
    • Retrofit capability, to upgrade or augment existing systems using this non intrusive technolgy
    • Automated batching
    • Efficiency monitoring and improvement of heating / cooling systems, including solar / geothermal systems
    • Hygienic Beverage, food and pharmaceutical processing application
    • Telemetry of Remote flow monitoring network and leakage detection (Aqualink products required)
