MX25P-Ex Industrial Flow Meter :: 1" Ports, 6 - 120 L/Min, 138bar (2000psi)
SKU: MX25P-ExMX25P Industrial Flow Meter
ATEX (Ex ia) Zone 1 & Ex D flame proof options
St Steel Body, FEP Seal
1" Ports
6 - 120 L/min, 138 bar (2000psi)
Rugged Design suitable for a variety of liquid measurement tasks
ATEX (Ex ia) Zone 1 & Ex D flame proof optionsSt Steel Body, FEP Seal
1" Ports
6 - 120 L/min, 138 bar (2000psi)
Rugged Design suitable for a variety of liquid measurement tasks
Description

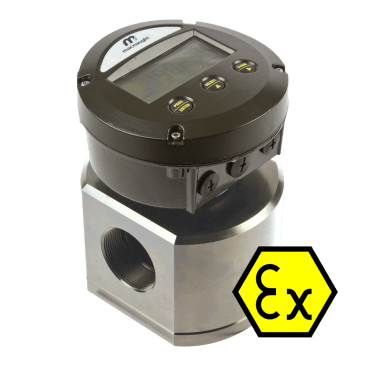

MX25P Industrial Flow Meter
ATEX (Ex ia) Zone 1 & Ex D flame proof options
St Steel Body, FEP Seal
1" Ports
6 - 120 L/min, 138 bar (2000psi)
Rugged Design suitable for a variety of liquid measurement tasks
ATEX (Ex ia) Zone 1 & Ex D flame proof optionsSt Steel Body, FEP Seal
1" Ports
6 - 120 L/min, 138 bar (2000psi)
Rugged Design suitable for a variety of liquid measurement tasks
Oval gear flowmeters are ideally suited to applications requiring accurate dispense quantities. Measurement of very low flow rates, pulsating flow, small batch sizes, viscous products, and non-conductive liquids are all ideal uses for oval gear meters. Because these meters don't require flow conditioning, no straight piping runs are required, so they can be used in installations where space is limited without affecting performance.
Applications:
• Chemical batching
• Additive injection
• Hydraulic test stands
• High temperature chemical processes
• High pressure chemical processes
• Food and beverage batch processes
• Ethanol blending and production
• Pulp and paper
• Additive injection
• Hydraulic test stands
• High temperature chemical processes
• High pressure chemical processes
• Food and beverage batch processes
• Ethanol blending and production
• Pulp and paper

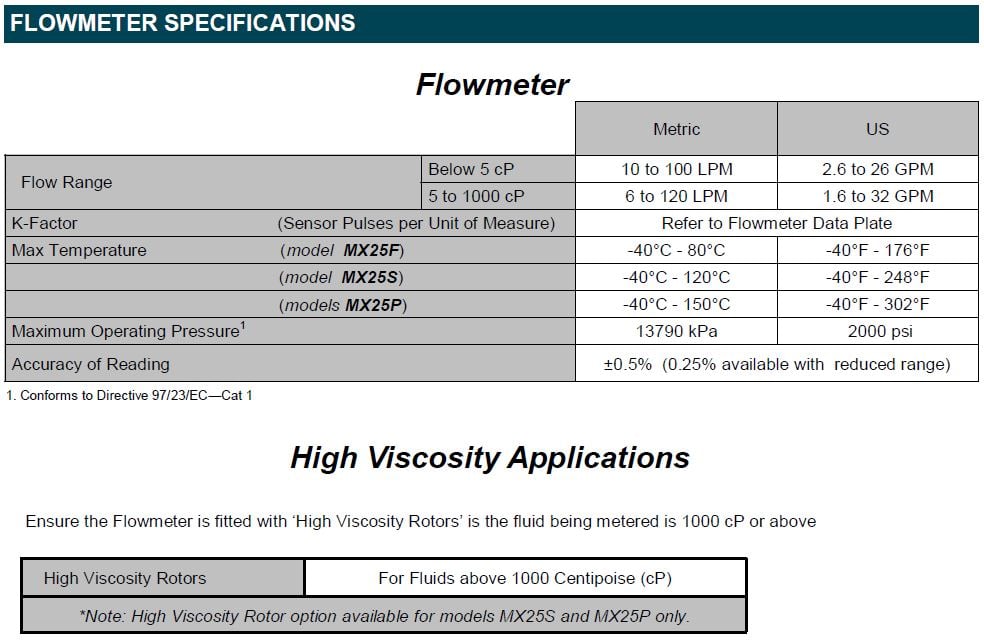

Specification
MX25P Industrial Flow Meter
ATEX (Ex ia) Zone 1 & Ex D flame proof options
St Steel Body, FEP Seal
1" Ports
6 - 120 L/min, 138 bar (2000psi)
Rugged Design suitable for a variety of liquid measurement tasks
ATEX (Ex ia) Zone 1 & Ex D flame proof optionsSt Steel Body, FEP Seal
1" Ports
6 - 120 L/min, 138 bar (2000psi)
Rugged Design suitable for a variety of liquid measurement tasks
Versatile 1" Oval gear flow meter designed for a broad range of Industrial Process applications.
The Oval gear measurement principle offers extremely high accuracyon both low and high viscosity
fluids. Macnaughts' Internationally accredited calibration laboratory guarantees traceable test results
for every meter manufactured.
The Oval gear measurement principle offers extremely high accuracyon both low and high viscosity
fluids. Macnaughts' Internationally accredited calibration laboratory guarantees traceable test results
for every meter manufactured.
Stainless Steel construction
Teflon (PTFE) encapsulated seals
Max flow rate 120 L/min / 32 GPM
Temperatures up to 150C
Accuracy +/- 0.5%
Repeatability +/- 0.03%
Available with BSP or NPT Process connections
Variety of output modules and local / remote flow displays available
Hazardous area version available
