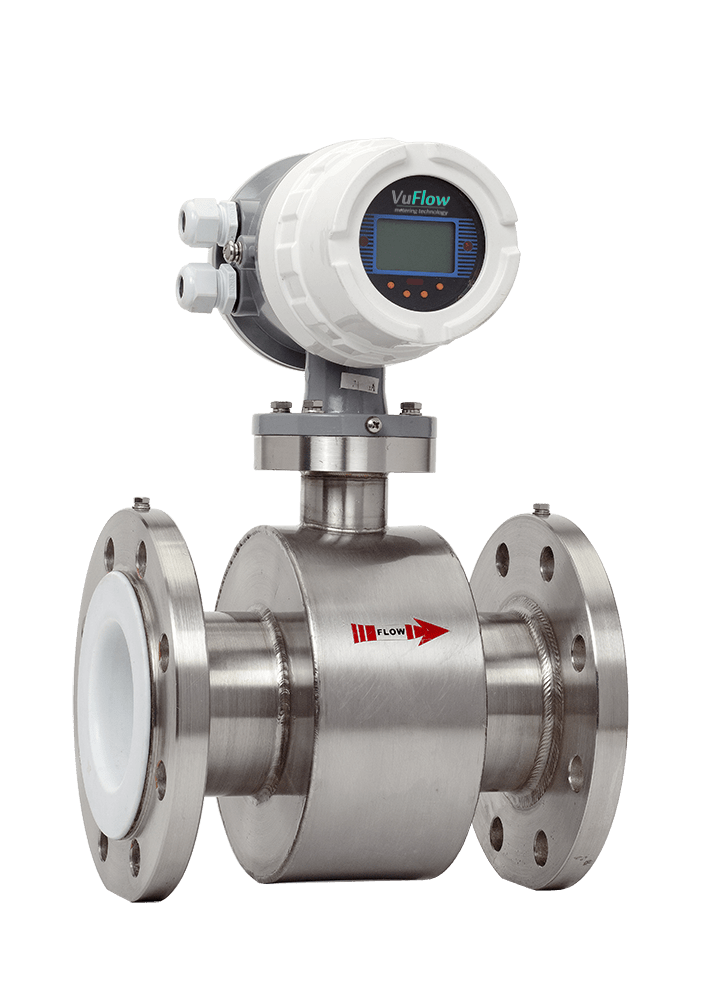

Electromagnetic Flow Meter:: DN500 Flange options, Rubber Liner (PTFE Option), AC / DC OPTIONS
  • Electromagnetic Flow Meter:: DN500 Flange options, Rubber Liner (PTFE Option), AC / DC OPTIONS
  • Electromagnetic Flow Meter:: DN500 Flange options, Rubber Liner (PTFE Option), AC / DC OPTIONS

Electromagnetic Flow Meter:: DN500 Flange options, Rubber Liner (PTFE Option), AC / DC OPTIONS

SKU: BMF-500

Electromagnetic Flow Meter:: DN500
Calibrated reliable performance
Power, Liner, Display, Electrode :: See options

  • Type
  • Mounting
  • Electrode Material
  • Signal Output
  • Liner Material
  • Power Supply
  • Communication
  • Grounding
  • Connections
  • Body Material
  • Cable
  • Accuracy
  • £4776.00
  • £5731.20 inc VAT


Description


Electromagnetic Flow Meter:: DN500
Calibrated reliable performance
Power, Liner, Display, Electrode options
 ATEX version Available

The BMF range of Electromagnetic flow meters represent excellent value, offering a wide range of standard features and a selection of extra options. Supplied with multi-point calibration certificate and 12 month warranty as standard, these meters have a large installed user base and are the ideal choice when quality, reliability and cost of ownership are the major considerations

Versions:

⊃  General Purpose, choice of Liner, Electrodes, Body materials etc
⊃  Battery powered (with or without external power option)
⊃  ATEX Hazardous Area approved EEx d (Explosion Proof)
⊃  Hygienic , Tri-clamp models with stainless steel construction
⊃  Slurry Model (Concentrations up to 85% solids)

⊃  Insertion Style (Hot Tap option)


Features:

⊃ Liner: Rubber Standard, See options
⊃ IP65 Display (IP68 Sensor, remote version)
⊃ Tube: Austenitic Stainless Steel
⊃ Body: Polyurethane Coated Steel
⊃ Flanges: Carbon Steel or Stainless on request
⊃ Electrodes: 316L (See options)
⊃ Grounding Electrode optional
⊃ Bi-Directional Flow Measurement
⊃ Empty Pipe Detection
⊃ Max Temperature: See options
⊃ Max Pressure: See Options


Specification


    GENERAL SPECIFICATIONS



    Power Supply:

    110-240v AC
    Optional: (20-36v DC)
    optional: (Battery Powered)



    Diameters:

    DN10 to DN2000



    Repeatability:

    ± 0.1%



    Power Consumption:

    <20W



    Accuracy:

    ± 0.5% accuracy of rate from 0.3-10 m/s

    Optionally..
    ± 0.2% accuracy of rate from 0.3-10 m/s



    Display Mounting:

    Compact mounted or

    Optional Remote Mounting from 10-100m



    Electrode Materials:

    316L Stainless Steel as standard.

    Optional Titanium, Tantalum, Hastelloy C,  Platinum-Iridium, Tungsten and Ceramic



    Liner Material:

    FEP/F46 only (DN10 to DN40)

    Hard Rubber or PTFE (DN50 to DN2000)

    Polyurethane (DN15 to DN500)

    Ceramic (DN10 to DN600)



    Minimum Fluid Conductivity:

    5.0 µS/cm



    Pressure Limits:

    1.0 Bar; Optional 16 Bar, 25 Bar and 40 Bar



    Flow Direction:

    Unidirectional or Bidirectional

    2 separate totalizers (programmable)



    Flanges:

    Carbon Steel (ISO7005-1) or Optional 316 Stainless steel

    DIN as standard, optional ANSI, JIS or Sanitary connections



    Grounding Options:

    316 Stainless Steel Grounding Rings

    Grounding Electrodes (same as measuring electrodes)



    		Fluid Temperature:

    FEP/F46 or Hard Rubber: -20˚C to 60˚C

    PTFE: -20˚C to 120˚C (Optional Max 160˚C available)



    Noise Damping:

    Programmable



    Ambient Temperature:

    -4˚F to 140˚F (-20˚C to 60˚C)



    Analog Outputs:

    Optional 4-20mA, 500ohms Max Load



    		Coil Power:

    Pulsed DC



    Communications:

    Optional MODBUS RS485, HART, BACnet/IP, Profibus, Telemetry



    Pipe Spool Material:

    316 Stainless Steel



    Output Frequency:

    Scaled Pulse Output,

    (open collector) Max 5Khz



    		Meter Housing Material:

    Polyurethane coated Carbon Steel

    Optional 304 or 316 Stainless Steel



    Pulse Width:

    Programmable up to 500ms



    Zero-point Stability:

    Automatic correction
