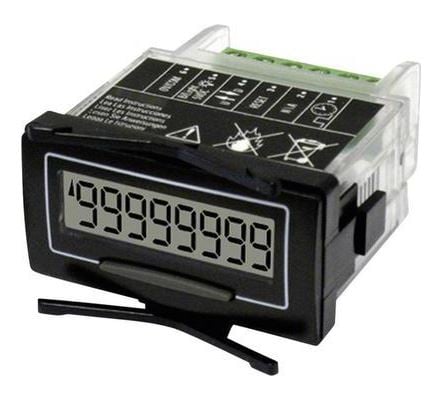

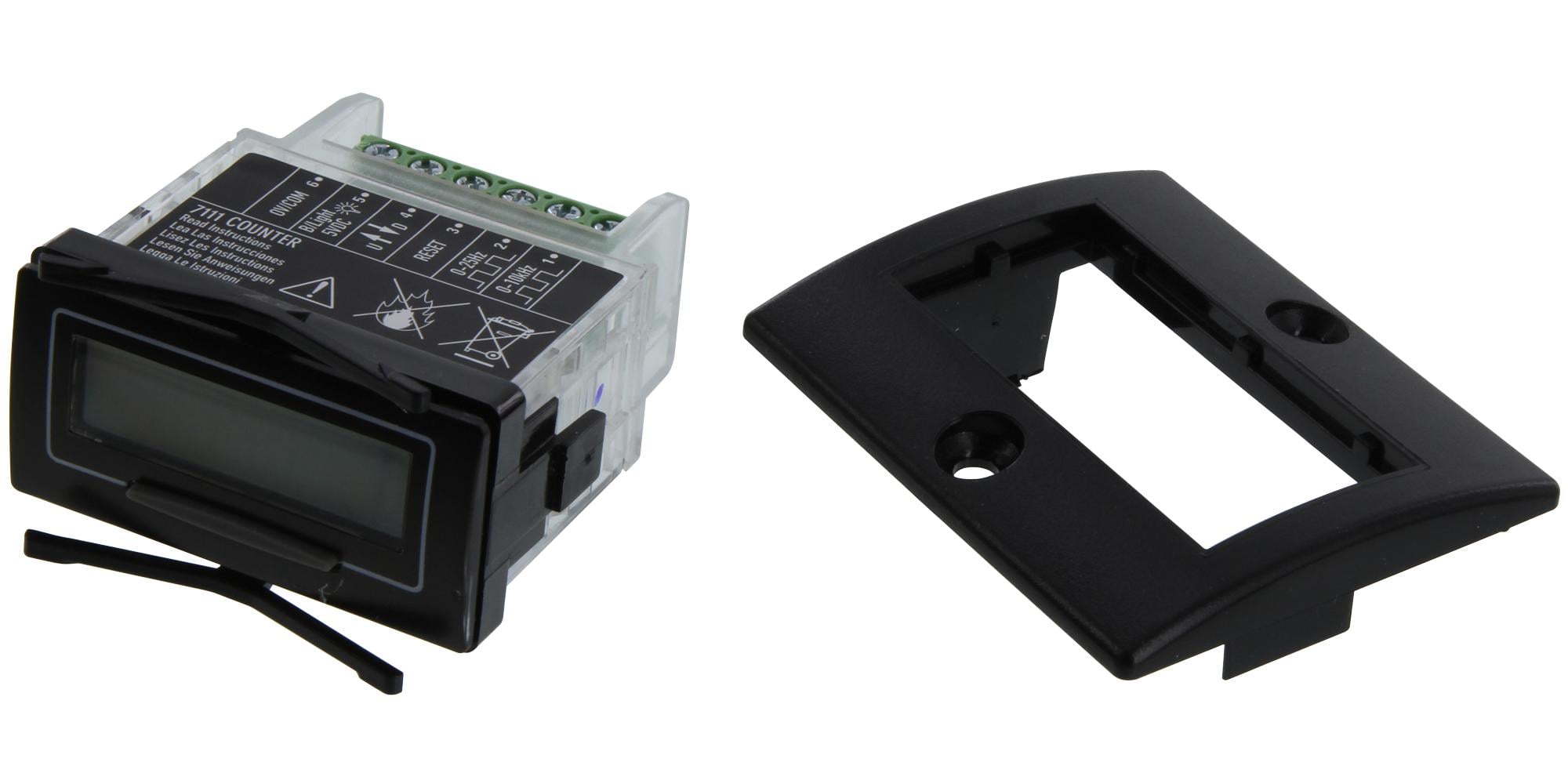

10 yr Battery Powered Scaleable Remote LCD Counter - Panel Mount
SKU: KAL-D06Description
KAL-D06 counters are small, lithium battery powered, totalizing counters that are panel mounted. The counters are designed as replacements for standard electro-mechanical counters. Ideal for totalising Water Meter Pulse outputs.
FEATURES
• 8 Digits Standard
• Meets NEMA 4X and IP65 Ratings
• Long Life (10 Year) Lithium Battery
• 10 kHz Count Speed • Backlighting using external power
• 6-Screw Wiring Terminal Block
• Slow Speed Input for Contact Closures
• High Speed Input for Sinking Inputs from a Max. of 18VDC Without Module
• UL Listed
They use the latest custom CMOS technology and incorporate an 8 digit, 0.354” (9mm) high, LCD display. They operate from a long life lithium battery (10 years) and can be operated from contact closure or high speed electronic devices. No separate alkaline batteries are required.
Specification
- Battery: Non-replaceable Lithium battery, expected life of 10 years at 20°C
- Display: 8 digit black LCD, Digit size 0.354” (9mm) high, leading zero blanking,
- Backlight: backlight requires external 5V supply (±0.5V @ 20mA).
- Reset: Panel or remote (can be disabled if desired)
- Count Range: 0-99999999, rollover to 0
- Temperature Range:
Operating: 14 to 1400F (-10 to 60°C)
Storage: -4 to 1400F (-20 to 60°C) - Battery Life: 10 years at 20°C (calculated)
- Relative Humidity: 80% max. up to 31°C, decreasing to 50% max. at 40°C
- Connection: Finger-proof screw terminal for wires up to 0.06”2 (1.5mm2 )
- Sealing: NEMA 4X/IP65; Remove film from self adhesive gasket before use! Overvoltage Category II, Pollution Fegree 2 (IEC 64)
- Certifications: UL Recognized Component
