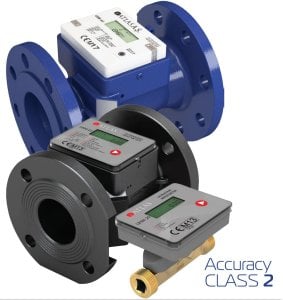

Atlas USM,UST Water Meters

ATLAS USM ultrasonic flow meters are designed for measurement of cold and hot water consumption in domestic and industrial applications.

Using the ultrasonic technology, the Qalcosonic meters are highly accurate and react to the smallest of changes in the system. These models can be installed in every position (vertical, horizontal, rising pipe, down pipe) and the IP68 models can be mounted safely, quickly and even under the water.

Key features of the USM range Include -

 Installation in any position
 No air measuring
 Indifferent to sand and particles in the flow
 Bi-Directional flow measurement
 10 year battery life
 R400 (Standard R160 with other options)
⊃ Options: Pulse, M-Bus, wM-Bus, LoraWAN
 Onboard storage of consumption history (Past 12 Months)
 Easy to Navigate LCD Menu
  • ATLAS USM Ultrasonic  Water Meter :: DN15
    ATLAS USM Ultrasonic Water Meter :: DN15
    SKU: USM-15
    DN15 Ultrasonic Water Meter (Cold)
    1/2" BSP Fittings included
    Brass Body
    IP65 LCD Display (Detachable with short cable)
    Q3 2.5 m3/hour
    10 Yr Battery
    MID Approved Class 2 : R160 / R250, R400 Option

    £132.83
    £159.40 inc VAT
  • ATLAS USM Ultrasonic  Water Meter :: DN20
    ATLAS USM Ultrasonic Water Meter :: DN20
    SKU: USM-20
    DN20 Ultrasonic Water Meter (Cold)
    3/4" BSP Fittings included
    Brass Body
    IP65 LCD Display (Detachable with short cable)
    Q3 4 m3/hour (2.5 m3/Hour optional)
    10 Yr Battery
    MID Approved Class 2 : R160 / R250, R400 Options

    £142.28
    £170.74 inc VAT
  • ATLAS USM Ultrasonic  Water Meter :: DN25
    ATLAS USM Ultrasonic Water Meter :: DN25
    SKU: USM-25
    DN25 Ultrasonic Water Meter (Cold)
    1" BSP Fittings included
    Brass Body
    IP65 LCD Display (Detachable with short cable)
    Q3 6.3 m3/hour
    10 Yr Battery
    MID Approved Class 2 : R160 / R250, R400 Options

    £164.33
    £197.20 inc VAT
  • ATLAS USM Ultrasonic  Water Meter :: DN32
    ATLAS USM Ultrasonic Water Meter :: DN32
    SKU: USM-32
    DN32 Ultrasonic Water Meter (Cold)
    1¼" BSP Fittings included
    Brass Body
    IP65 LCD Display (Detachable with short cable)
    Q3 10 m3/hour
    10 Yr Battery
    MID Approved Class 2 : R160 / R250, R400 Options

    £246.22
    £295.46 inc VAT
  • ATLAS USM Ultrasonic  Water Meter :: DN40
    ATLAS USM Ultrasonic Water Meter :: DN40
    SKU: USM-40
    DN40 Ultrasonic Water Meter (Cold)
    1 1/2" BSP Fittings included
    Brass Body
    IP65 LCD Display (Detachable with short cable)
    Q3 16 m3/hour
    10 Yr Battery
    MID Approved Class 2 : R160 / R250, R400 Options

    £265.91
    £319.09 inc VAT
  • ATLAS USM Ultrasonic  Water Meter :: DN50
    ATLAS USM Ultrasonic Water Meter :: DN50
    SKU: USM-50
    DN50 Ultrasonic Water Meter (Cold)
    2" Flanged PN16
    CS Body
    IP65 LCD Display (Detachable with short cable)
    Q3 25 m3/hour
    10 Yr Battery
    MID Approved Class 2 : R160 / R250, R400 Options

    £317.09
    £380.51 inc VAT
  • ATLAS USM Ultrasonic  Water Meter :: DN65
    ATLAS USM Ultrasonic Water Meter :: DN65
    SKU: USM-65
    DN65 Ultrasonic Water Meter (Cold)
    2½" Flanged PN16
    CS Body
    IP65 LCD Display (Detachable with short cable)
    Q3 63 m3/hour
    10 Yr Battery
    MID Approved Class 2 : R160 / R250, R400 Options

    £362.76
    £435.31 inc VAT
  • ATLAS USM Ultrasonic  Water Meter :: DN80
    ATLAS USM Ultrasonic Water Meter :: DN80
    SKU: USM-80
    DN80 Ultrasonic Water Meter (Cold)
    3" Flanged PN16
    CS Body
    IP65 LCD Display (Detachable with short cable)
    Q3 100 m3/hour
    10 Yr Battery
    MID Approved Class 2 : R160 / R250, R400 Options

    £419.45
    £503.34 inc VAT
  • ATLAS USM Ultrasonic  Water Meter :: DN100
    ATLAS USM Ultrasonic Water Meter :: DN100
    SKU: USM-100
    DN100 Ultrasonic Water Meter (Cold)
    4" Flanged PN16
    CS Body
    IP65 LCD Display (Detachable with short cable)
    Q3 160 m3/hour
    10 Yr Battery
    MID Approved Class 2 : R160 / R250, R400 Options

    £482.44
    £578.93 inc VAT
