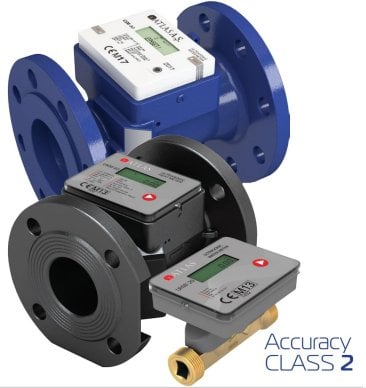

ATLAS USM Ultrasonic Water Meter :: DN50

ATLAS USM Ultrasonic Water Meter :: DN50

SKU: USM-50
DN50 Ultrasonic Water Meter (Cold)
2" Flanged PN16
CS Body
IP65 LCD Display (Detachable with short cable)
Q3 25 m3/hour
10 Yr Battery
MID Approved Class 2 : R160 / R250, R400 Options

  • Output
  • Ratio
  • £317.09
  • £380.51 inc VAT


Description

DN50 Ultrasonic Water Meter (Cold)
2" Flanged PN16
CS Body
IP65 LCD Display (Detachable with short cable)
Q3 25 m3/hour
10 Yr Battery
MID Approved Class 2 : R160 / R250, R400 Options


Superior Performance

Highly accurate ultrasonic water meter.. The USM provides a reliable and long term solution for a large variety of water measurement applications. Utilising the latest ultrasonic technology, the USM is able to measure down to extremely low flow rates, whilst providing high levels of accuracy.

Key features of the USM Include -

⊃ Installation in any position
⊃ No air measuring
⊃ Indifferent to sand and particles in the flow
⊃ Bi-Directional flow measurement
⊃ 10 year battery life
⊃ R400 (Standard R160 with other options)
⊃ Options: Pulse, M-Bus, wM-Bus, LoraWAN
⊃ Onboard storage of consumption history (Past 12 Months)
⊃ Easy to Navigate LCD Menu



Specification



Downloads
