Insertion Mag Flow Meter

A range of Insertion Mag Flow meters designed for the measurement of conductive fluids in large bore pipes DN100 - DN900mm Diameter.

Insertion Magnetic flow meters offer a low cost alternative to full-bore flow devices which can take up a lot of space, involve large amounts of effort to install and present particular difficulties when it comes to service or calibration.

The SERIES IEF Insertion Electromagnetic Flow Transmitter is an adjustable insertion flowmeter featuring electromagnetic technology that accurately and reliably measuresfluid velocity in addition to providing several continuous signal outputs. This series is specifically designed to offer superior performance paired with simple installation and use. One unit is adjustable to fit pipe sizes from 4 to 36˝ (102 to 914 mm), and offers several output options including selectable BACnet MS/TP or Modbus® RTU communications protocol over 2-wire RS-485 in addition to the standard analog, frequency and alarm outputs.

Items: 11 of 1
Drop items here to shop
Product has been added
  • Insertion Electromagnetic Flow Meter

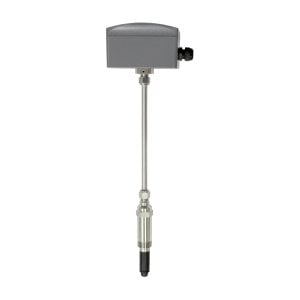

    Insertion Electromagnetic Flow Meter
    SKU: IEF

    Adjustable Insertion electromagnetic flow Meter

    Suitable for 4" to 36" (102 - 914mm) pipe sizes
    Velocity Range: 0-6 m/s (0 - 20 ft/s)
    Accuracy: ± 1% FS or ± 1% OR (± 0.5% at calibrated velocity)
    Process Connection: 1" NPT or BSPT (Ball valve options)
    Process Temperature: 121ºC Max
    Analogue and digital outputs
    Optional LCD display
    Optional Communciation outputs
    $3562.50
    $4275.00 inc VAT
