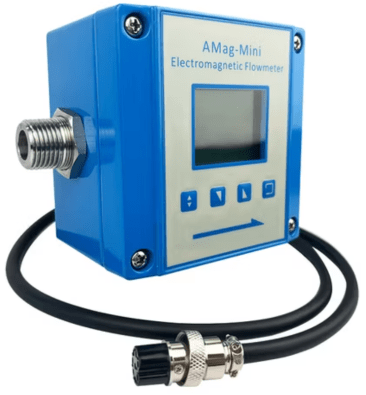

Mini Electromagnetic Flow Meter DN6
SKU: MMF-6Mini Electromagnetic Flow Meter DN6
30 - 400 L/Hr
Accuracy +/- 0.5% O.R (0.3 ~ 10 m/sec)
Stainless Steel or PVDF Connections, Peek Liner
Choice of Electrode material
Local LCD: Rate / Total / Master Total / Temperature
4-20mA output, Pulse Output and Modbus RS485
Supply: 24VDC ±20%
Description
Mini Electromagnetic Flow Meter DN6
Ideal for low flow measurement of conductive liquids which are corrosive or have some solids content
30 - 400 L/Hr (Suitable for Liquid Conductivity ≥10μS/cm, softened water 20μS/cm)
Accuracy +/- 0.5% O.R (0.3 ~ 10 m/sec)
Aluminium Enclosure
Stainless Steel or PVDF Connections, Peek Liner (Ceramic option)
Choice of Electrode material: 316SS, Titanium, Tantalum, Hastalloy C
Max Operating Temp: -10℃ ~ 60℃
(Features a built in PT1000 temperature sensor; 0.1°F resolution)
Max Working Pressure 16 Bar

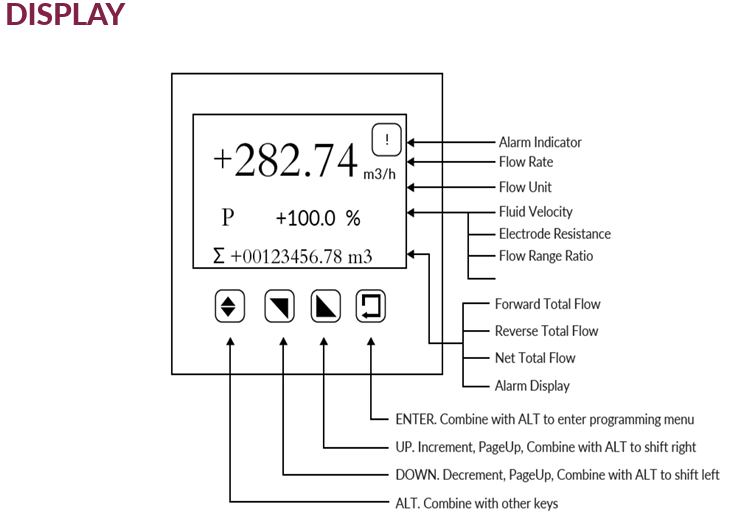

Local LCD: Rate / Total / Master Total / Temperature

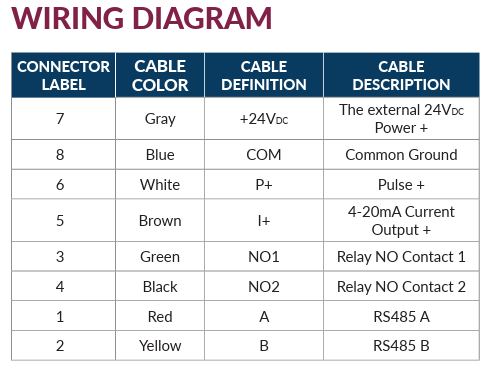

4-20mA output, Pulse Output and Modbus RS485
0-5KHz pulse and optional 2A Alarm relay outputs
Supply: 24VDC ±20%
Ingress rating: IP65
Dimension(H×W×D) 150*100*70 (mm)
Specification
Mini Electromagnetic Flow Meter DN6
Ideal for low flow measurement of conductive liquids which are corrosive or have some solids content
30 - 400 L/Hr (Suitable for Liquid Conductivity ≥10μS/cm, softened water 20μS/cm)
Accuracy +/- 0.5% O.R (0.3 ~ 10 m/sec)
Aluminium Enclosure
Stainless Steel or PVDF Connections, Peek Liner (Ceramic option)
Choice of Electrode material: 316SS, Titanium, Tantalum, Hastalloy C
Max Operating Temp: -10℃ ~ 60℃
(Features a built in PT1000 temperature sensor; 0.1°F resolution)
Max Working Pressure 16 Bar
Local LCD: Rate / Total / Master Total / Temperature
4-20mA output, Pulse Output and Modbus RS485
0-5KHz pulse and optional 2A Alarm relay outputs
Supply: 24VDC ±20%
Ingress rating: IP65
Dimension(H×W×D) 150*100*70 (mm)
